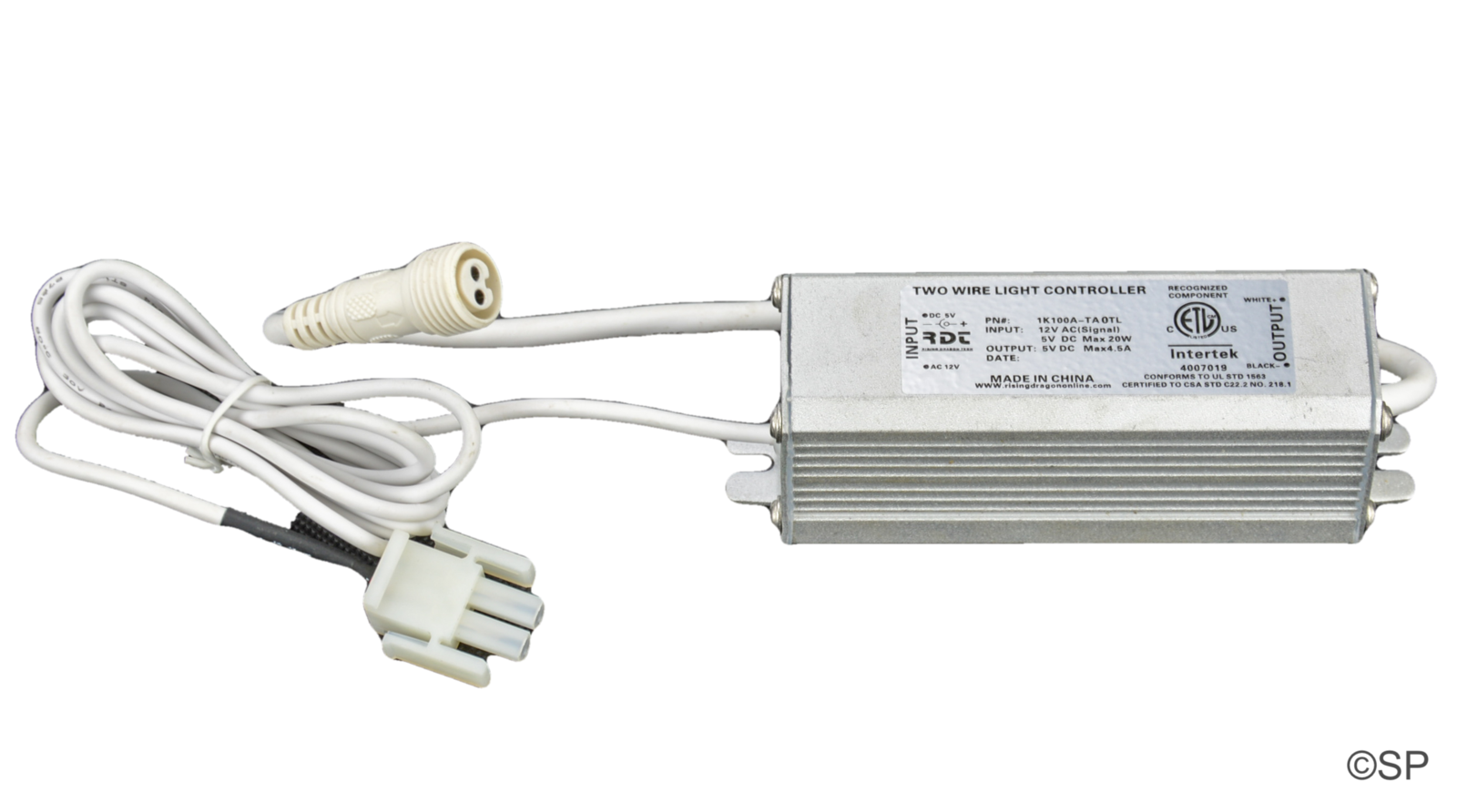

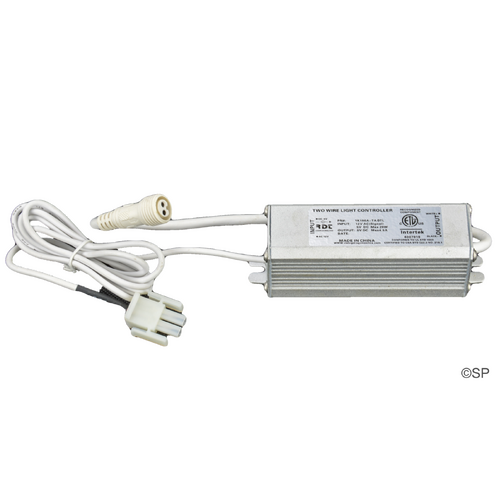

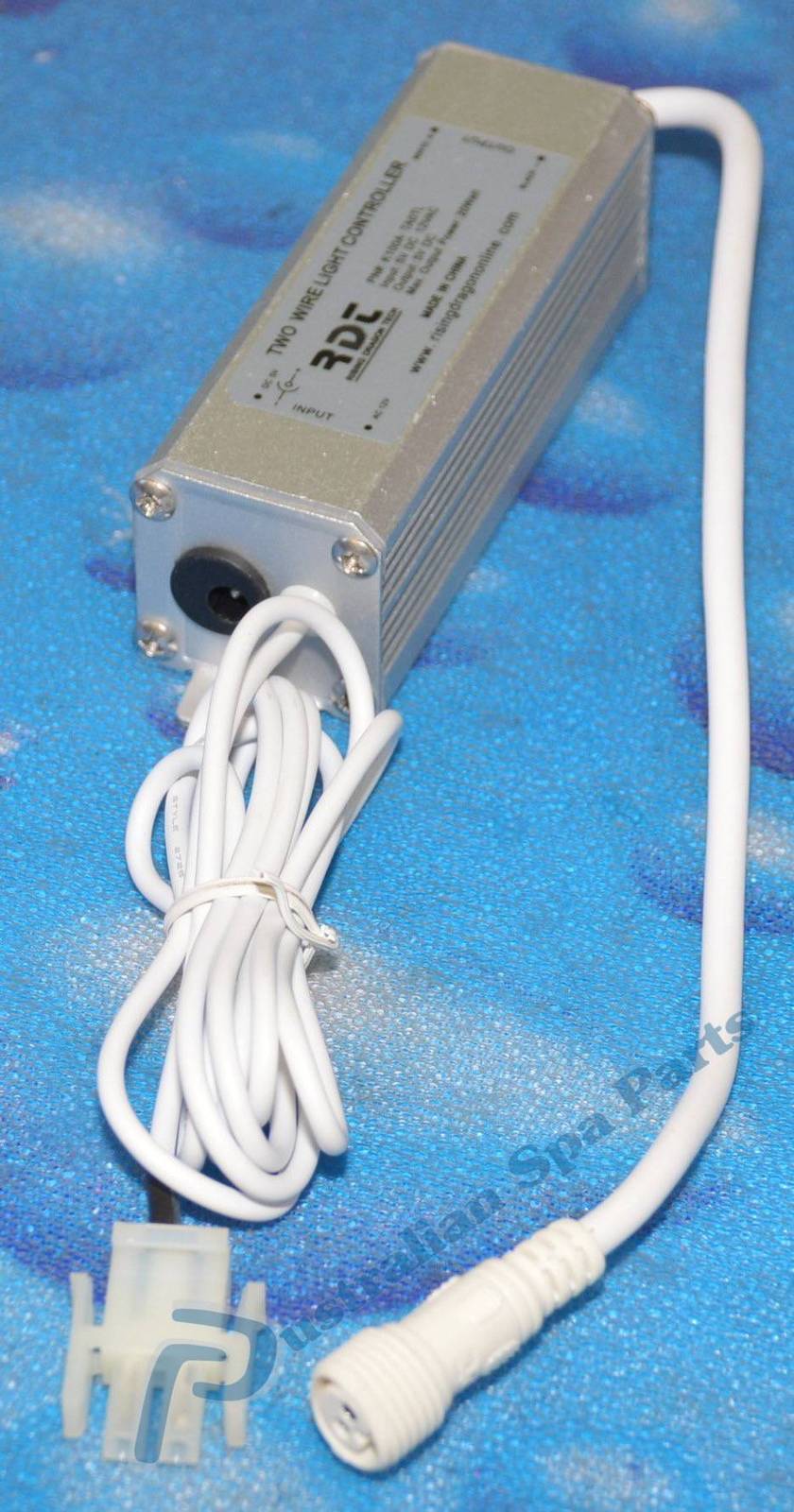

Rising Dragon Pinnacle 2 wire string lighting Controller - 100 POL

Rising Dragon pinnacle Lighting system 100 POL controller
Pinnacle 2 wire lighting bus wire plugs into this unit to power Pinnacle 2 wire lighting systems up to 100 points of light.

Requires a RD22000-52510 5vDC power supply input PLUS 12v AC input from the spa controllers light output.
5v Output to LED lamps.
Specifications:
100 LED's maximum
Power in:
12v AC from spa pack light output.
5v Dc from required separately available power supply (this allows the ability to run 100 LED's of the spa control system)
Power Out:
5v DC to LED's
Maximum power out = 20w
