Waterway 10" RETROFIT Ultra Retro Suction Drain - Repair Replacement

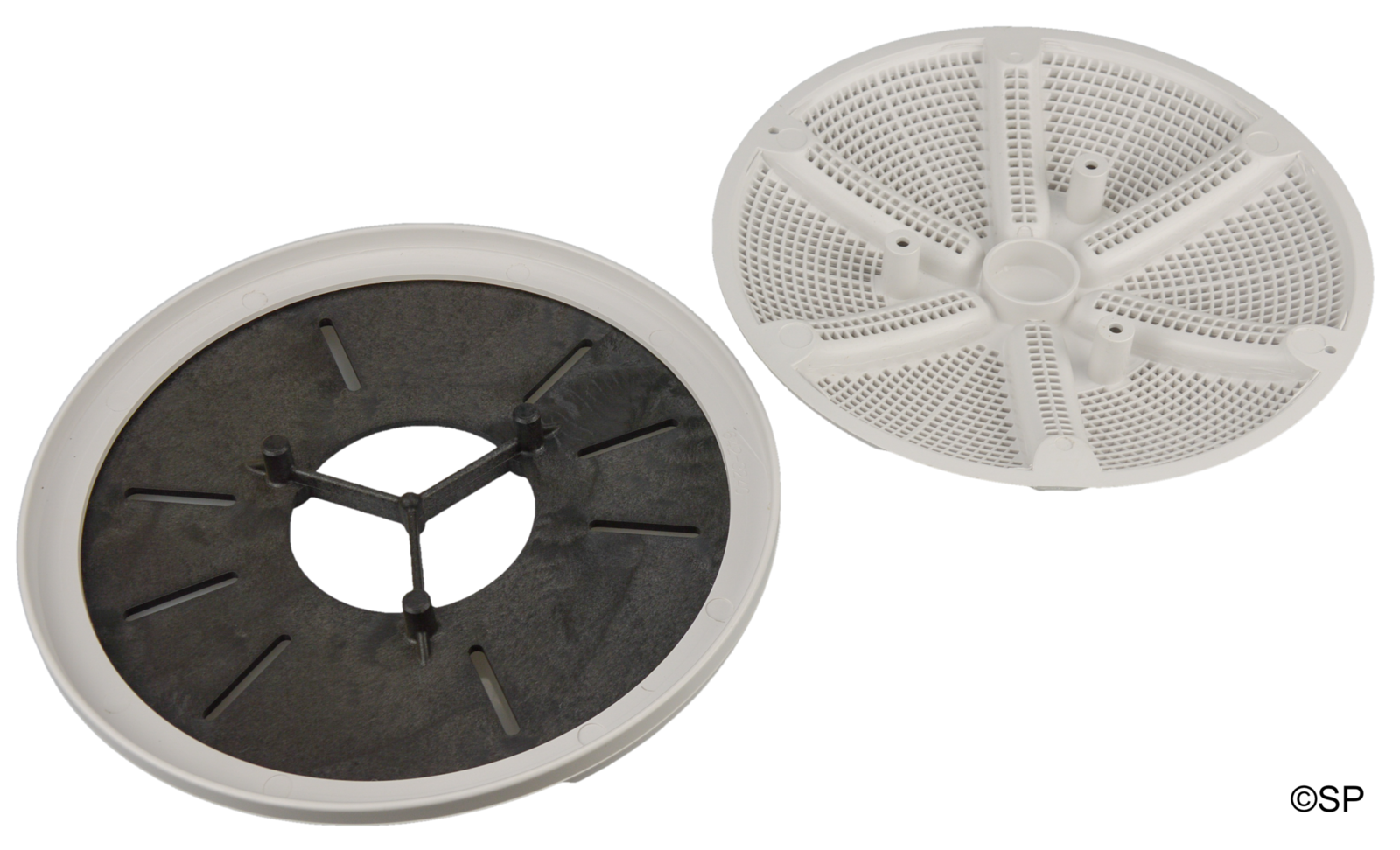

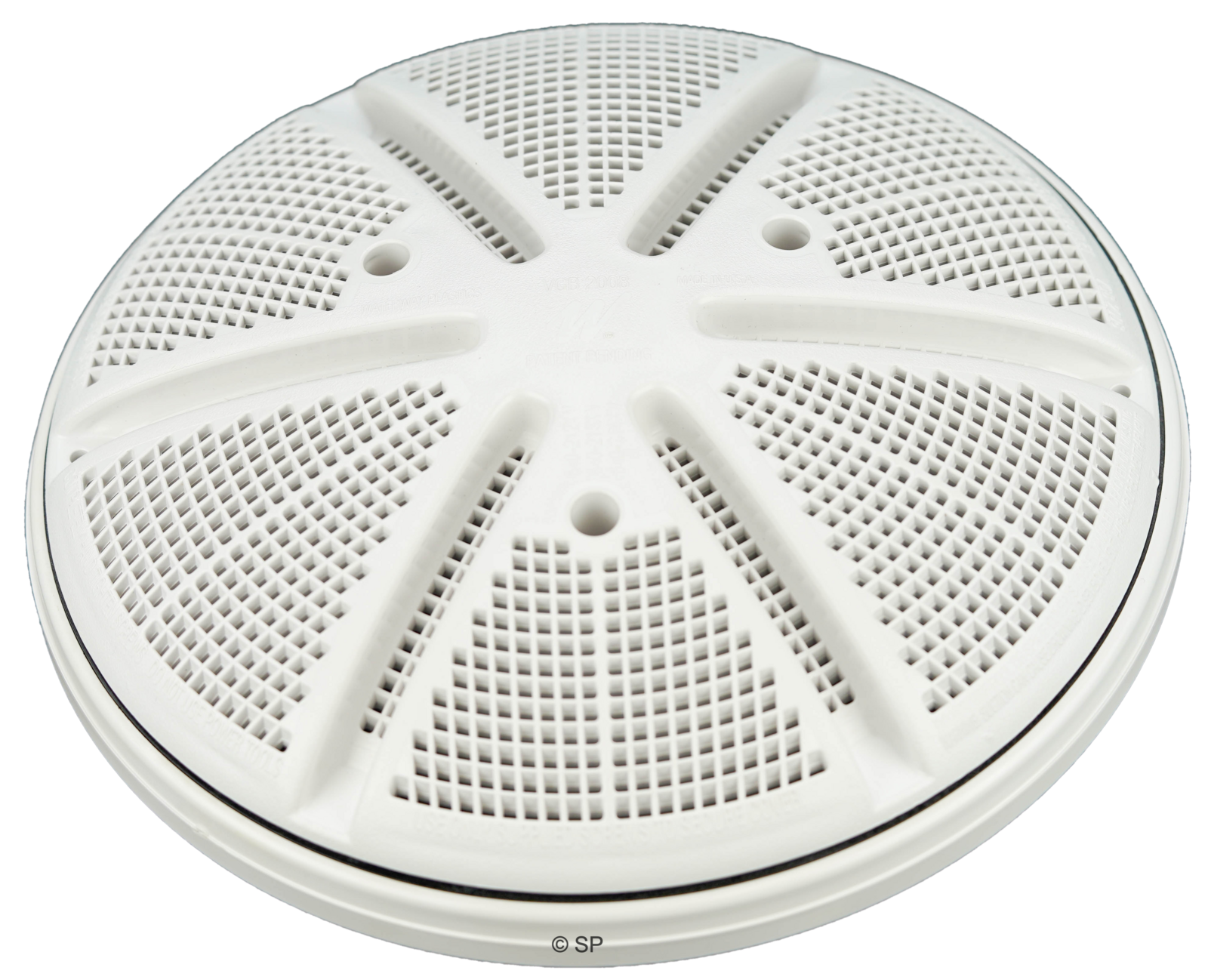

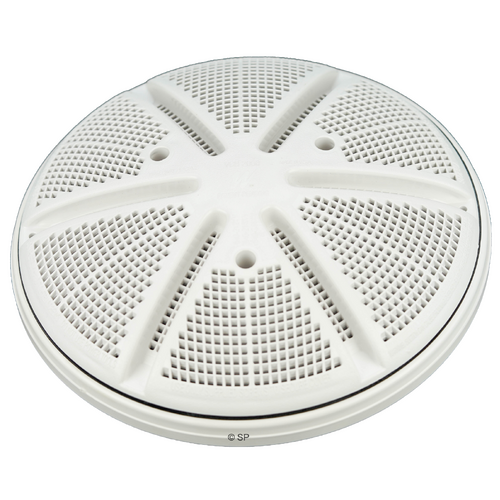

Waterway 10" tru flo drain RETROFIT SUCTION / DRAIN COVER ASSEMBLY
Suitable for concrete swimming pool installation where a field built sump / drain setup is used.
Can be used to replace old or broken suction fittings. May fit over the top of an existing suction body flange up to 90mm diameter.
Suitable as a retrofit replacement over any existing suction body on any surface - concrete, vinyl lined, fibreglass, acrylic.
Simply screws to any flat surface

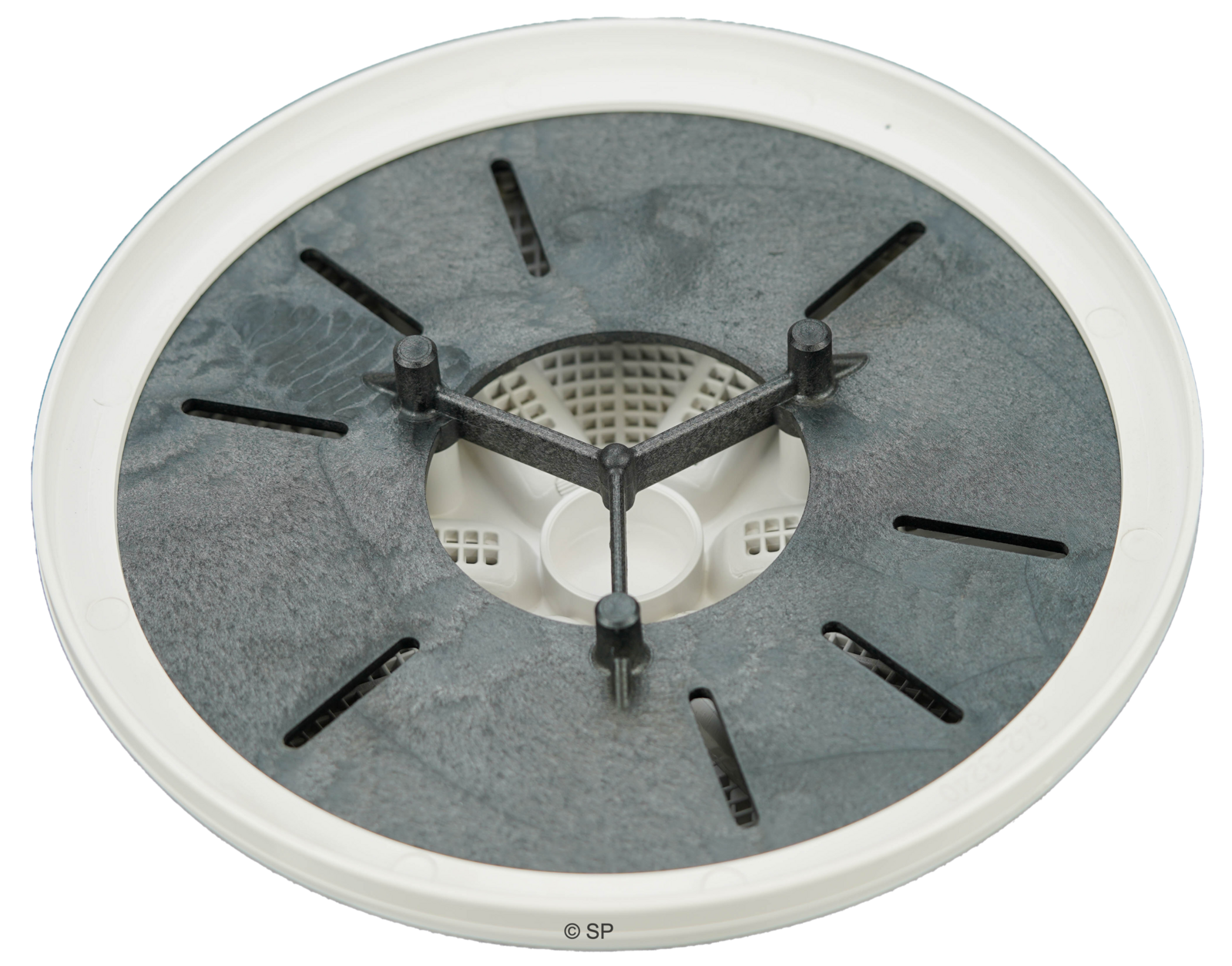

Frame adaptor screwed to spa / pool wall or floor over sump.
265mm diameter, 50mm profile off wall/floor at centre of the cover.
4 x screws for cover fixing are security screws - tool included

The Waterway Tru Flo drain cover / frame are fully tested and approved to Australian Standards.
MASSIVE Flow rates - wall mounted 192 gpm / 726 lpm, floor mounted 224 gpm / 847 lpm
Included instructions. Ensure pump / suction/drains are correctly flow matched for your installation
