Balboa GS100 2kw Heater Element / Tube Assy replacement - 2" x 15" - DISCONTINUED

DISCONTINUED

Replacement options:
1. Replace element only with a 2.0kw element
2. Replace with 1.5" plumbed heater assembly and replumb to suit
3. Replace with 2" 3.0kw heater provided the power supply to the spa is sufficient/upgraded to suit

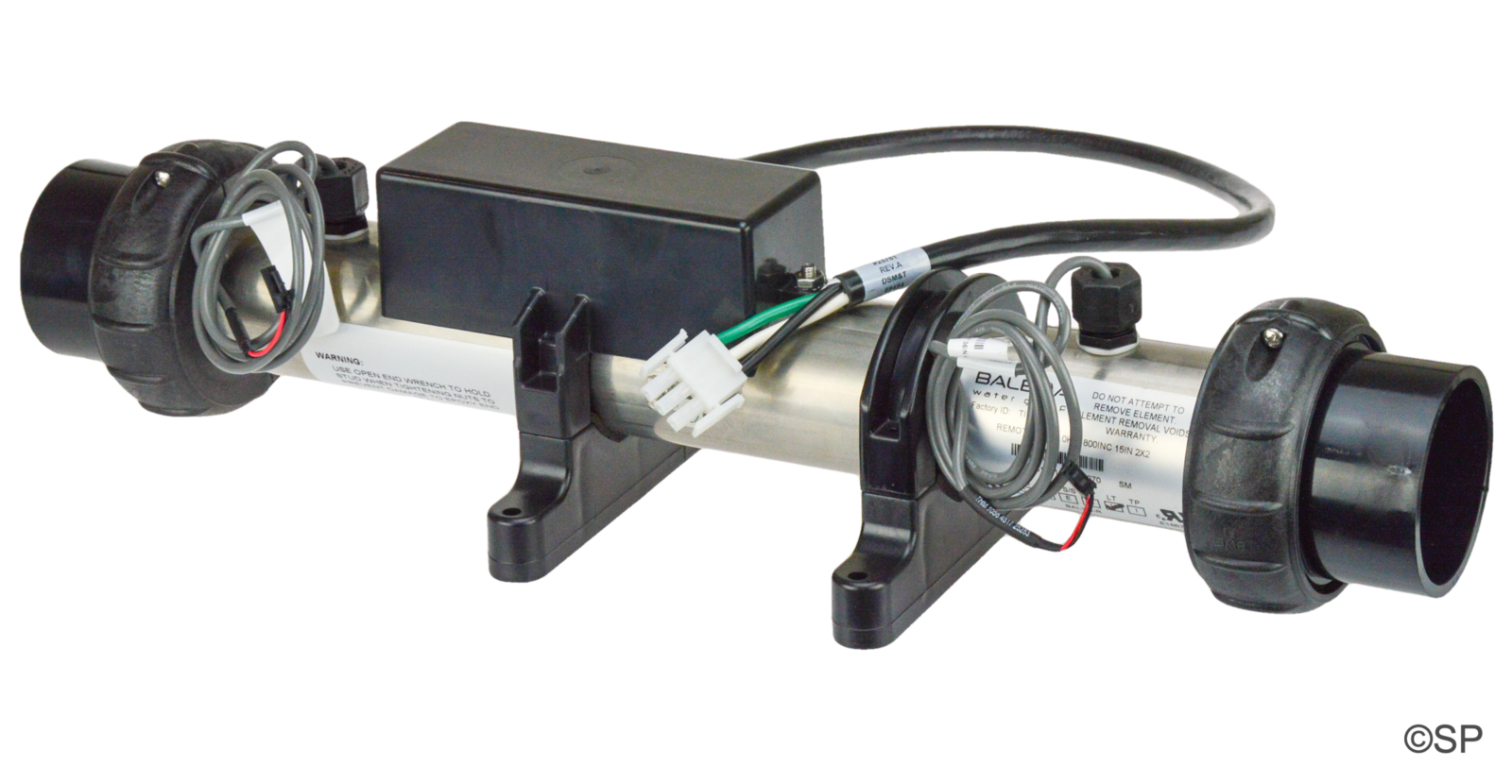

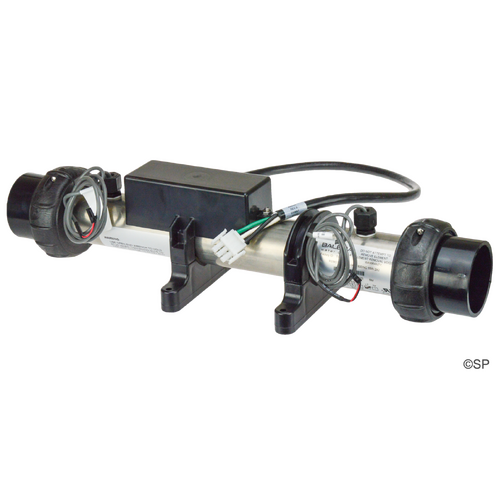

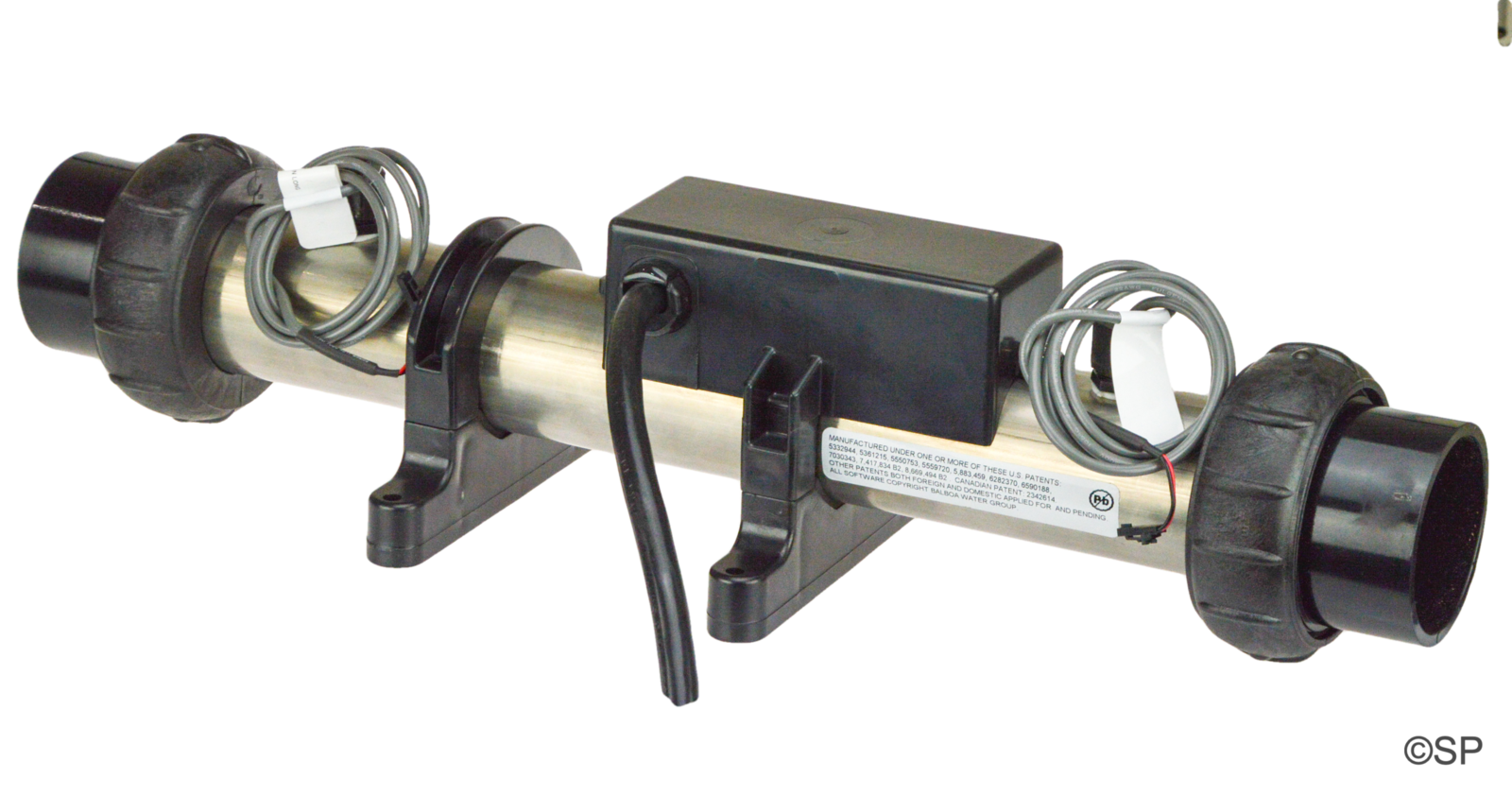

Balboa Water Group heater assembly with 2.0kw incoloy element and 2" x 15" long SS heater tube,
2 x m7 temperature sensors

Used on Balboa GS100 spa control systems

NB If your symptoms are 'Not Heating', do not purchase this heater until your electrician has confirmed there is no other fault - GS100 circuit board heater relay issues are common and will also cause this symptom if the heat LED is illuminated under the 'Cool' button, as will programming the system to Economy mode (heat light will be off).
Generally a faulty heater will cause the power to trip out.

No electrical/electronic partts can be returned, so please ensure you are ordering correctly or seek advise prior.

This 2" heater tube is the same diameter and length as traditional Balboa heater tubes but the replacement tubes used in other GS series controllers do not suit this unit due to eclosure mounting screw requirements..
The removable element is bolted into the heater tube.

12 month warranty
