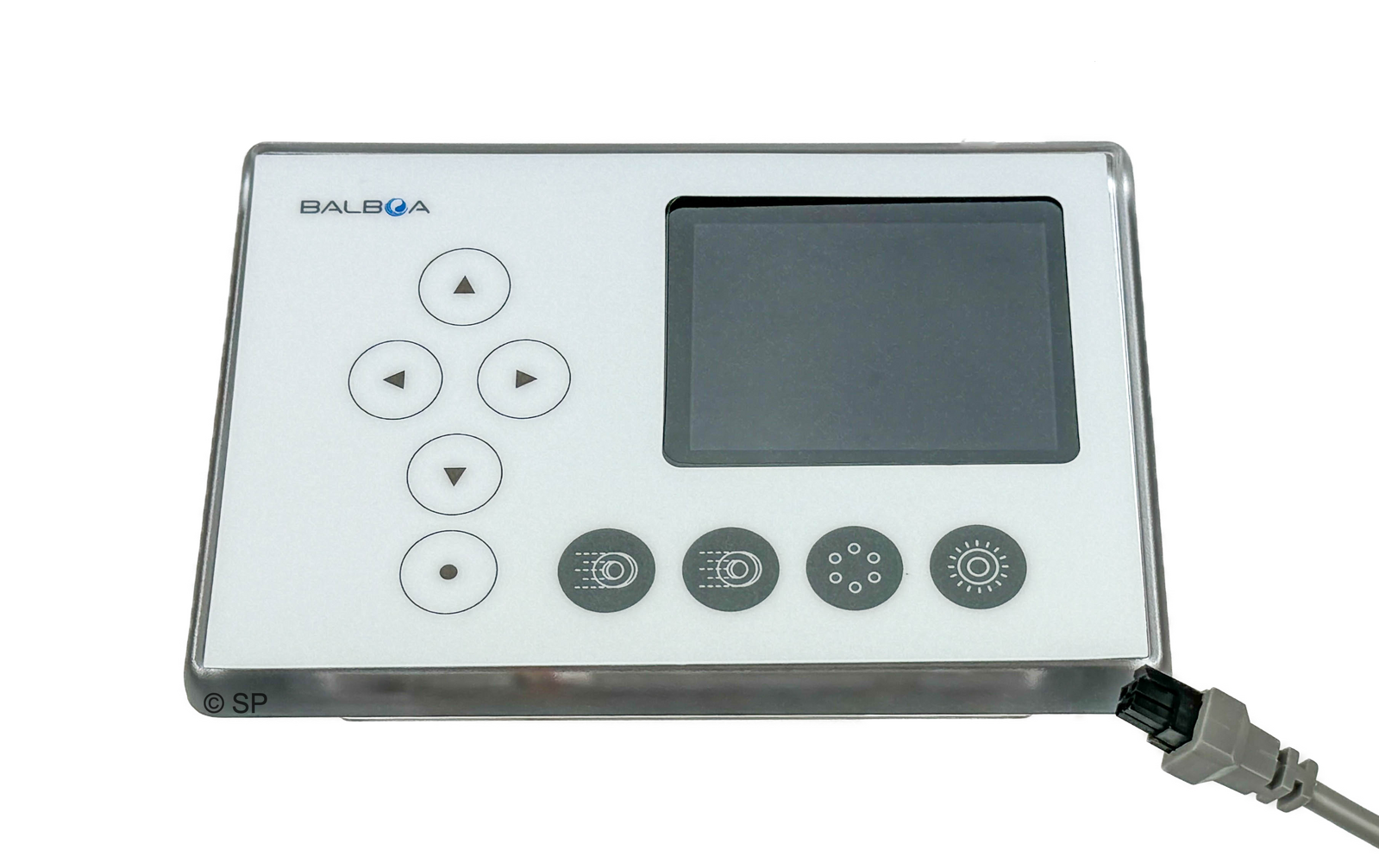

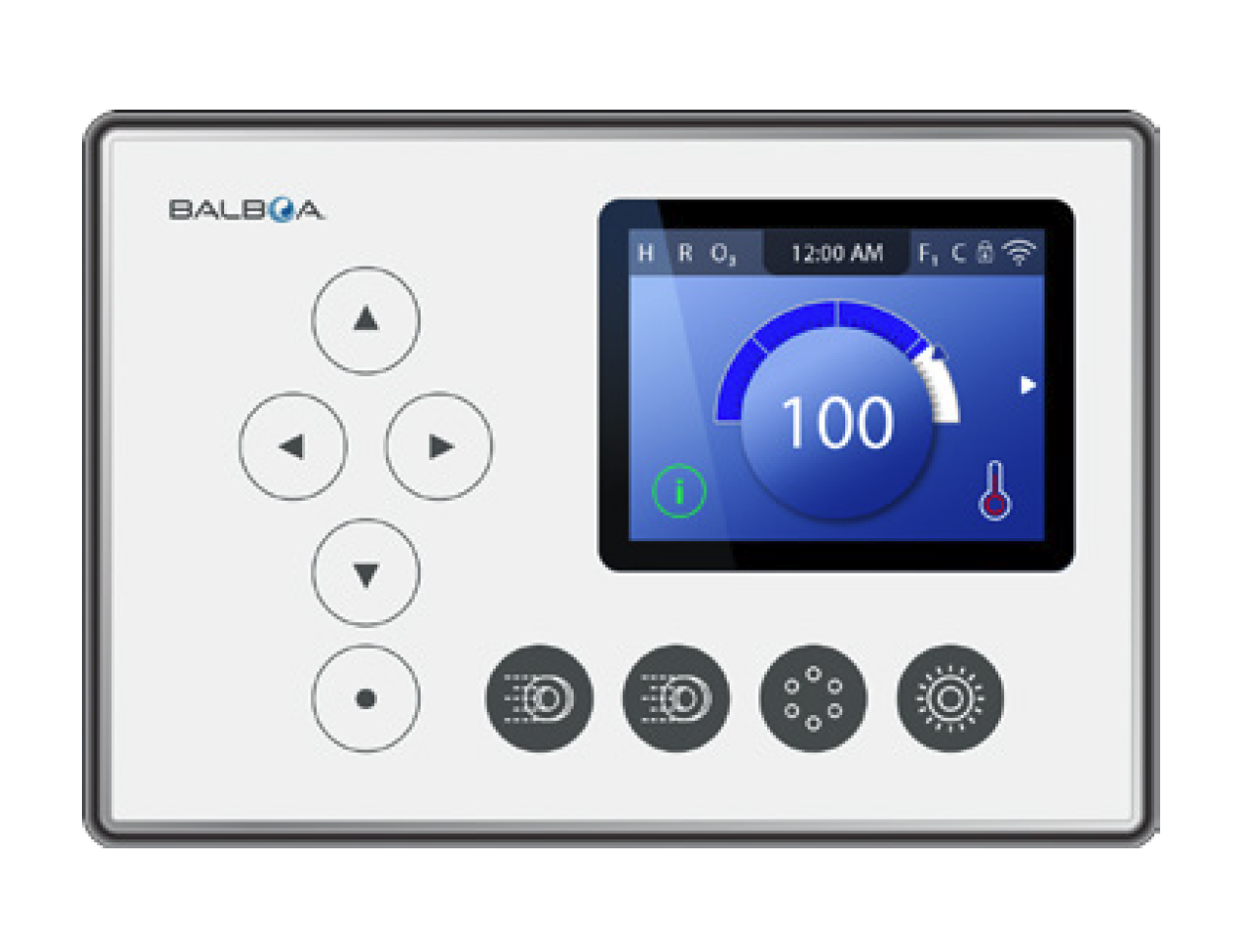

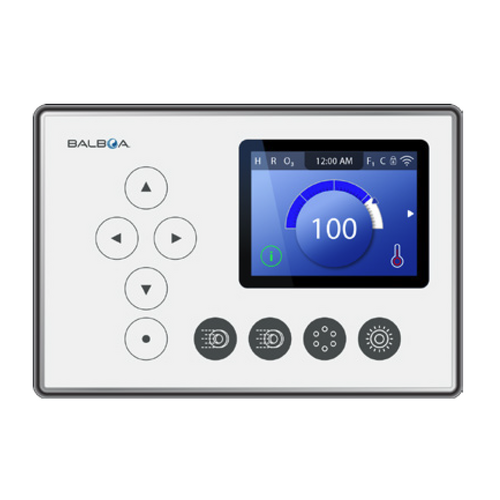

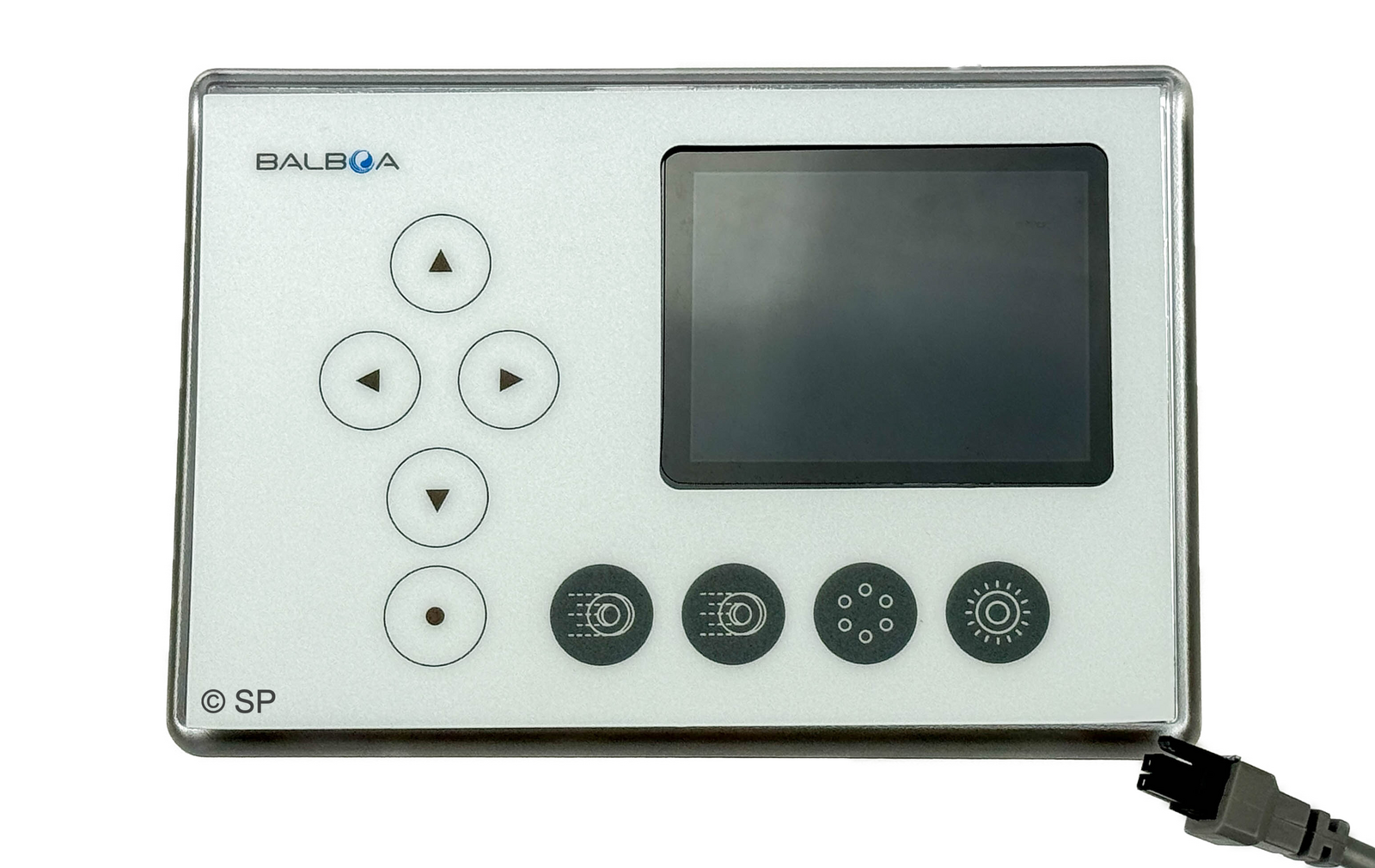

Balboa TP740T Touchpad - 9 Button

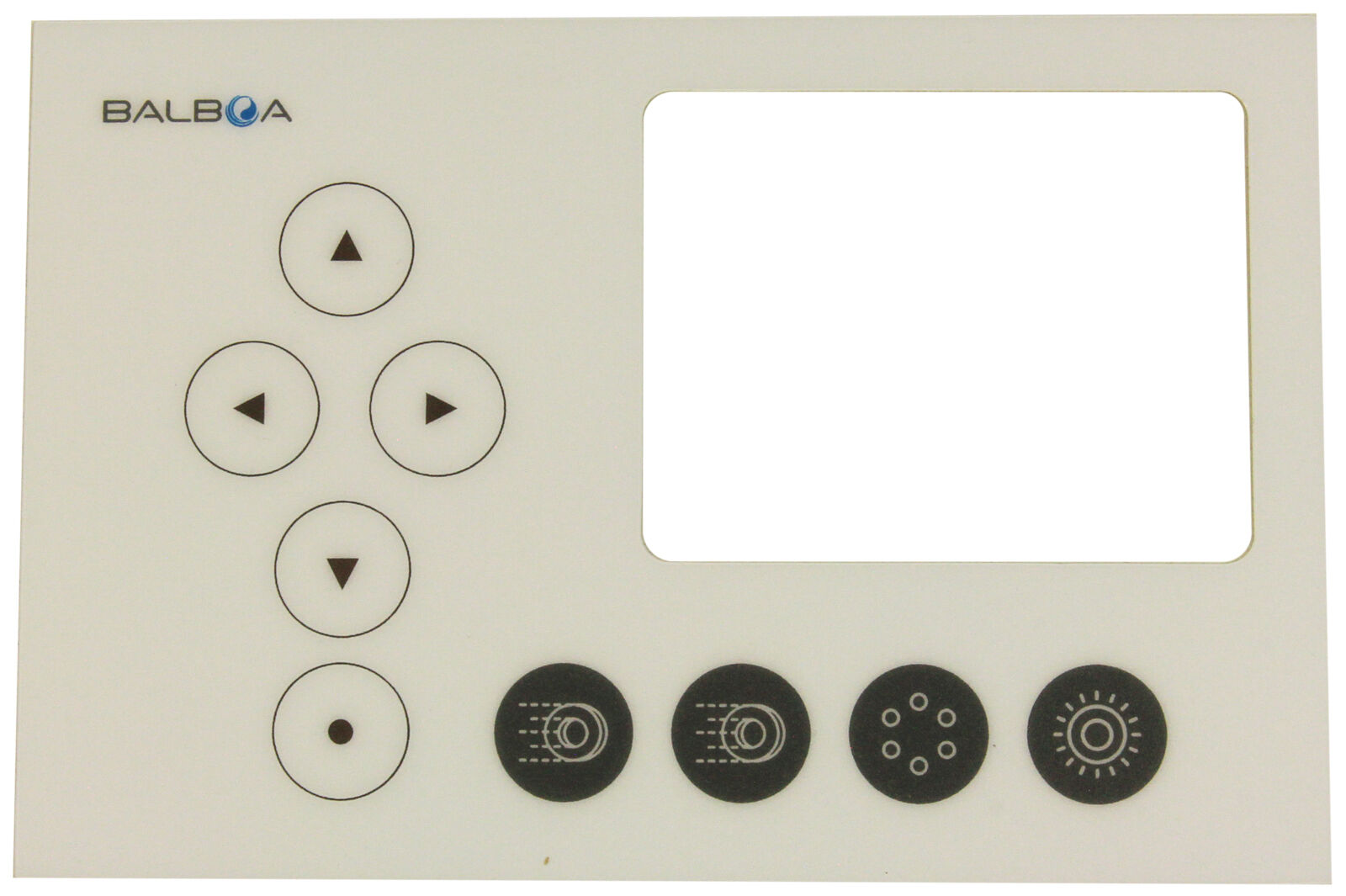

Balboa TP740 touchpad with decal

This touchpad can replace many of the Spatouch touchscreen range of touchpads if you'd prefer physical button operation over touchscreen, or to replace Spatouch incorrectly installed within the spa moisturezone

On the left: 5 x Navigation keys
On the right: Jets 1, Jets 2, Aux, Light (extra pumps etc can be controlled by navigating the 'Spa' screen)

For use with Balboa BP series spa packs

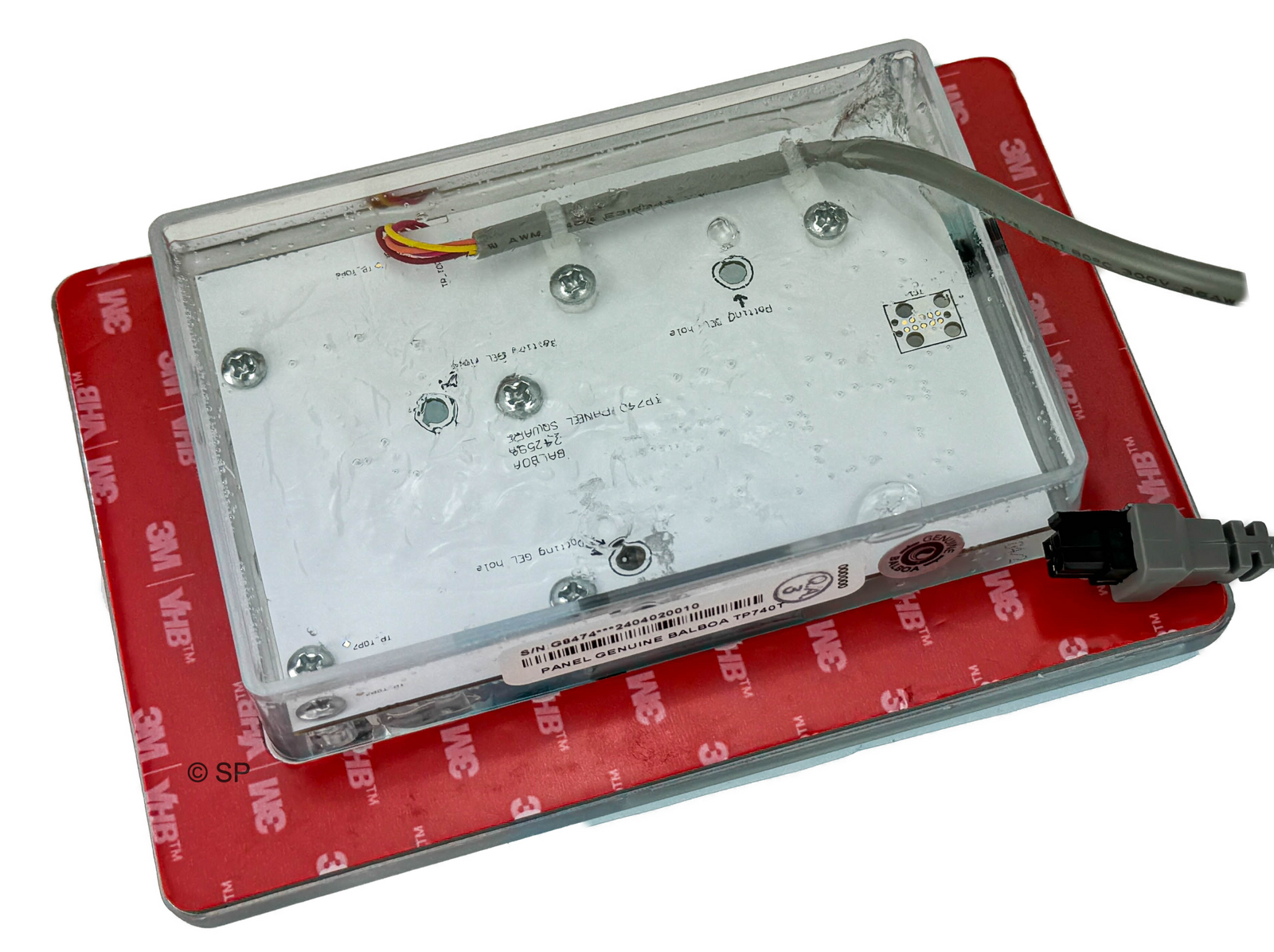

4 pin Molex plug.
151mm x 104mm
Hole required 116mm x 78mm

Designed to replace Spatouch touch screen topside panels, particularly where placed in spa moisture zones.

Top of touchpad is 12mm thick.
