Edgetec Flexi-Flange Spa & Spa Bath Suction 192 lpm rated - Grey

$10.00
In Stock

3 In Stock

SKU:
e1300-gr
Brand:
Shipping:
Calculated at checkout


Product Description

Edgetec suction Australian approved flow rate of 192lpm

NB these same suctions were originally rated much higher and used in portable spas with 2-3hp pumps. It is NOT acceptable/legal to replace this suction fitting in such an installation. An alternate correct rated suction must be used.
They can be used for:
Any spa bath,
Any portable spa with a flow rate max of 192 lpm (1hp pump maximum)


100mm diameter cover.
Female threaded wall fitting - suits Edgetec suction body only - sold separately.

White has been discontinued - Grey or chrome only.

See images for removal of cover.

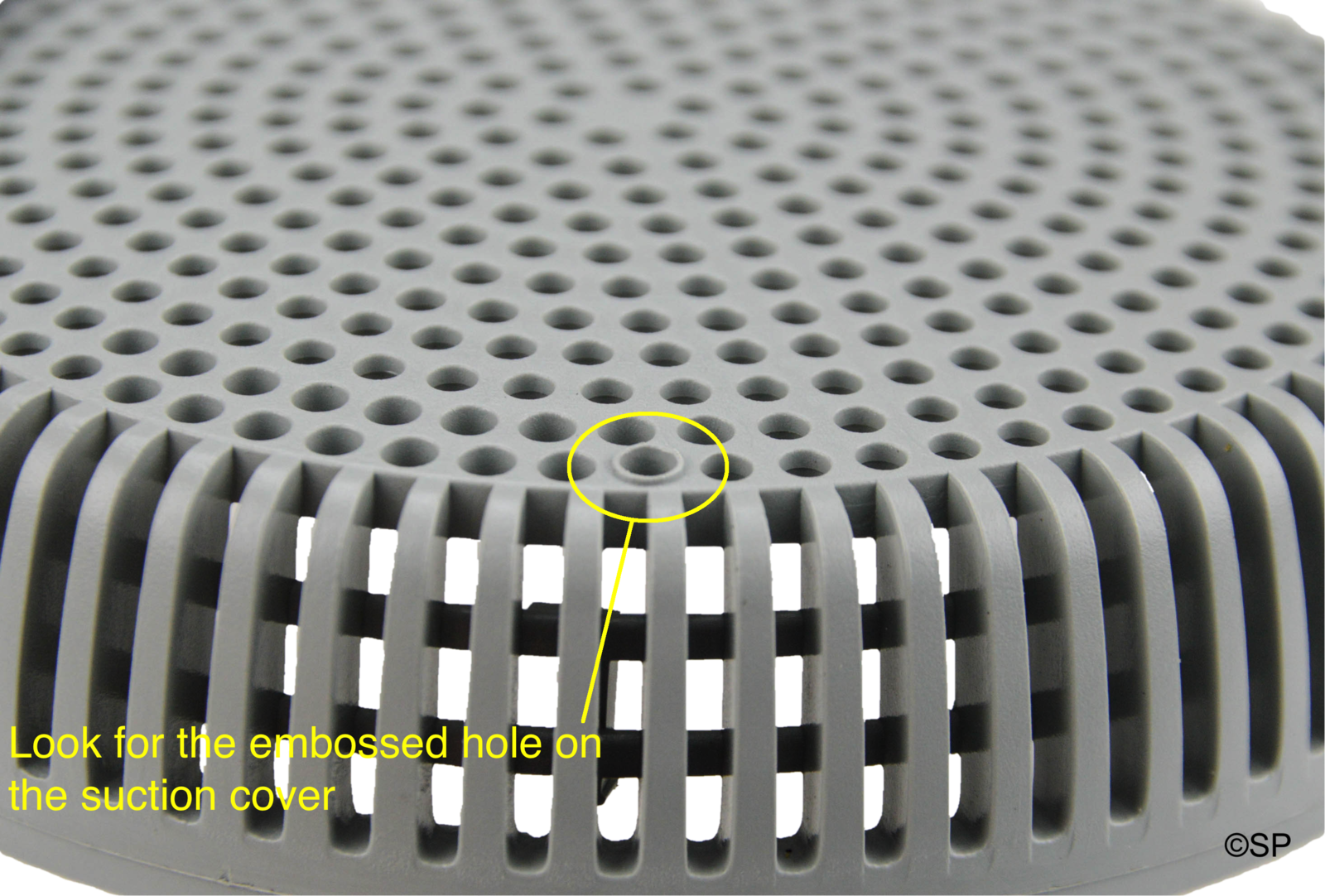

There is a raised/embossed hole in the outer ring of the cover that you can easily detect with your finger.

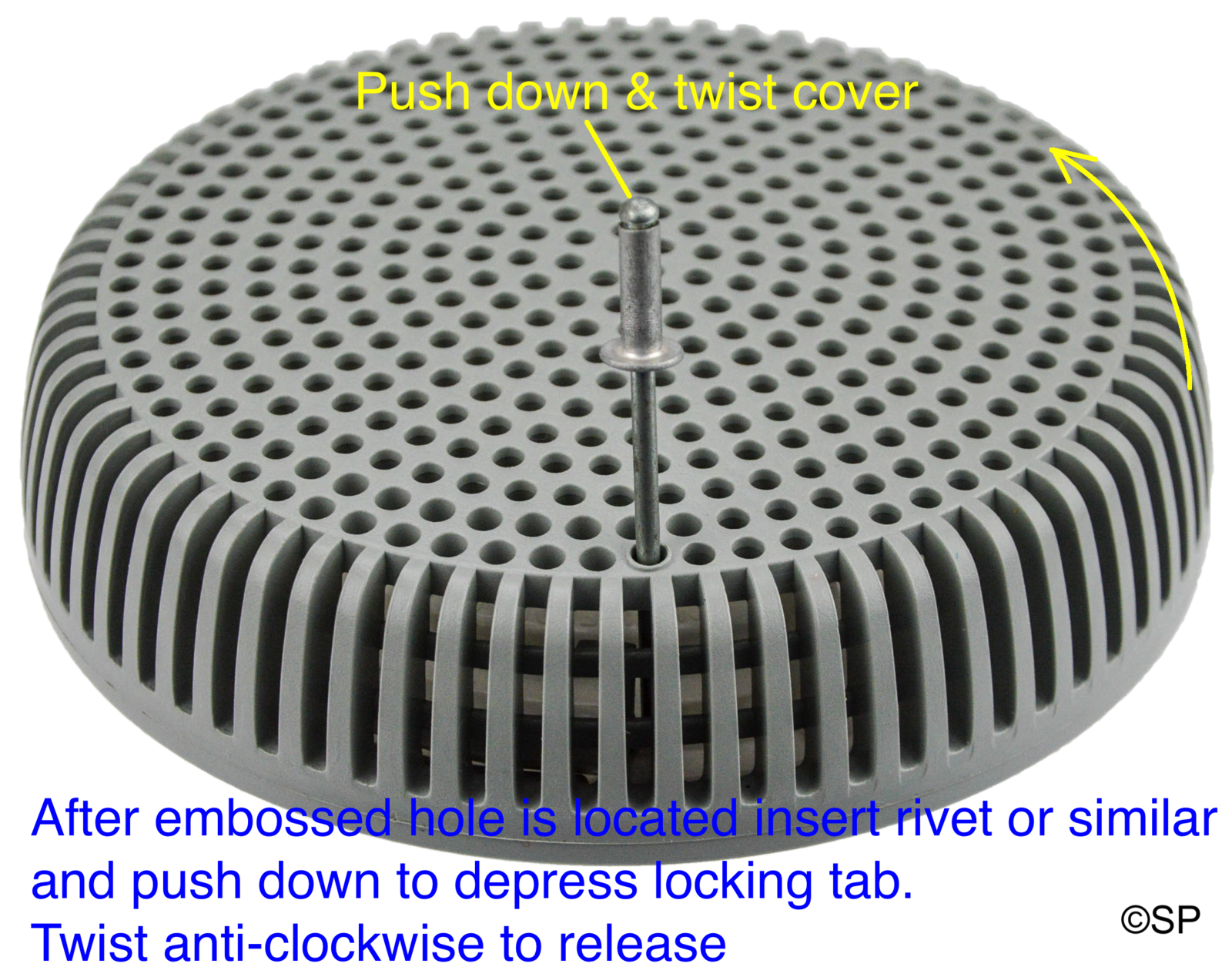

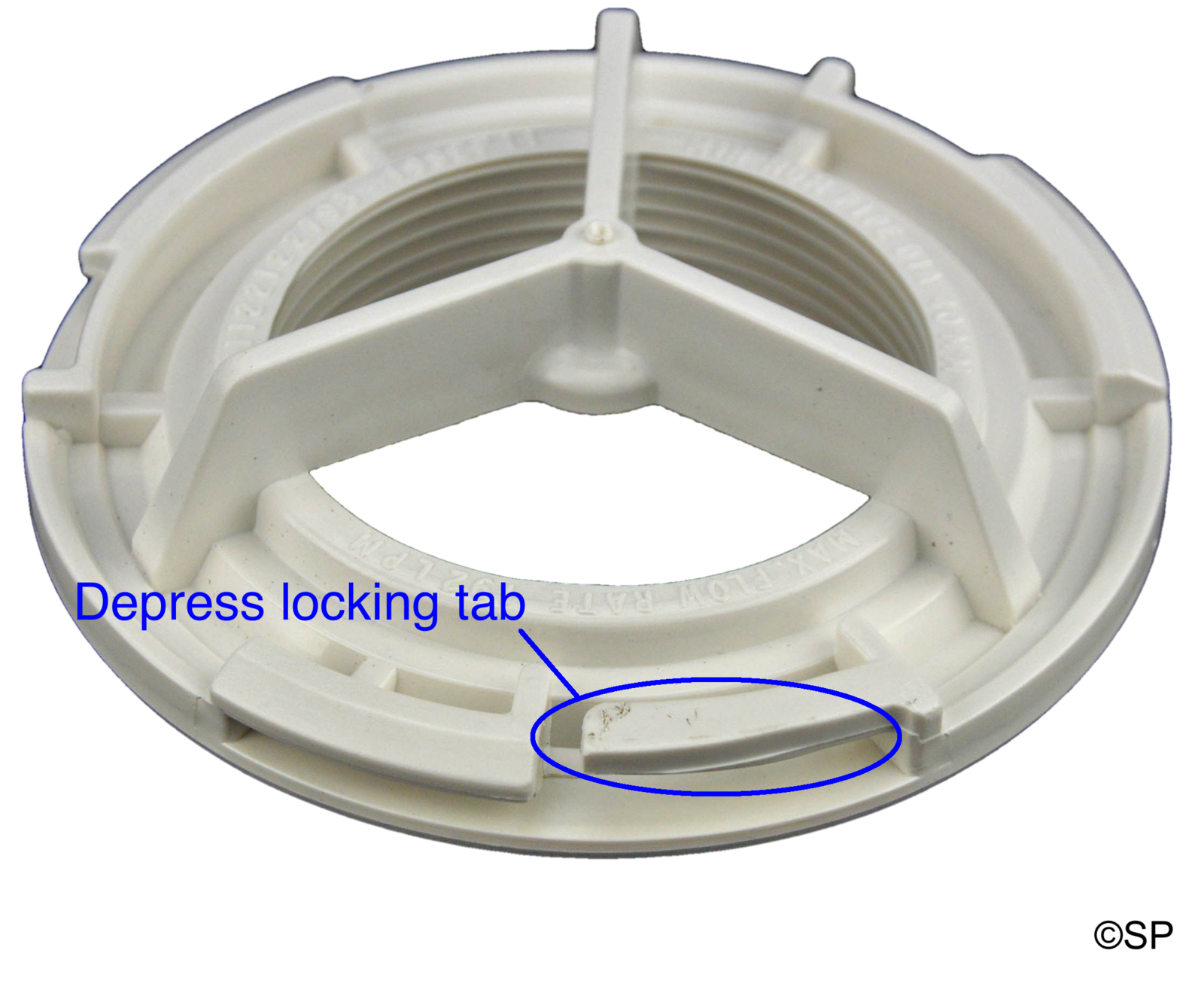

once identified, insert a thin 'tool' such as a pop rivet or nail through the embossed hole and push down to depress the locking lever.
At the same time rotate the cover 1/8 turn anti-clockwise. Then pull cover away from the fitting.
Installation is a reversal except there is no need to use the rivet. Ensure the locking lever engages and the cover cannot be unscrewed without aid of a tool.
