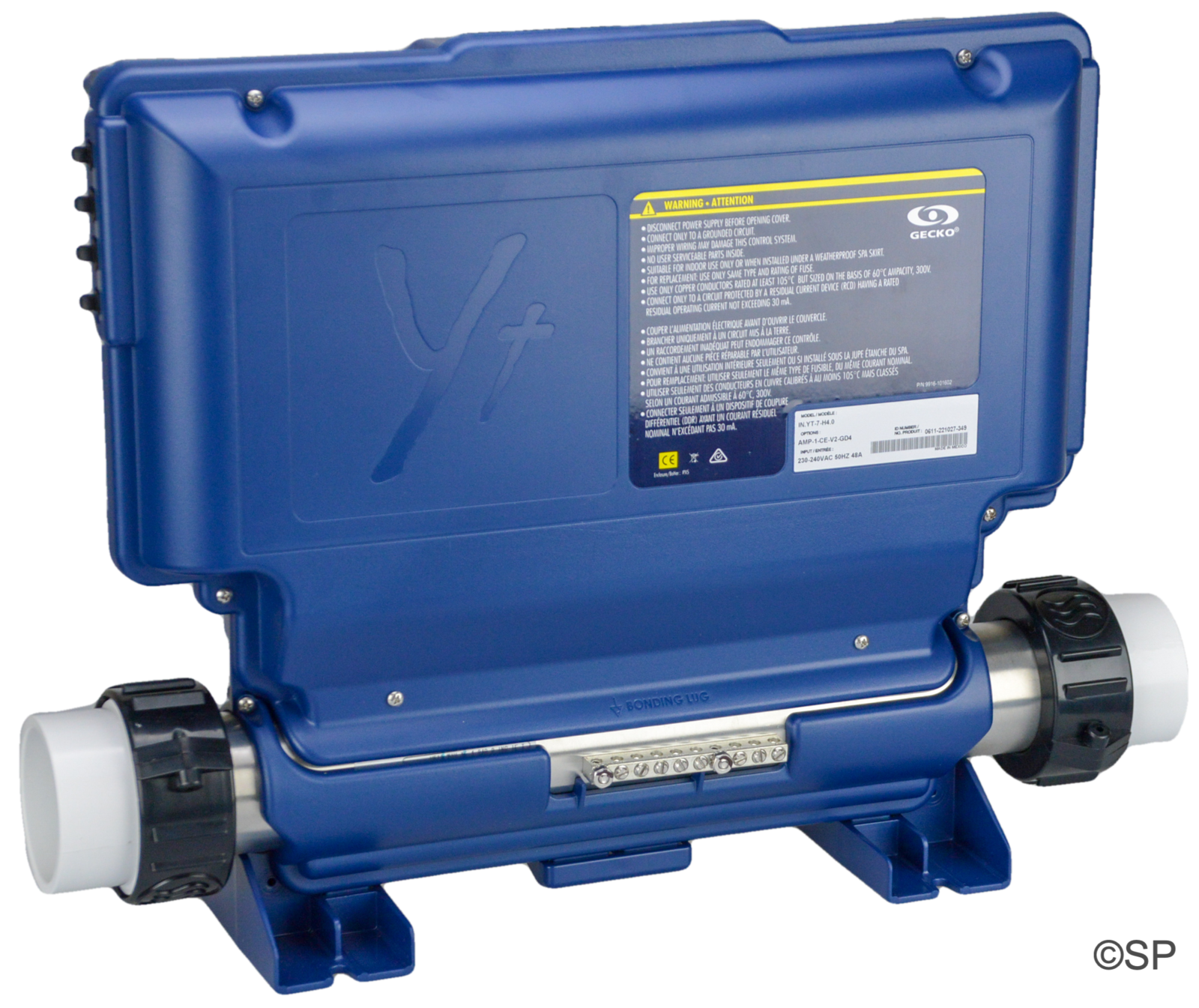

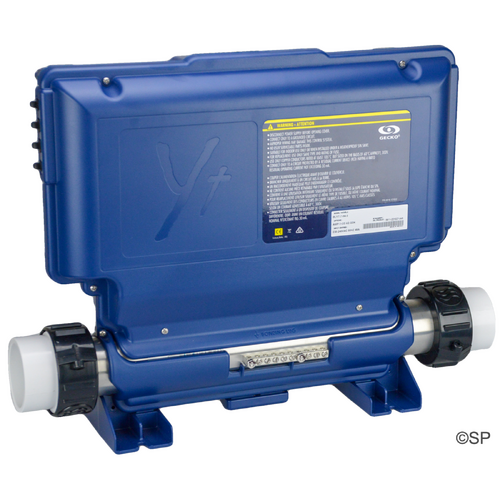

Gecko Aeware in.yt-7 Spa Control Pack - 4.0kw heater

$2,126.30
In Stock

4 In Stock

SKU:
aeware0611-221027
Brand:
Shipping:
Calculated at checkout


Product Description

Replacement Gecko Aeware in.yt-7 spa pack only (no touchpad)

Up to 7 outputs

Aeware's newest controller built on the same platform as the in.xe series controllers, however this model uses the industry popular AMP plug style connections - making it a perfect replacement for Balboa spa packs without the need to rewire pumps and equipment (for those models being replaced, fitted with AMP cords) or replumbing.

Universal spa control system - 1, 2, 3 or 4-5* pumps plus circulation pump, blower, ozone and light - many combinations possible

4.0kw heater
Gecko Aeware in.yt-7-H4.0 by Gecko Electronics 7 outputs - can accomodate a combination of 7 of the following - 4 pumps, blower, circ pump, ozone, light, aux/audio Output 1 = Pump, output 2 = Pump or Blower, output 3 = Blower or Circulation Pump, output 4 = Ozone, output 5 = 230v supply for Audio system, etc. or 24hr circ pump
4.0kw in-line heater 15" long x 2" stainless steel tube, complete with unions.
Utilises AMP cables to connect to equipment - Pump 1, Pump 2, Pump 3, Blower, Ozone, Circ Pump NOT INCLUDED.
All inputs and outputs are plugged directly into the sockets to the side of the circuit boards.
Pumps etc can also be direct wired to the circuit board relays and terminals with female spade connectors.
Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.) 230v, 50Hz, 20A - 40A max single phase, or 415v, 50Hz, 20A max two phase. 415v, 50Hz, 16A max three phase.

420mm wide x 370mm high x 115mm deep.

** Please note - overmoulded AMP plugs used with Spaquip/Davey and SpaNet controllers CANNOT be used with Aeware in.y series spa packs as there is insufficent space that is needed with the overmoulding. In those cases the plugs/cords need to be changed to the single insulated USA style AMP plug/cord or 6.3mm spade terminated cables**
* When used with 5 jet pumps and a circulation pump, all pumps must be single speed. Maximum pump current draw for Pump 1, Ozone, Circ pump and direct socket combined is 15A, Pump 2 & 3/blower combined is 20A
Pump 4 15A

Maximum current draw of any individual pump is 15A
