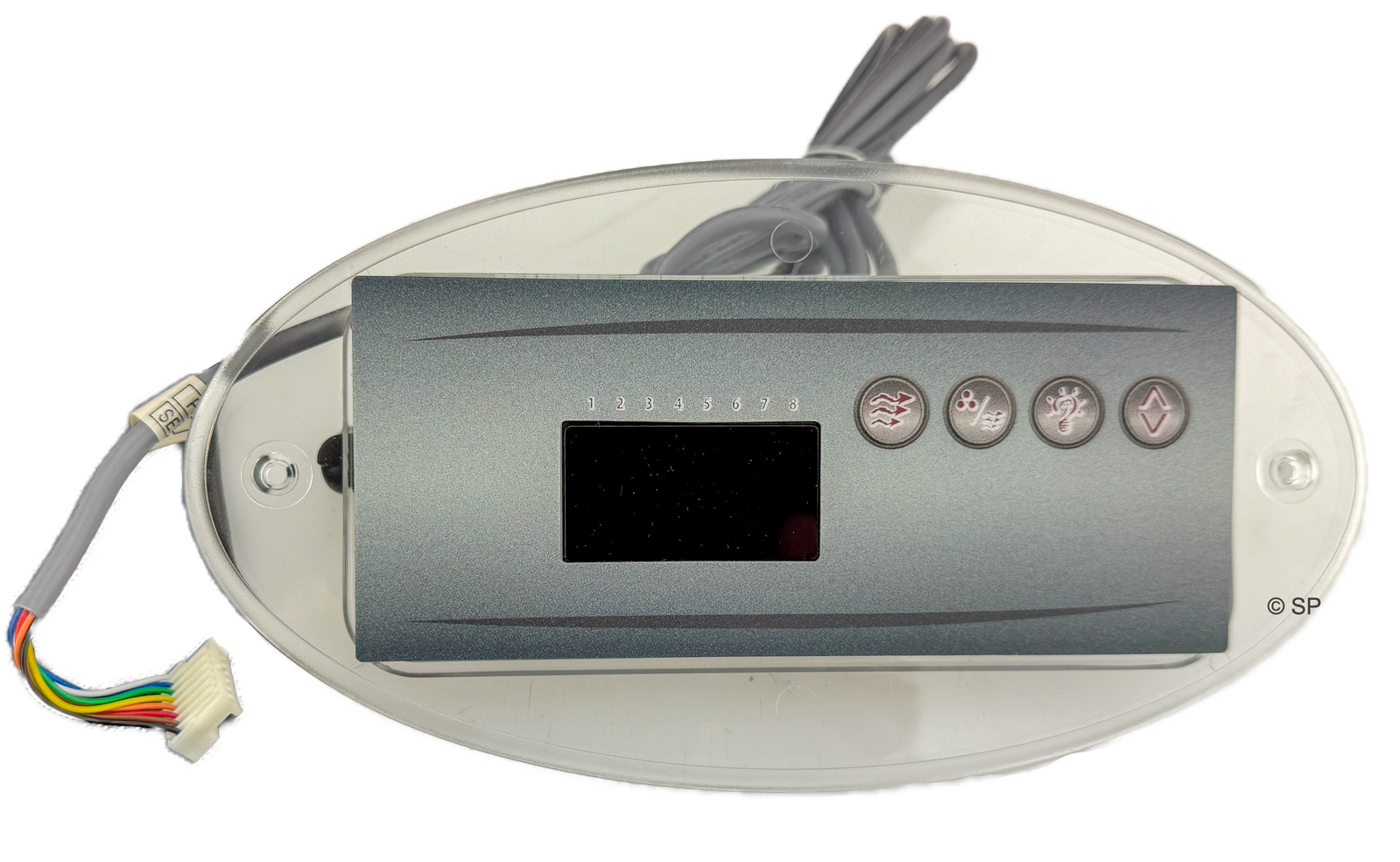

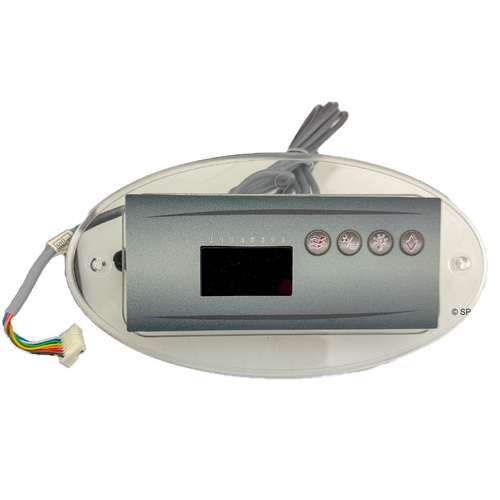

Gecko / Spa Builders TSC-19 / K-19 / Hydroquip Eco-8 Topside Panel - with Oval Placard & Rectangular decal Jets-Jets-Light-Temp

4 button touchpad with decal marked Jets-Jets/Blower-Light-Temp

Replaces ALL of the following discontinued 4 button touchpads (may require hole enlarging):
Gecko - TSC-9, TSC-18, TSC-19 (and other custom 4 button variants used on LA Spas and others) used with Gecko Microspa, USPA and SSPA control packs.
Hydroquip / Pentair Eco-1, Eco-2, Eco-5, Eco-6, Eco-7, Eco-8, K-22 - used with CS6500, CS7500 & U - series control packs.

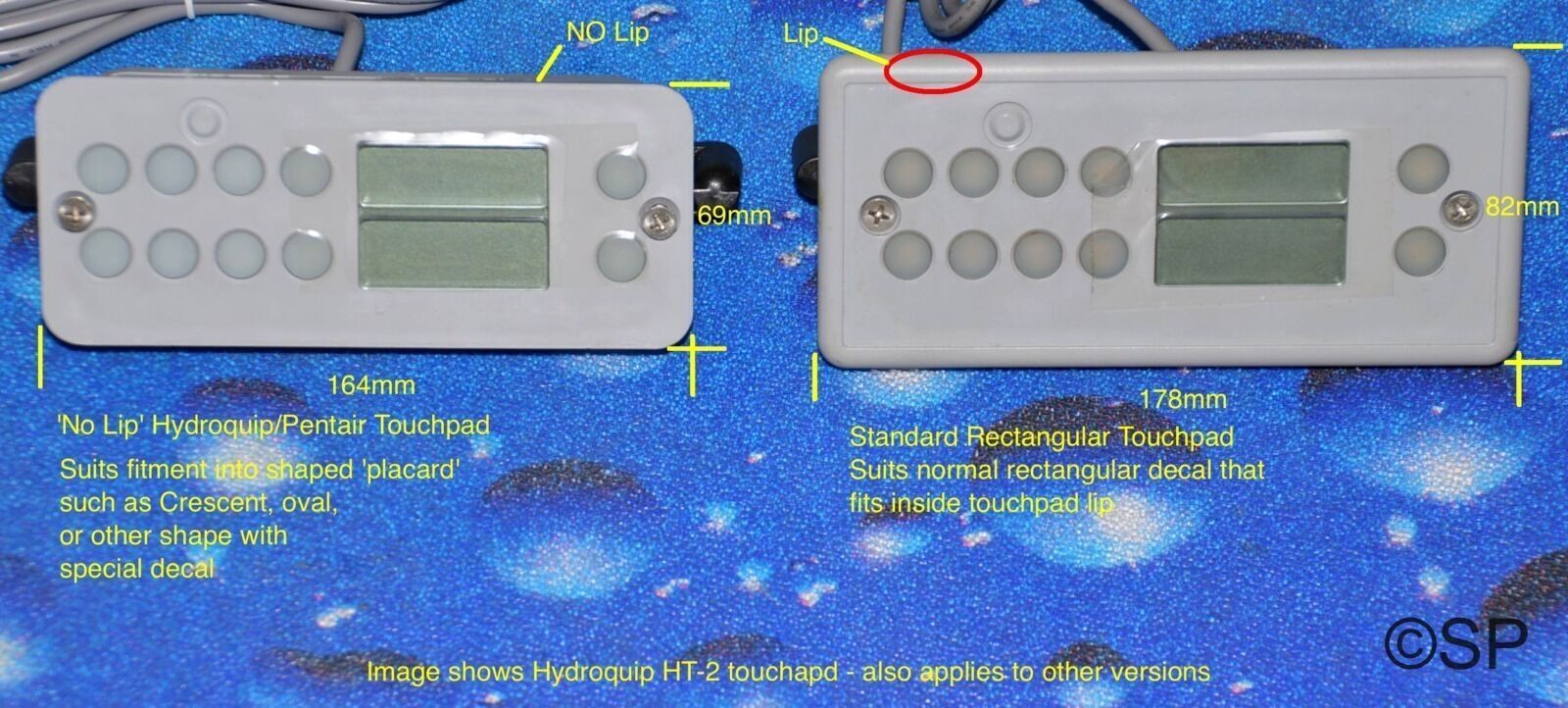

NB. This touchpad kit comprises a main TSC-19 touchpad manufactured without the outer lip specifically designed to seat into a larger placard. It will not fit a spa without the placard.

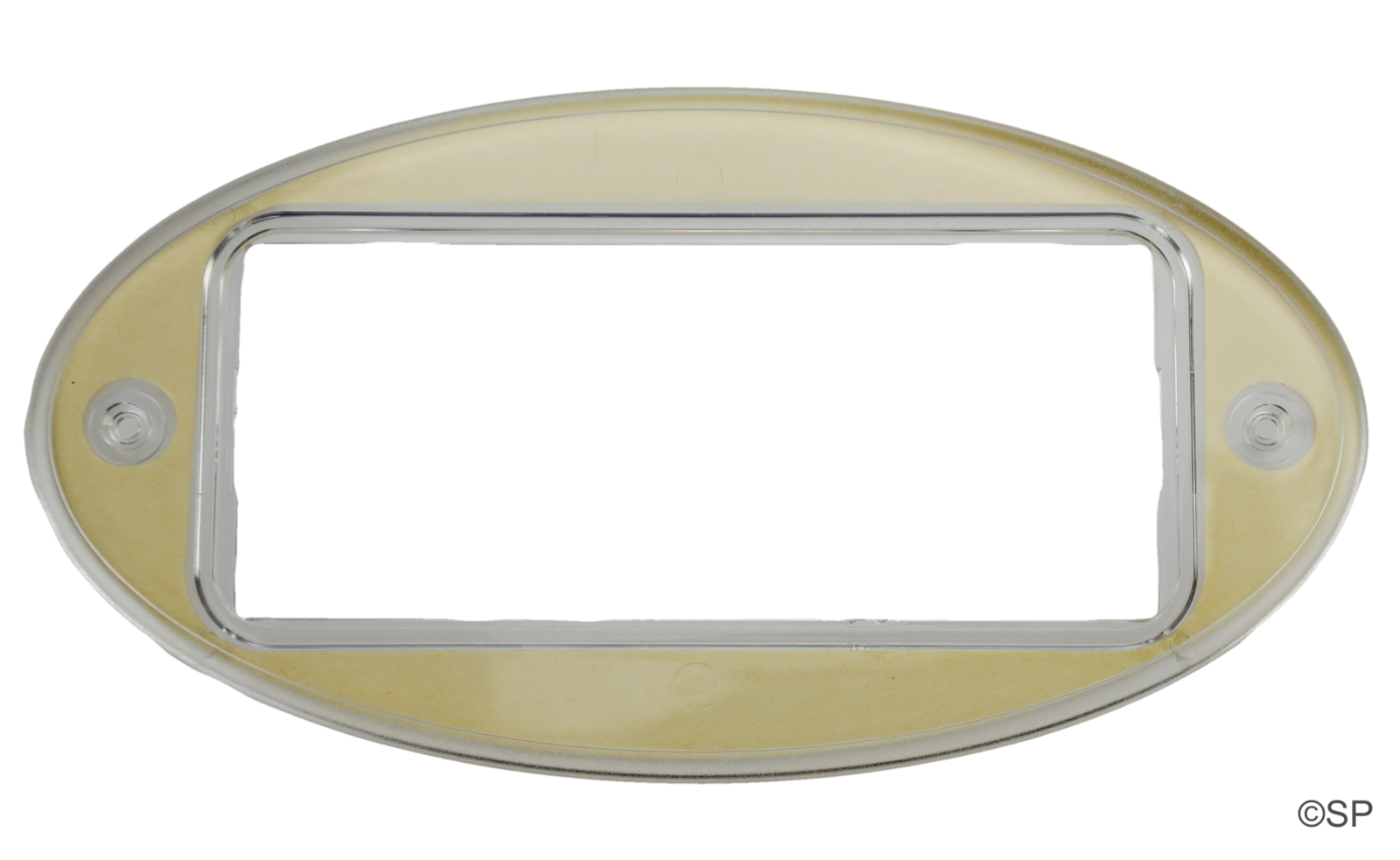

The supplied placard is clear and oval in shape.
The supplied decal is the generic rectangular decal which does not cover the oval placard shape.
THIS IS A SOLUTION TO ALL DISCONTINUED 4 BUTTON GECKO/HYDROQUIP TOUCHPADS - Alternatively contact us to discuss the best suited replacement complete control system.

The illuminated arrows on the top of the screen have different meanings between Gecko and Hydroquip applications.

Dimensions - 230mm wide x 122mm deep (including oval shaped placard).
Hole required - 172mm wide x 75mm deep.
A smear of silicon is recommended to seal the touchpad to the placard to eliminate water seeping below.

Used with
Gecko SSPA and Microspa controllers
Hydroquip CS 6500 and 7500 series controllers
