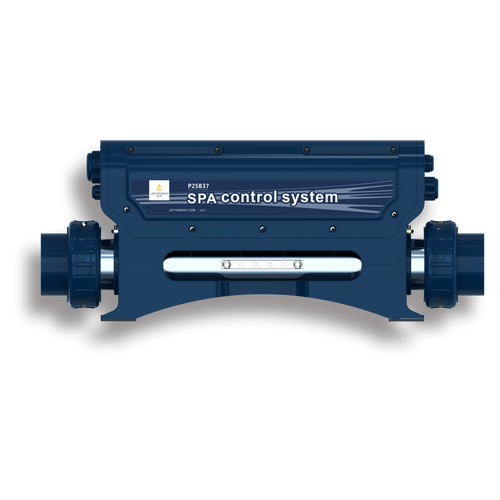

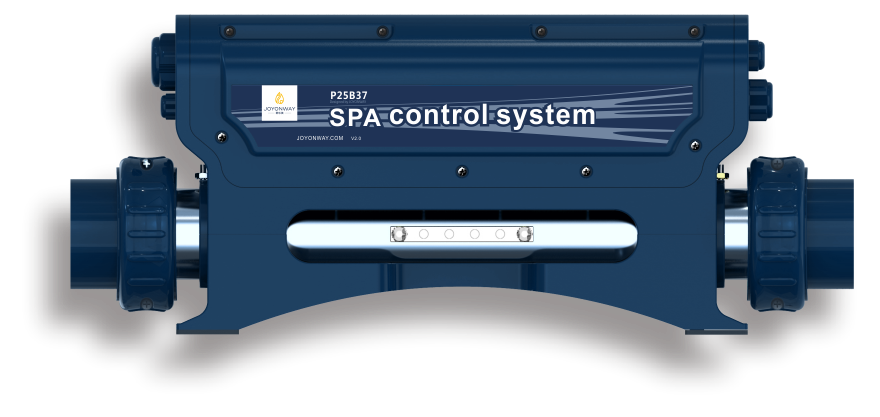

Joyonway P25B85-2022 Spa Control System Pack with 2kw heater

Joyonway P25B85-2022 spa control pack
2kw heater

Works with PB554 colour screen touchpad only (sold separately).
An alternate version works with smaller oval LCD screen PB557 touchpad - do not buy this pack if you have that touchpad

Note that on occasion there are software incompatabilities preventing operation with an original PB554 touchpad - in these circumstances, a replacement touchpad will also be required.

Can control:
1 speed pump 1 with circulation pump, or a 2 speed pump,
Air blower OR additional single speed jet pump,
Ozone,
Light.

Jet pump - 10A max load
Circ pump 2.5A max load
Blower/Pump 2 10A max load
Light 12v, 15w max load - 2 wire or 4 wire 12v DC

220-240v, 50/60Hz, 32A max single phase

Works with PB554 touchpad only (sold separately). This touchpad has a 4 pin inline plug connection

Used on the following spa brands and others:
Jazzi
Sunrans Spa
Spas Direct

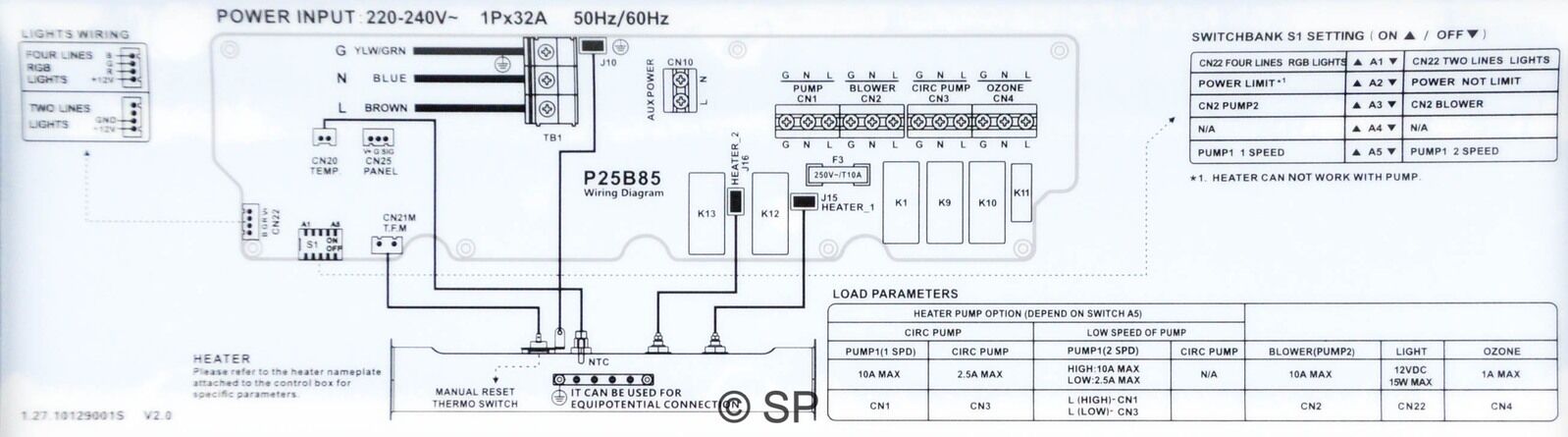

Dip switch settings as indicated on the inside of the box cover must be set correctly.
NB. 2 speed pump wiring - Low speed wires to Circ Pump CN3 L, high speed to Pump CN1 L. Neutral and earth to Pump CN1 terminals.

Programming must be set PRIOR to connection any 2 speed pump.
