Major Tech MT777 1000A AC/DC True RMS Bluetooth Clamp Meter for Spa Service Technicians

$423.50
In Stock

2 In Stock

SKU:
mt-mt777
Brand:
Shipping:
Calculated at checkout


Product Description

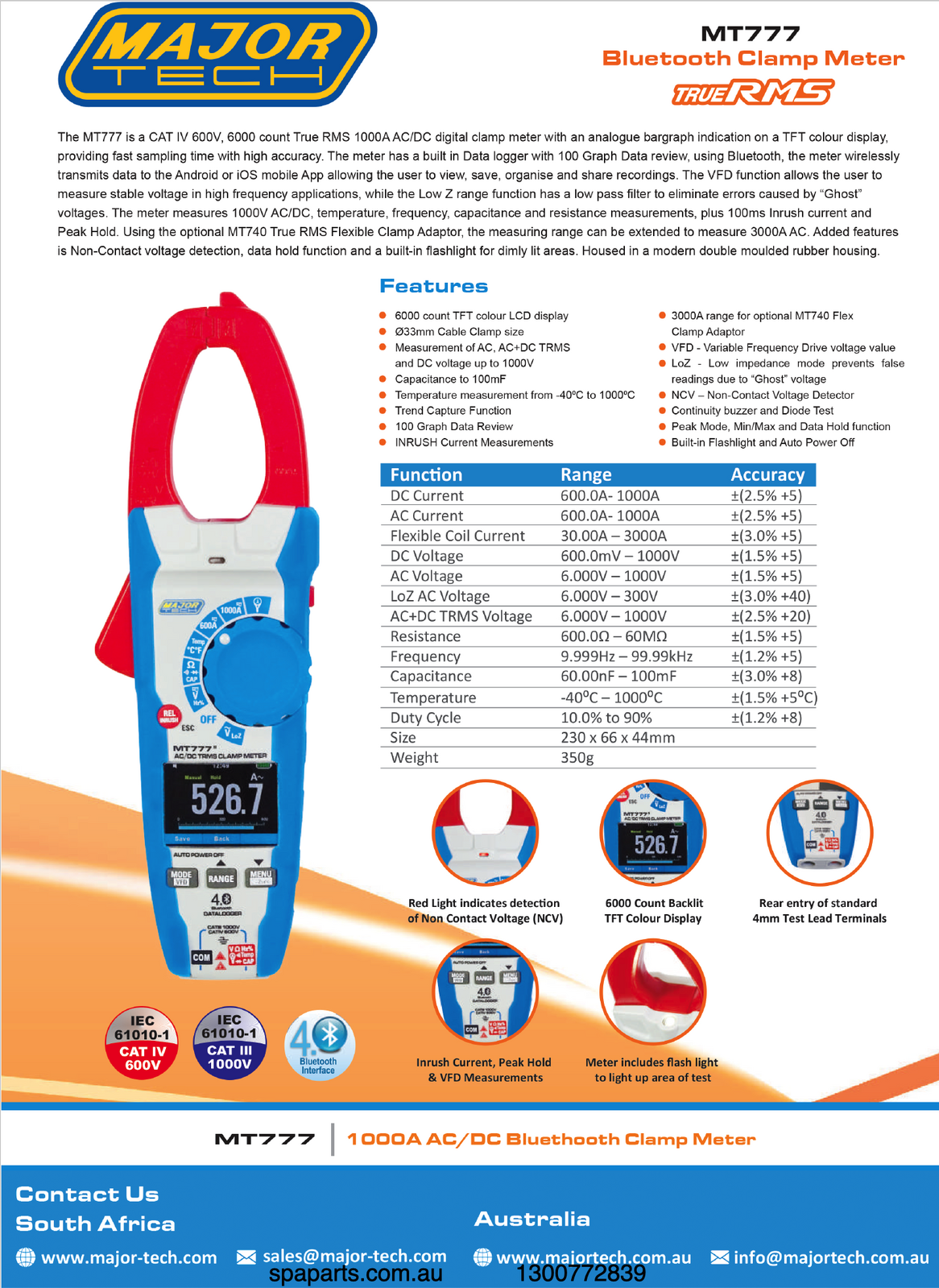

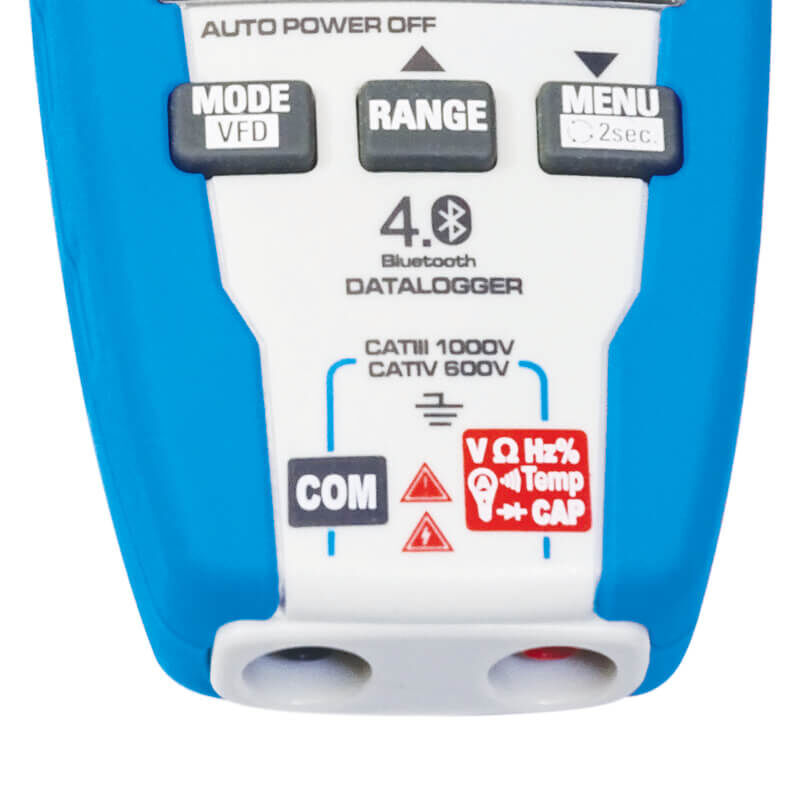

Major Tech MT777 digital 1000A AC/DC true RMS  Bluetooth clamp meter for spa service technicians

TFT Colour LCD display
Analogue Bar Graph
Built in data logger
Transmit data via bluetooth to smart phone App. Save recordings for customer files.

This clamp meter is NOT IP67 rated - do not get wet

This is a meter covering ALL the parameters required for spa related applications.
Tests the following important spa related functions:
Voltage - AC and DC
LoZ function - Note that this meter WILL correctly display voltages where 'ghost voltages' are present, common on some spa circuit boards
Resistance of heater elements
Resistance of electronic temperature sensors
Resistance of pressure & flow switches
Capacitance of pump motor capacitors
AC/DC Current draw of pumps, heater, etc to confirm correct operation - when testing current the wire must be positioned at the base of the open jaw for accurate readings
In-rush current / Motor start up current draw
Power supply frequency
Temperature*
Variuable Frequency Drive voltage

The 33mm cable clamp size may make this meter a little harder to use in tighter spaces.

Additional features include:
NCV - non contact voltage detector built in
Backlit display
Built in flashlight
Bluetooth


Includes:

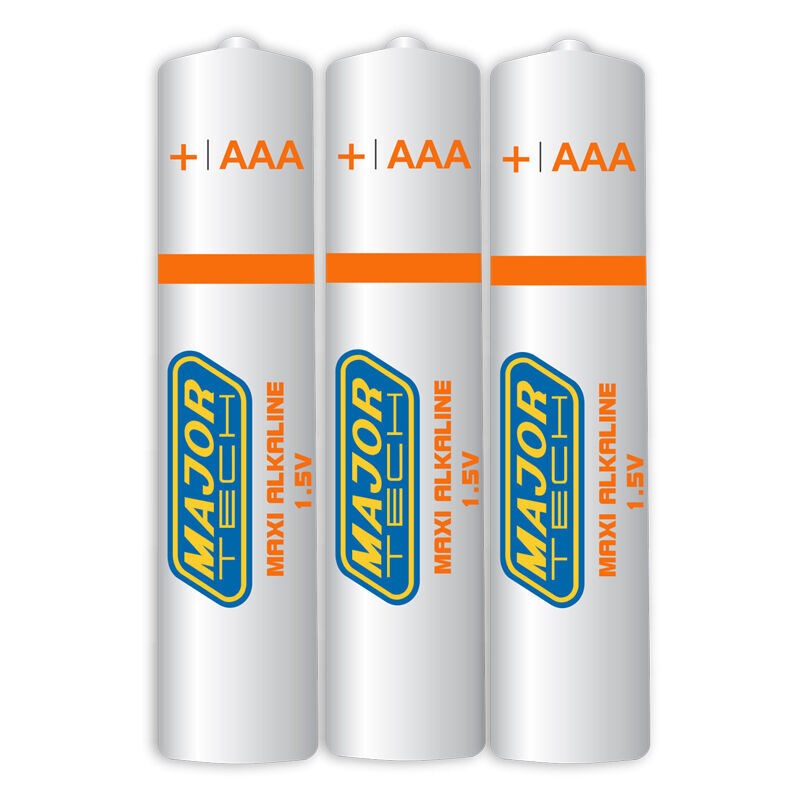

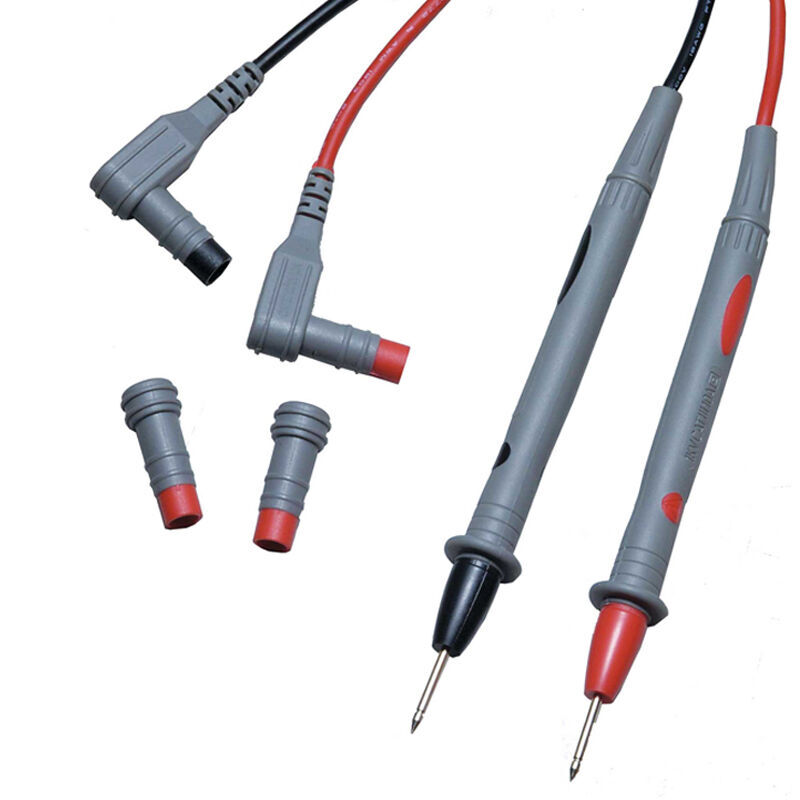

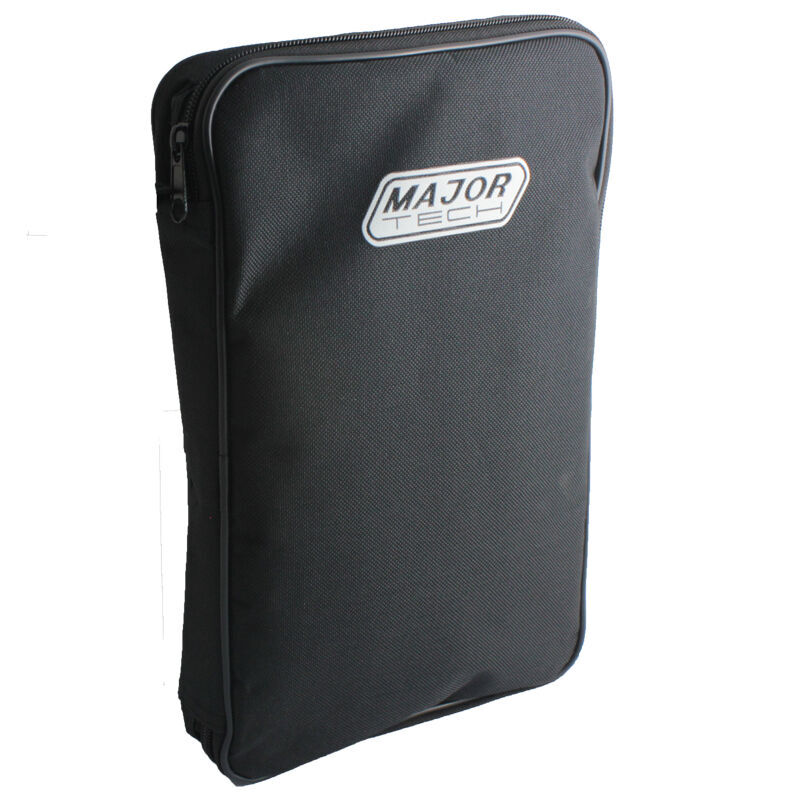

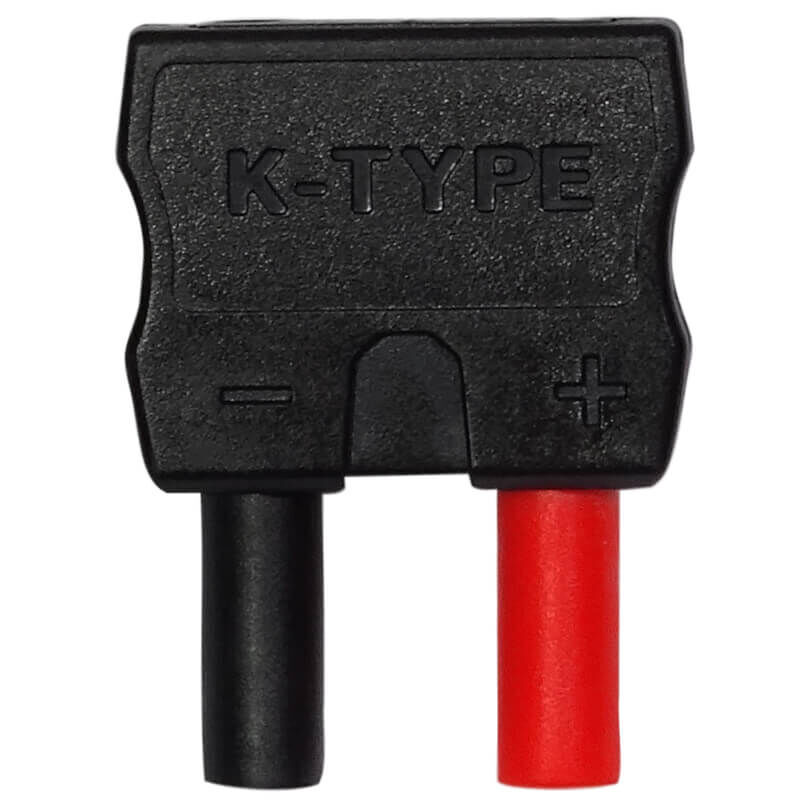

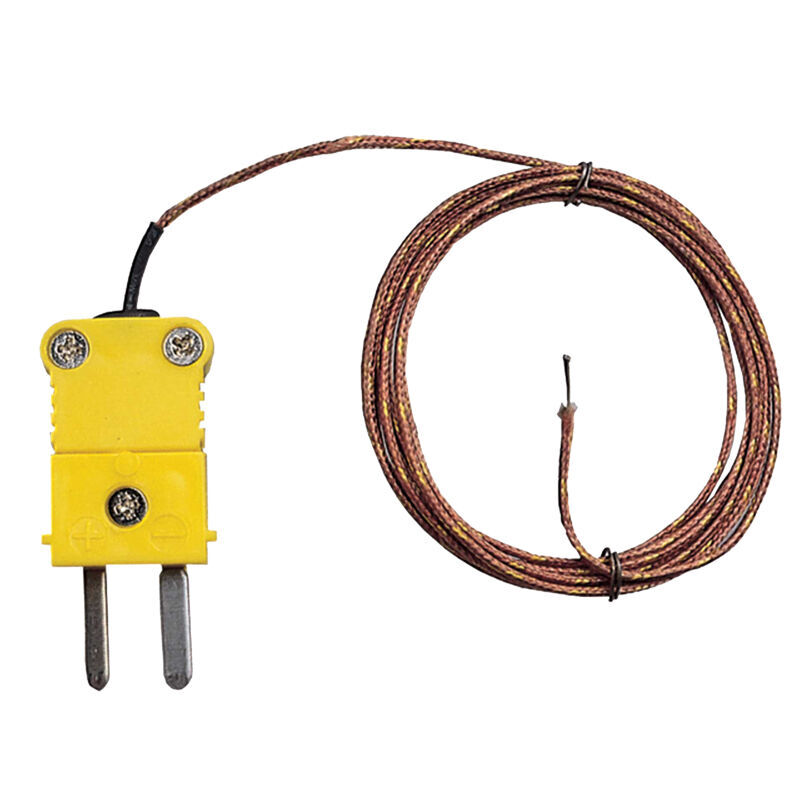

Soft carry case, test leads, instruction manual, 3 x AAA batteries, Type-K temperature probe, Type-K Adaptor

Ensure your safety when working in and around spas.

Warning - to be used by competent persons only.
Never solely rely on test devices and ensure you have adequate knowledge on the testing and use of this tool.

2 year warranty

* optional Type-K water temp testing probe MT685 available separately
