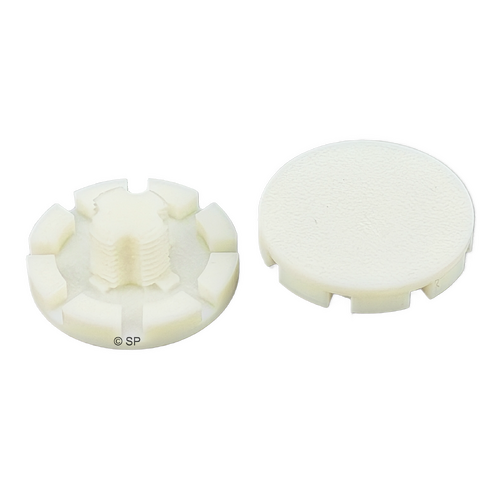

Senex Aeromax Air Injector Cap Replacement - White - LONG THREAD

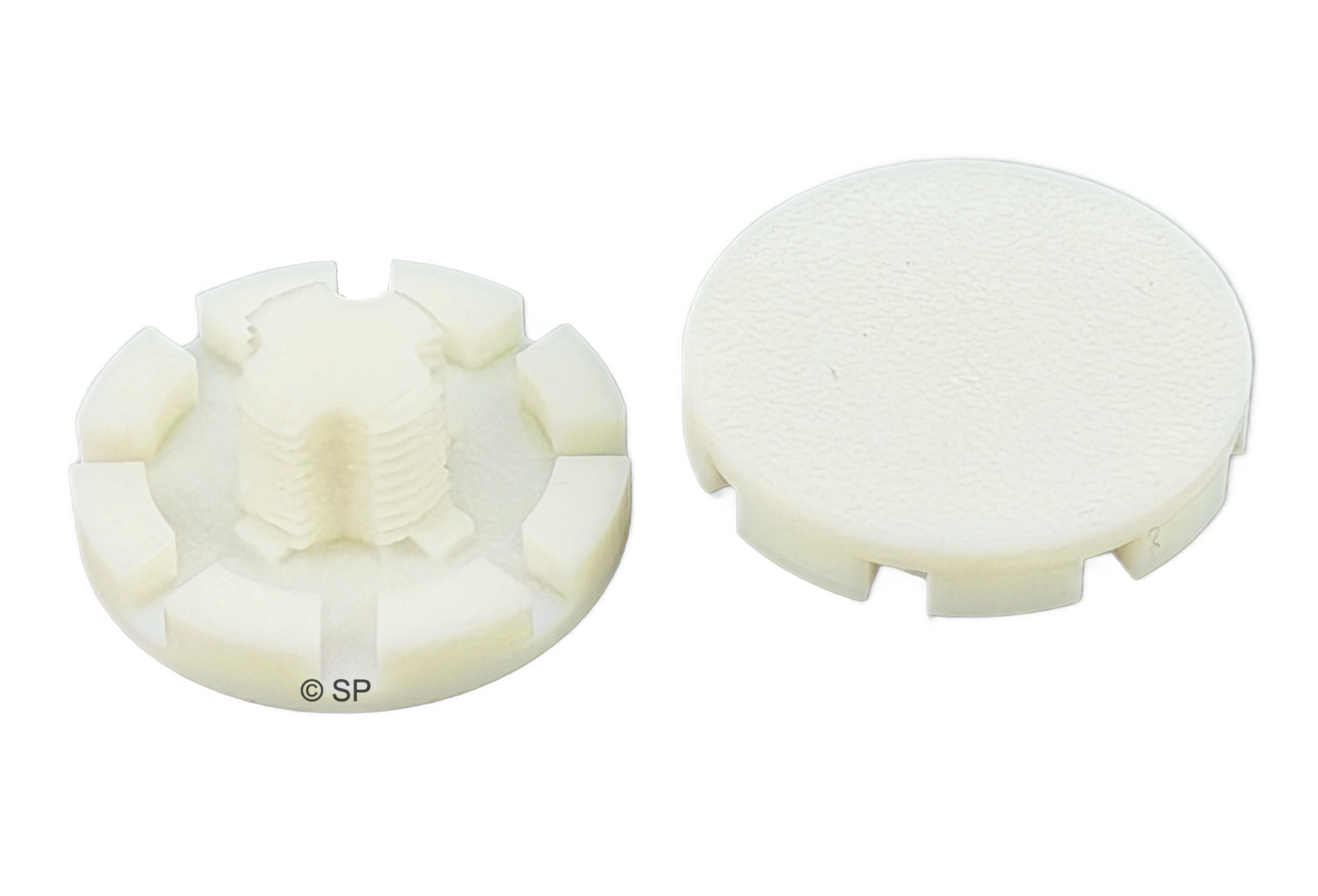

3D printed replacement cap for Senex air injectors.

White

Longer threaded version for relatively rare deeper threaded bodies.
Thread approx 10mm long

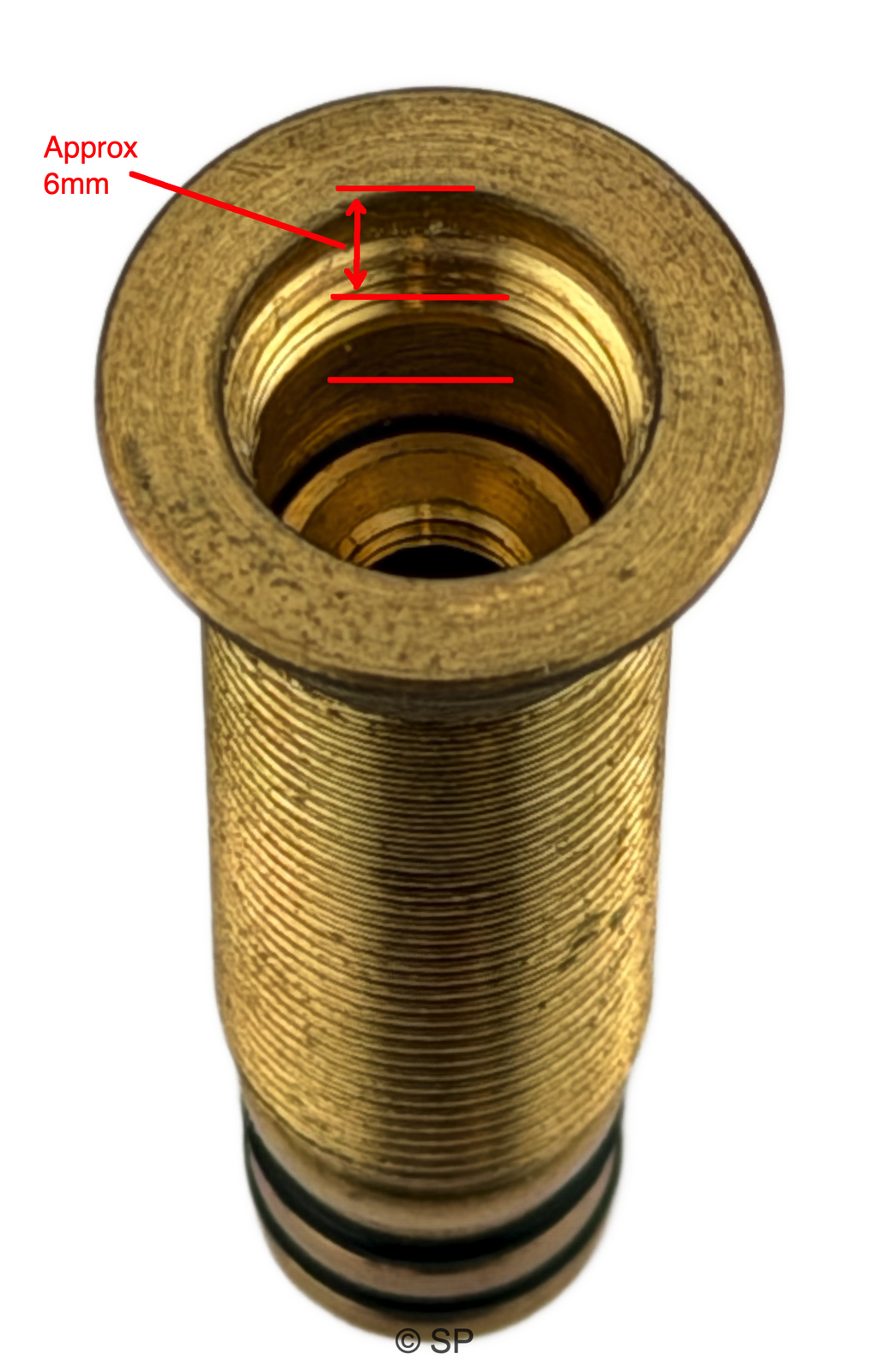

If the internal body thread starts approximately 5-6mm deep, this is the version required.
(most bodies have a thread starting 2mm deep - this cap will NOT suit the shallow thread version)

Threads into brass injector body

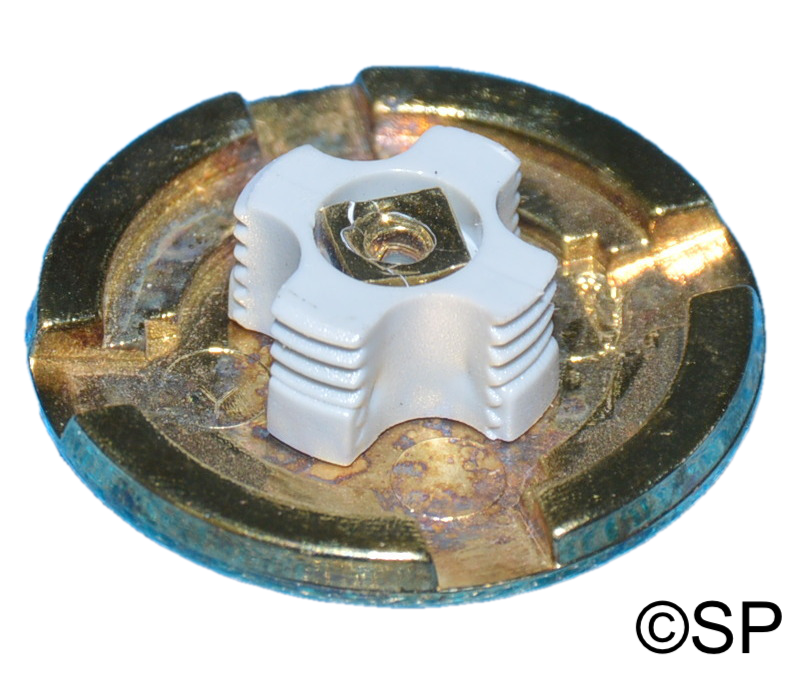

Senex spa bath air injector cap - threaded with 4 channels.
25.7mm diameter cap, 12mm diameter thread, 6mm thread length.
(the same injector cap was also made with approx double the thread length)

NB - take care starting the thread - easily cross threaded due to the thread being so fine
