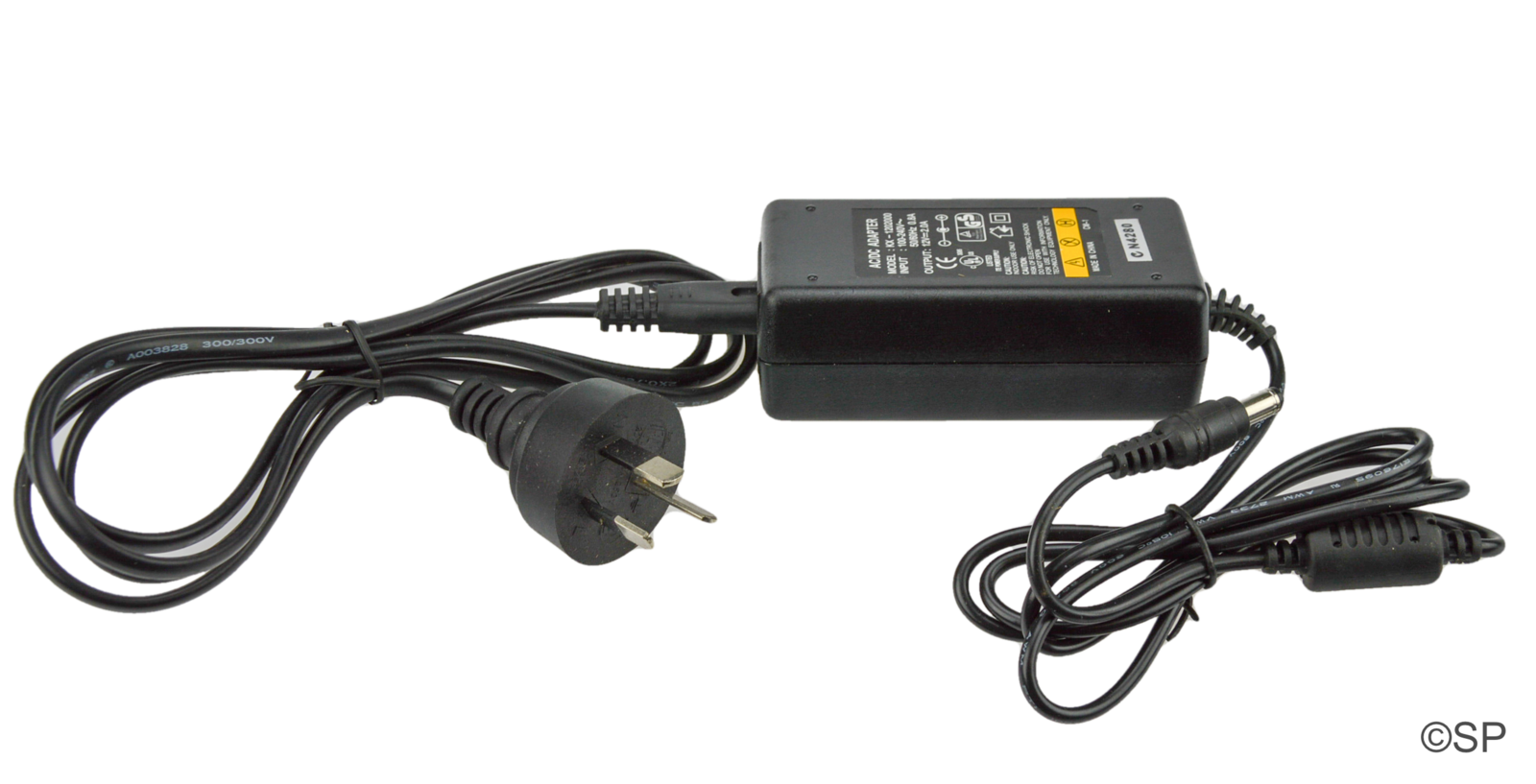

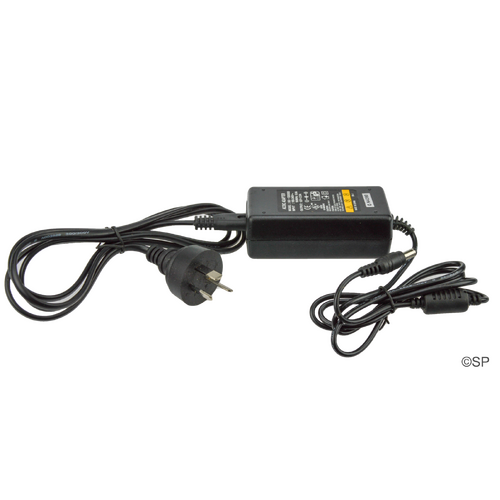

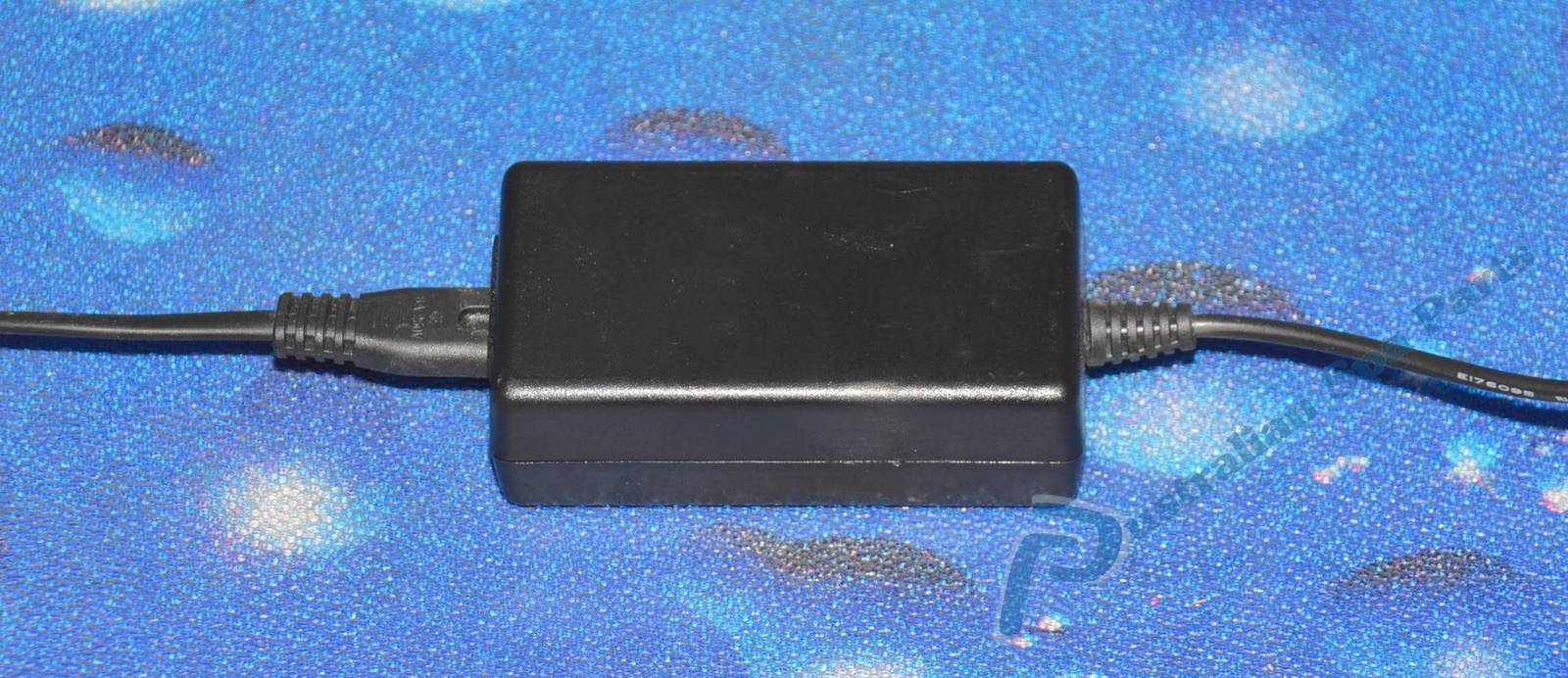

Sloan LiquaLED Multi-Zone Controller 12V 2.0A DC Power Supply

$22.00
In Stock

6 In Stock

SKU:
kx-1202000-3p
Shipping:
Calculated at checkout


Product Description

Sloan LiquaLED Muti-Zone Controller 12v DC power supply supporting up to 100 LED's
This power supply boosts the output capacity of the Multizone controller from 50 LED's (1A max) to 100 LED's (2A max)
It's necessary as spa pack outputs support max 1A.

If less than 50 LED's are connected, this power supply is not required.

12v AC input required up to 1000mA (approx 50 LED's), This additional 12v DC input required up to 2000mA (approx 100 LED's)

Input 100-240v, 50/60Hz, 0.8A - connect to permanent 240v in spa controller.
Output 12v DC, 2.0A max - connect to Sloan LiquaLED Multi-zone controller
Multizone controller still requires the additional 12v AC connection from the spa pack light output.
Electrical connections will need to be spliced.
