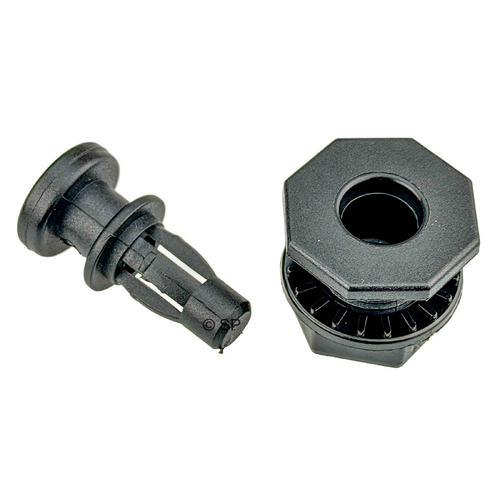

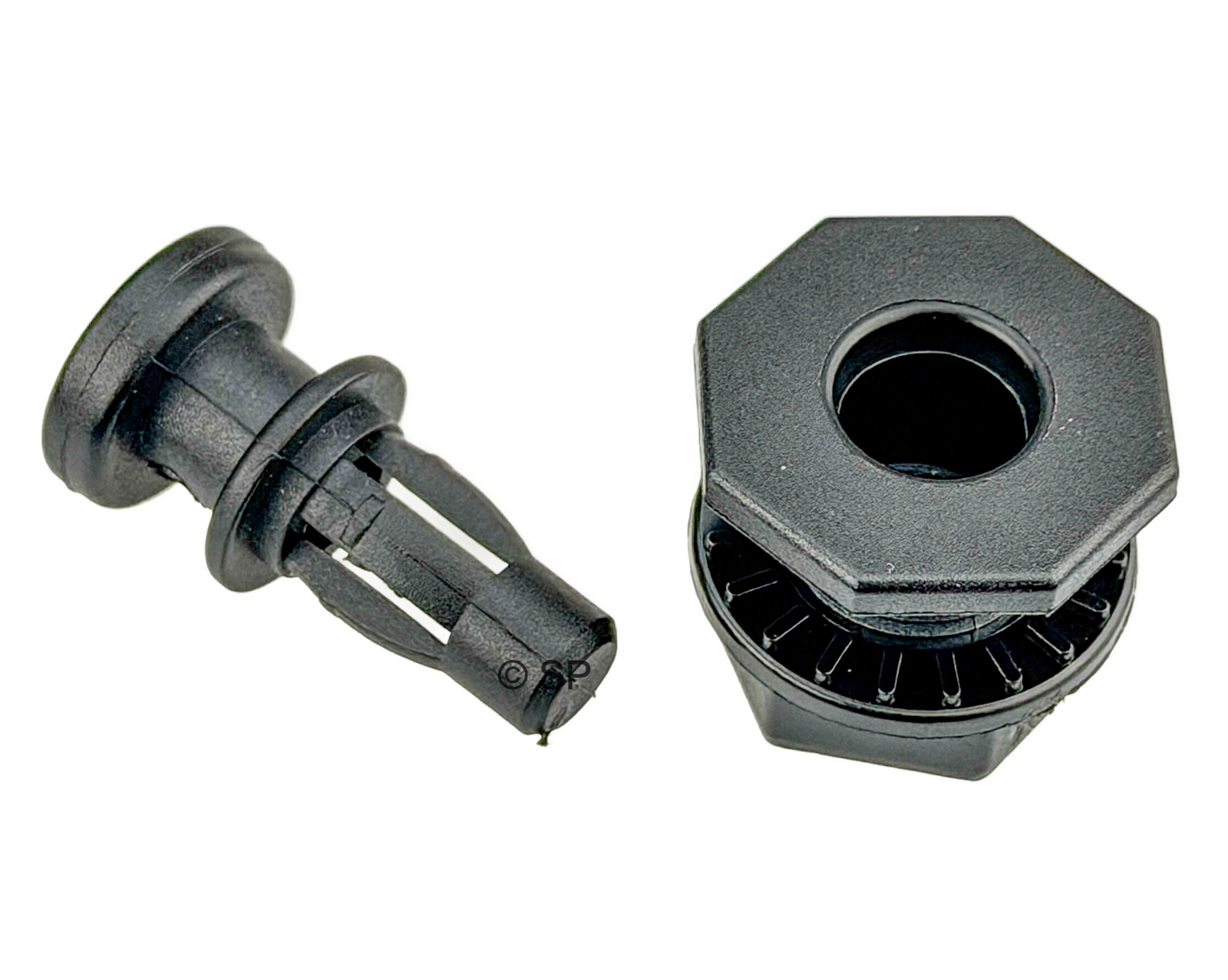

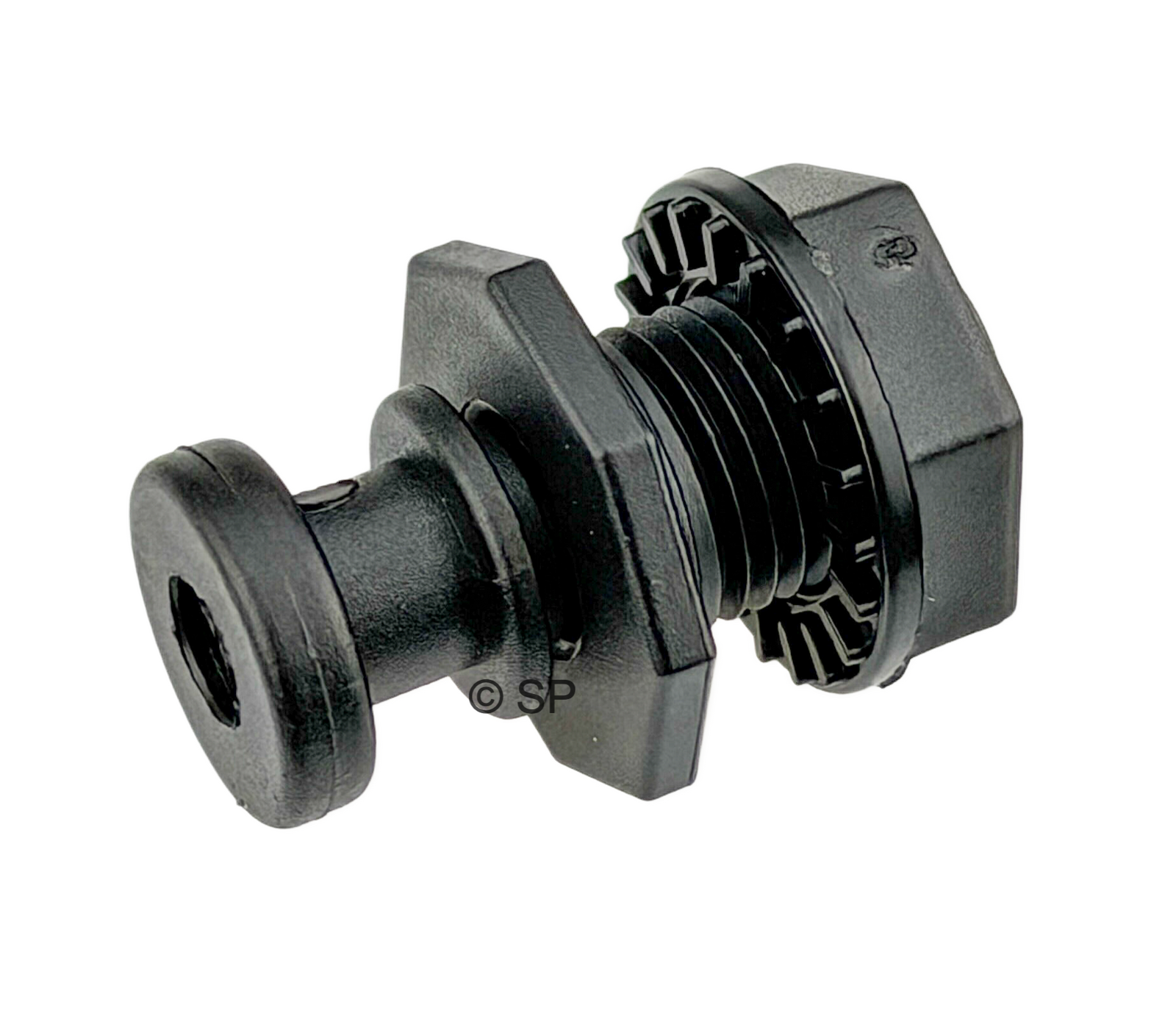

Sunrans Spa Pillow Headrest Mount Pin Adaptor & Socket

Sunrans spa pillow headrest mounting pin - suits some Sunrans pillows to convert from botton fixing to stud fixing.

May also suit other pillows from other brands

Used to replace pillows that originally had male studs sticking out the back and pressed into a receptacle on the spa shell.

These adaptors push into the socket on the spa so that the new style pillow can fix over the button end

Pin:
33mm overall length
17mm diameter button head - approximately 14mm raised from the spa surface
Suits socket hole of approx 10-100mm diameter - inserts 20mm into the socket
Socket:
27mm face, 15mm diameter thread/hole required, 24mm deep overall, 22mm internal depth


Sunrans manufacture spas sold in Australia and New Zealand under numerous brand names including Spas Direct

Sold individually
