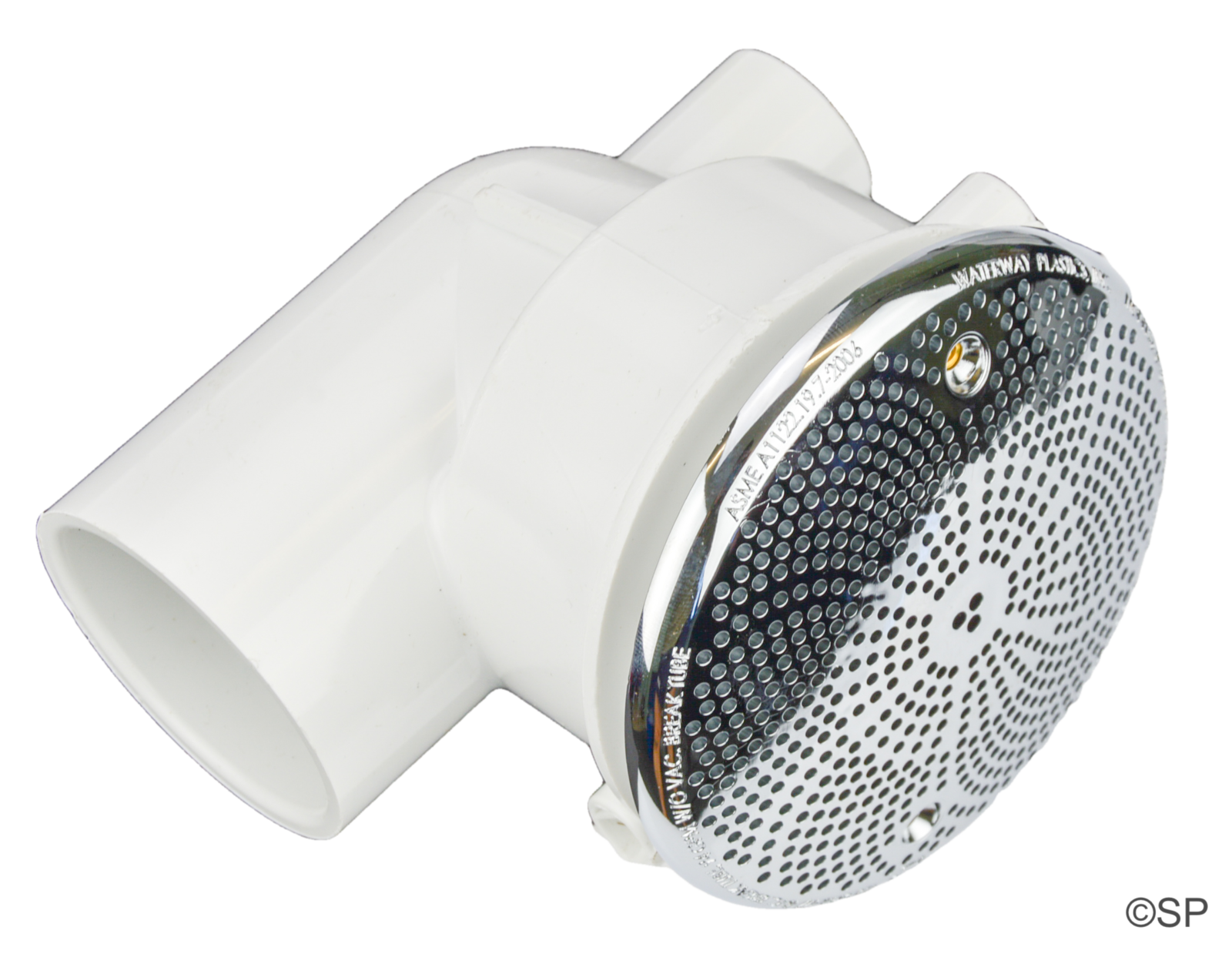

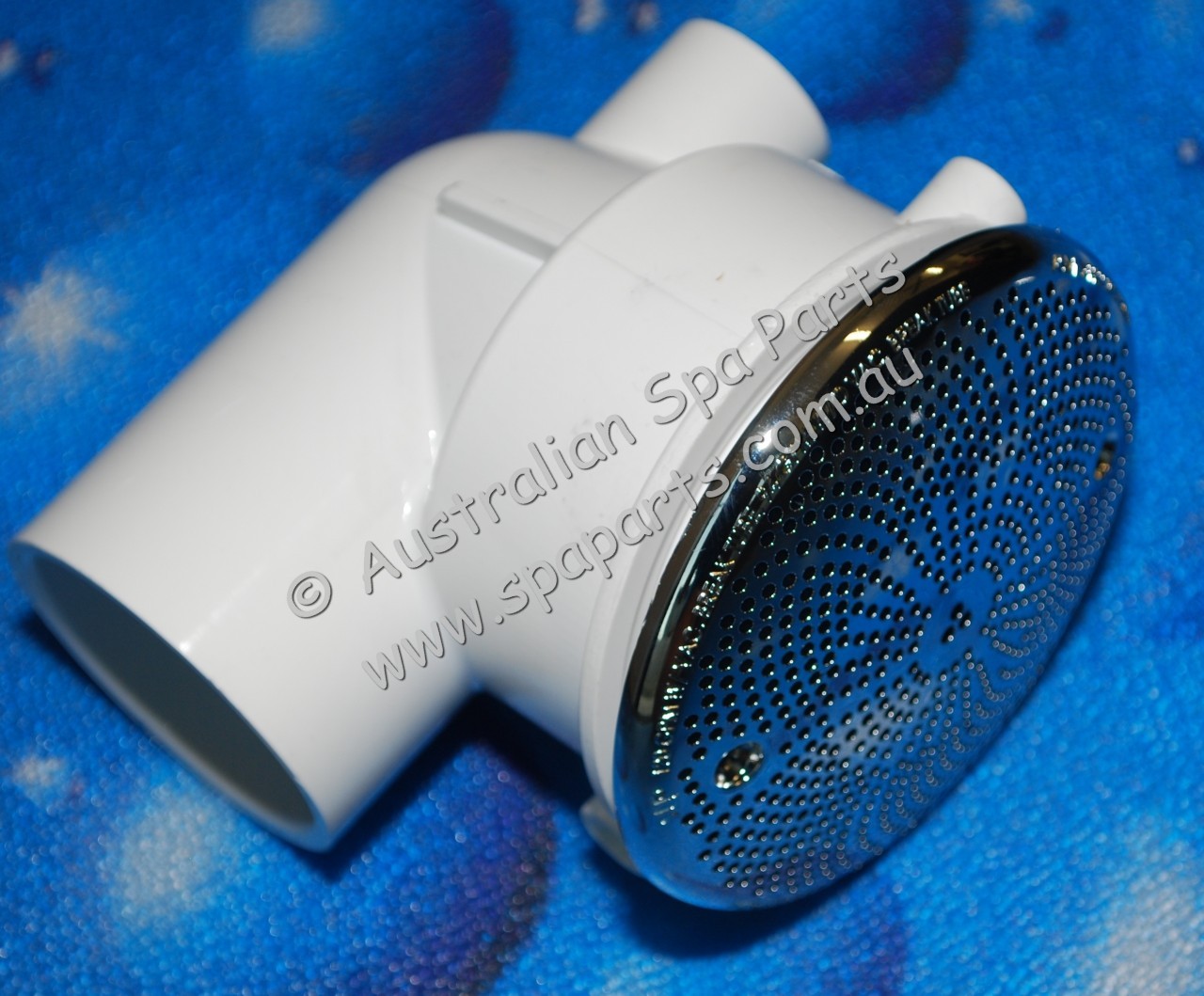

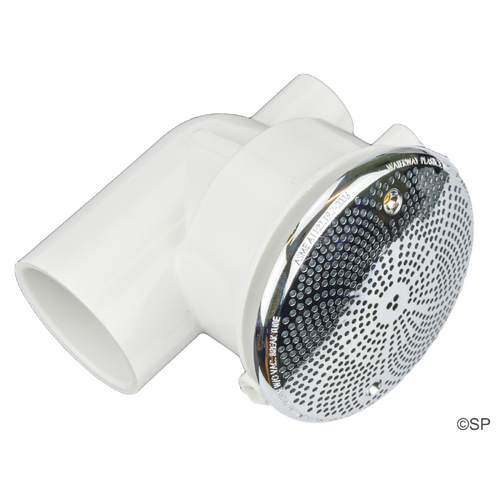

Waterway Designer Series Bath Suction Assembly - Chrome

Waterway designer series chrome spa bath suction - low profile. Rated at 454 lpm with vacuum break installed,
Rated at 356 lpm without vacuum break installed (capped off)

NB at least 2 of these fittings must be used

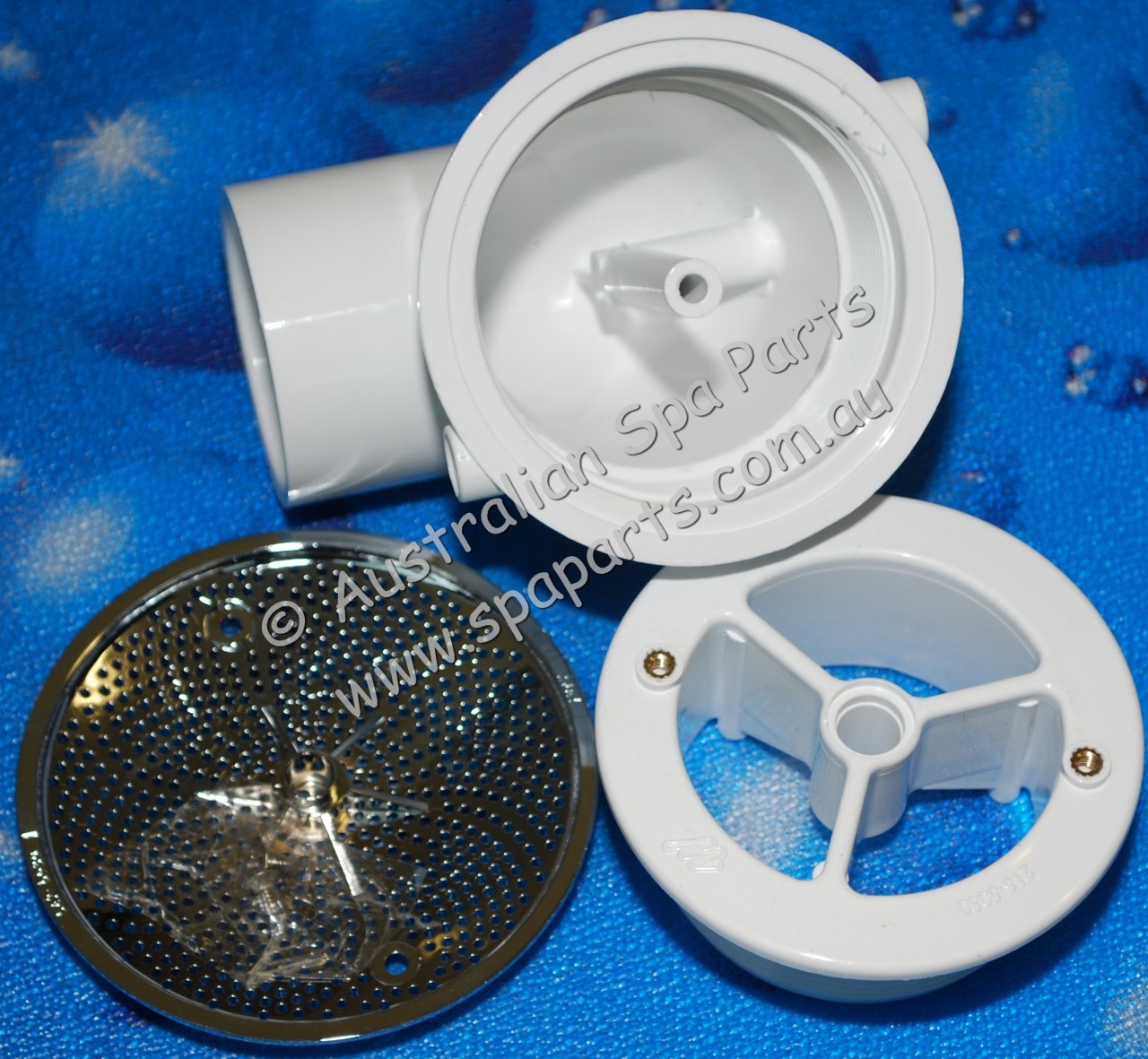

Low profile polished chrome suction cover.
1.5" / 40mm socket elbow fitting with 1/2" / 15mm vacuum break port.
96mm diameter face with 6mm profile.
Hole size required - 70mm.

MUST be used as a pair.

Chrome is a coating applied through electrolysis to a base material such as brass or plastic. These parts are chromed plastic
