Waterway Poly Storm Straight Body Concrete Gunite Spa Jet Assembly Kit - THREADED

Waterway Plastics Poly Storm Gunite Jet with straight body. THREADED VERSION

200mm long pipe sections for most applications. Max overall depth 300mm (without optional plaster niche), or 320mm (with optional plaster niche)
Concrete spa jet - air mixes from venturi at the jet nozzle, rather than back in the jet body.
Allows the use of the THREADED Poly Storm jet internal range
Includes:

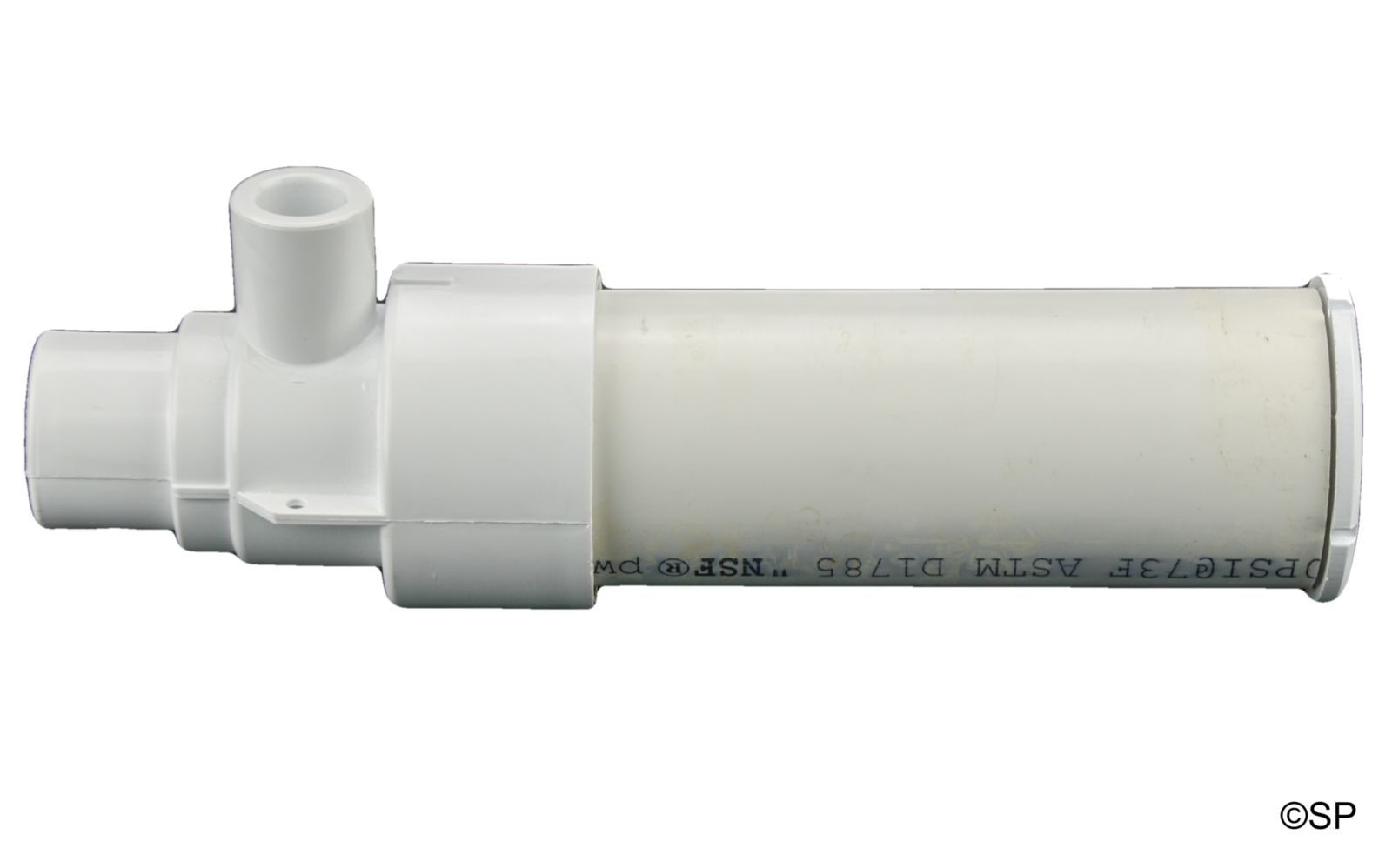

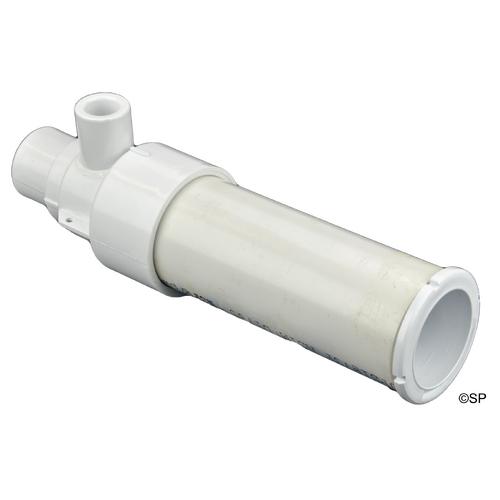

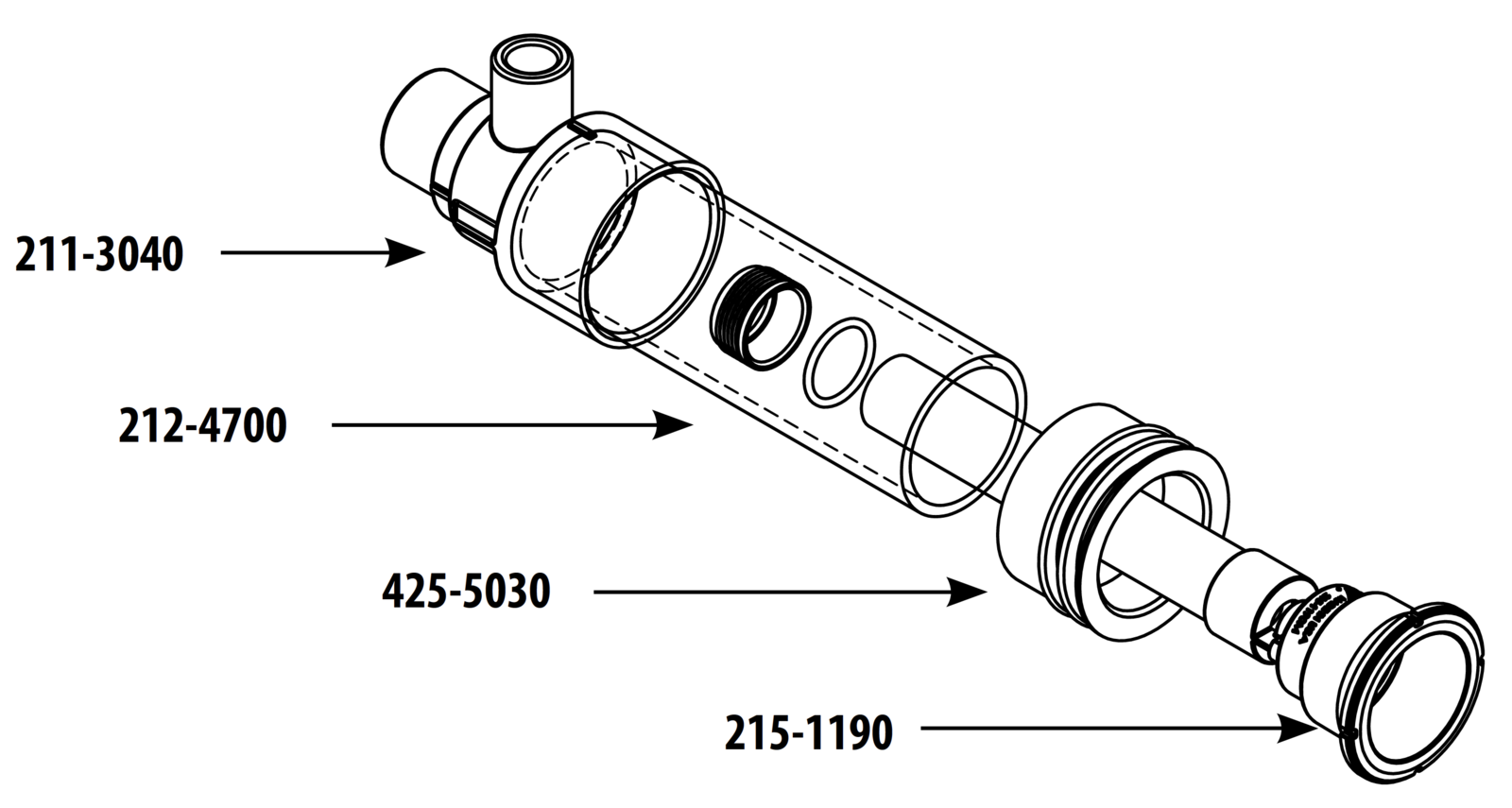

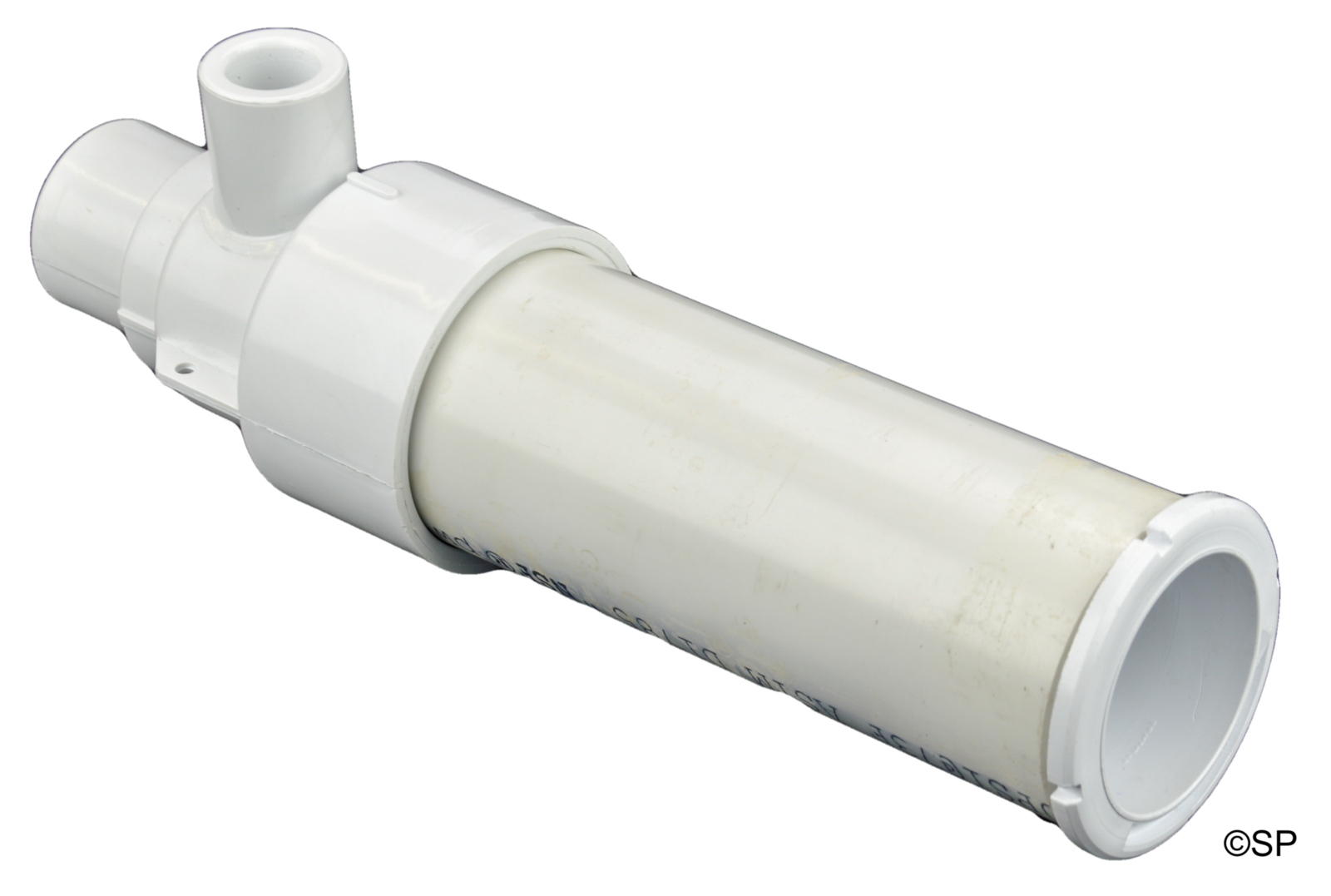

Jet - straight body assembly
USA 2.5" x 8"/200mm pipe section
1" pipe section x 8" / 200mm

1"S / 1.5"Spg straight water x 1/2"S / 1"Spg air pipe connections Only requires Threaded jet barrel internal for complete system.

This jet body design may be more installation friendly where jets are to be plumbed in close proximity to one another, where smaller air venturi pipes are desired, or single air venturi controls per jet, or where freedom of plumbing is to be maximised.
The plumbing to the jets can be directly into the rear of the jet, or from an elbow (45 or 90 ell), or a Tee as required.
Plumbing for water is either 1" or 1.5".
Air venturi plumbing is either 1/2" or 1".

Internals available - sold seperately - see Waterway Polystorm Jet internals listed under Jets - Waterway - Storm Series - Poly Storm - Threaded in style.

See images for options of what can be achieved with 'grouped' jets.

*** Previous purchasers of these jets prior to Feb 2019 - Please note the jets now accept THREADED style jet barrels only - spare parts are still available for Snap In style jets***
