Waterway Turbo Jet - Whirlpool 2-3 port Diverter Jet - Stainless Steel / Dark Silver Grey

$231.00
In Stock

19 In Stock

SKU:
ww210-4399s-DSG
Shipping:
Calculated at checkout


Product Description

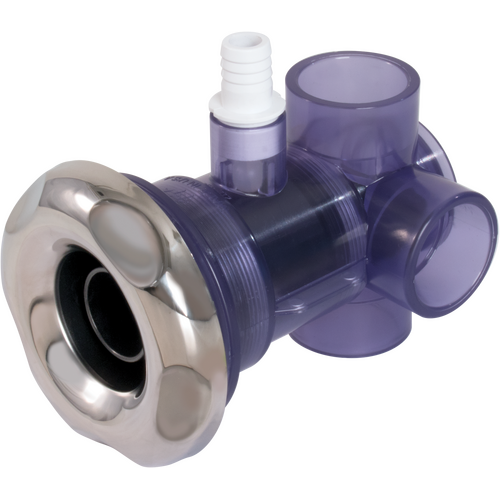

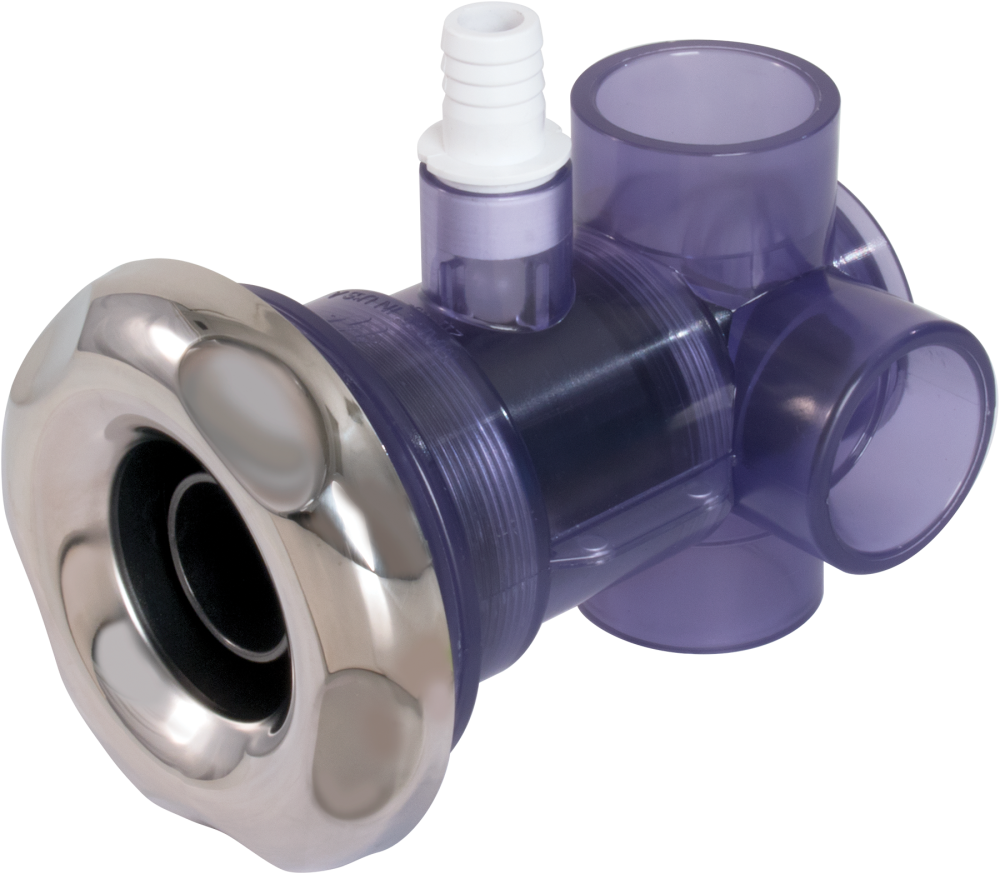

Waterway Turbo Jet - 304 Stainless Steel Face / Dark Silver Grey nozzle

See images for multiple water flow configurations - ensure it is plumbed and setup correctly for your application.

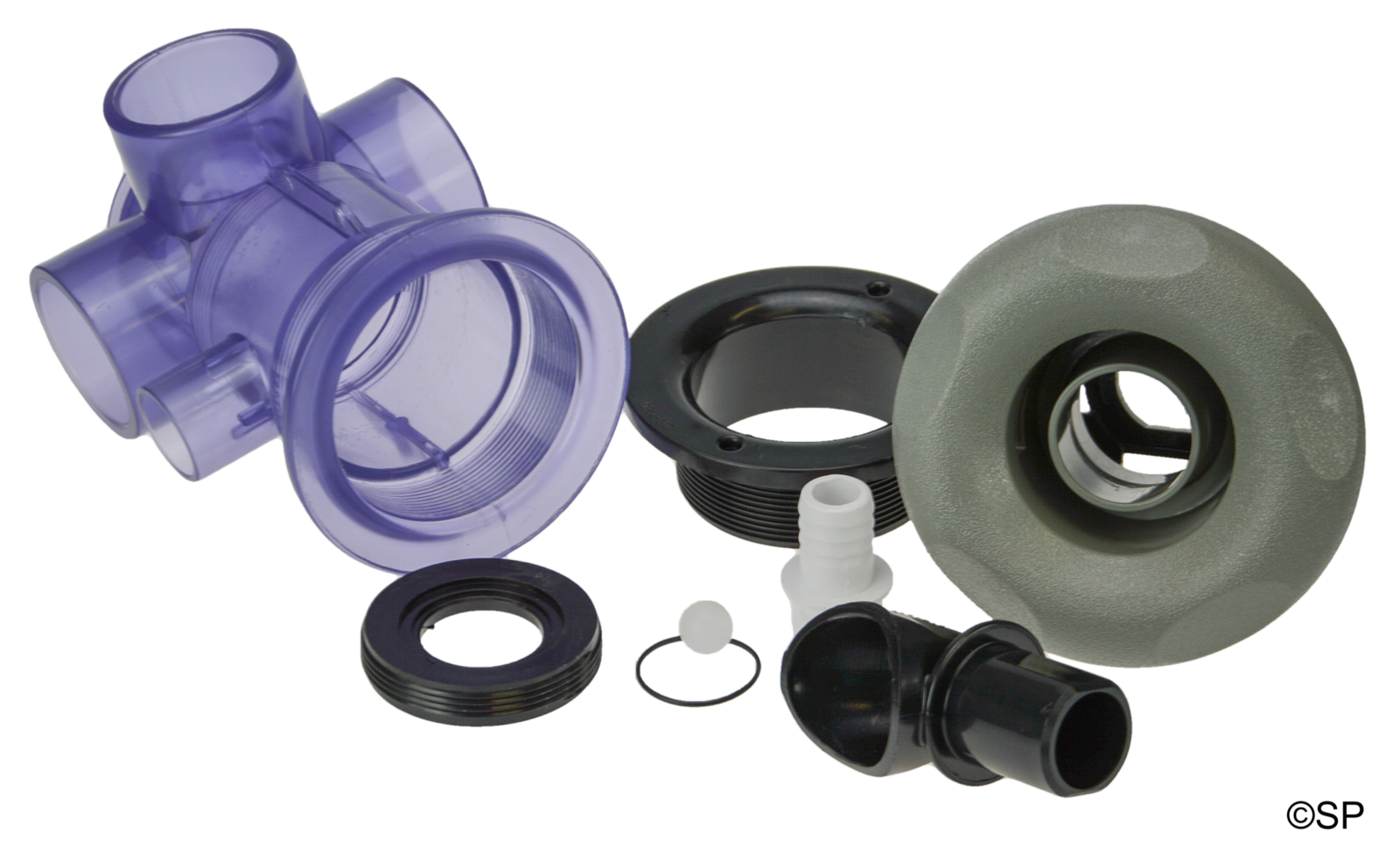

(Note that additional images show standard non-SS faced version)

Whirlpool 2-3 port whirlpool diverter jet.

The internal valve nozzle can have a tab removed to convert from 2 port to 3 port diverter (see images)
'Similar' in design to Hydroair 3 way Butterfly diverter jet but parts are not interchangeable.

133mm diameter face
82mm diameter hole required.

Flow rate of:
320 lpm @ 5 psi, or
400 lpm @9 psi

3 x 1.5"S / 2" Spg water ports and 3/4" barb air.

Incoming water can supply multiple ports depending on how you desire the diversion of water to behave. Very careful attention to jet function must be taken when determining plumbing arrangement to/from the 3 ports.
There are a number of plumbing combinations available for both two port (2 combinations) and three port (3 configurations). See images for configurations.

In 2 port configurations, one port must be sealed/capped off.
In 3 port configurations, the outer tab must be cut off the internal nozzle as per images - do not cut off for 2 port configurations.

If replacing an alternate diverter jet, plumbing configuration may vary.

304ss face is susceptible to corrosion/rust if water chemistry is not correctly maintained or salt/minerals are added - this is not warranted.
