Aquaflo CMHP Circ Master HP Circulation Pump 1/15th HP - 1.5" - AMP cord - ALTERNATE DIRECT REPLACEMENT

REPLACEMENT for Aquaflo / Gecko Circ-Master HP circulation pump CMHP - 1.5" plumbed.

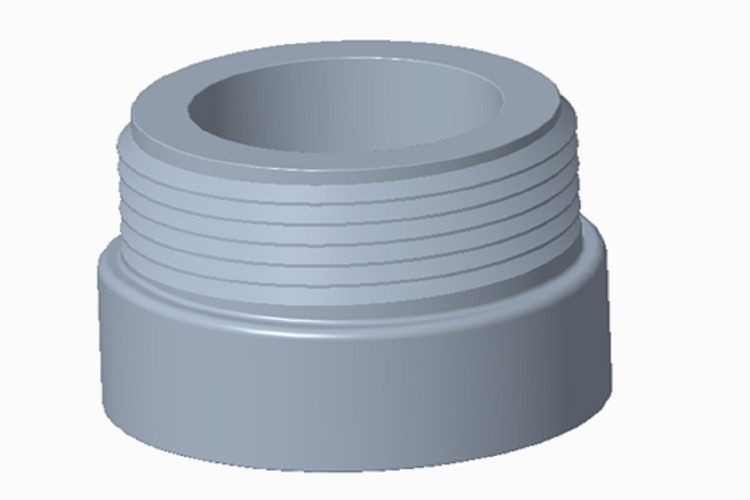

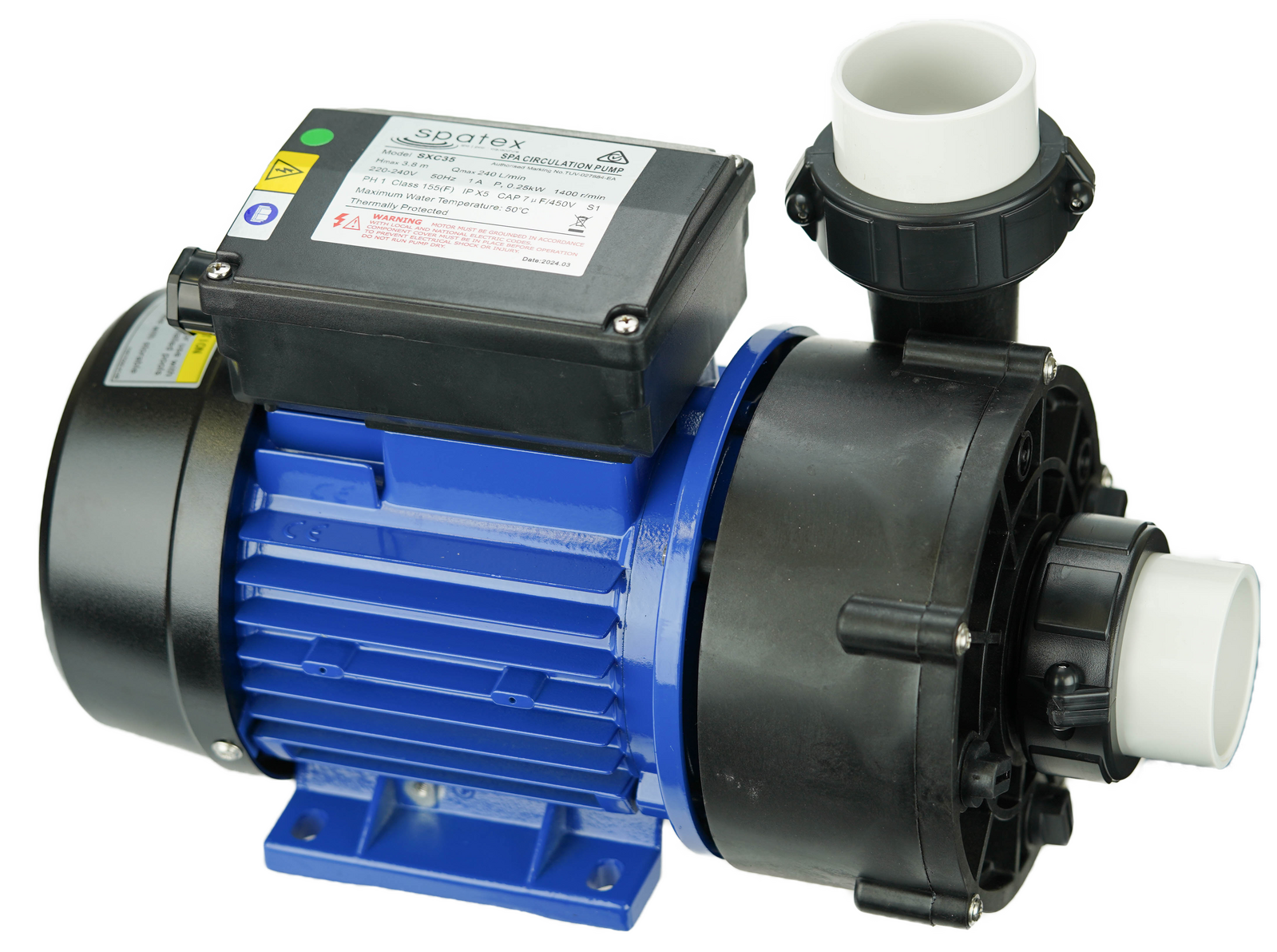

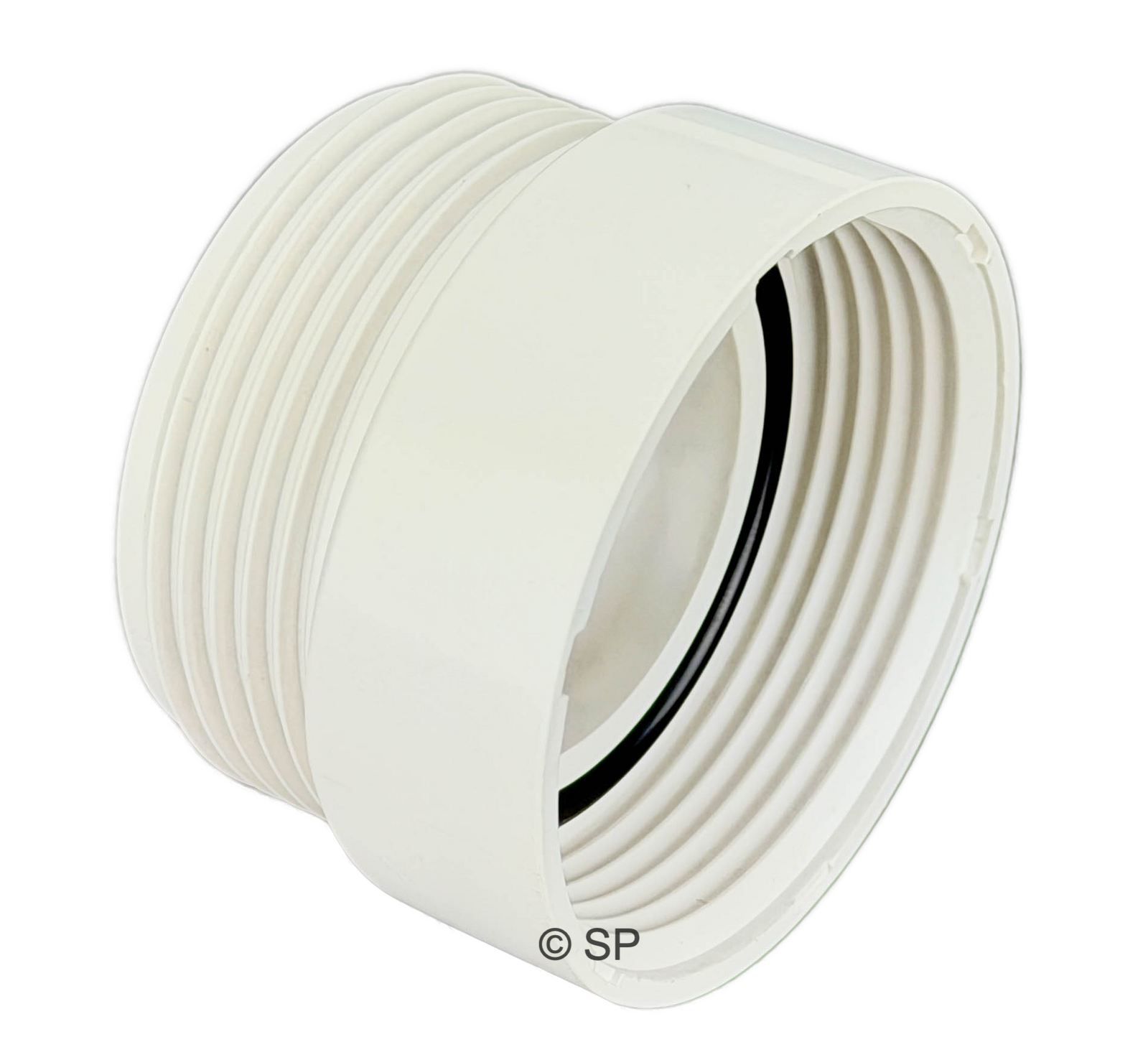

Replacement pump - spatex SXC-35 supplied with 2 union extensions to closely align with original pump plumbing.

Fitted with AMP cord/plug to suit spa control systems from:
Balboa BP, GS and GL series,
Gecko Aeware,
LX,
Joyonway Series II,
Spa-Tech

Original Aquaflo Pump:
Over 100 lpm
Economical high flow circulation pump:
138w
1/15th hp,
220-240v,
50Hz, 0.62A,
1425 rpm

Replacement pump:
0.35hp / 250w
220-240v, 50Hz, 1A
1400 rpm, 4 pole

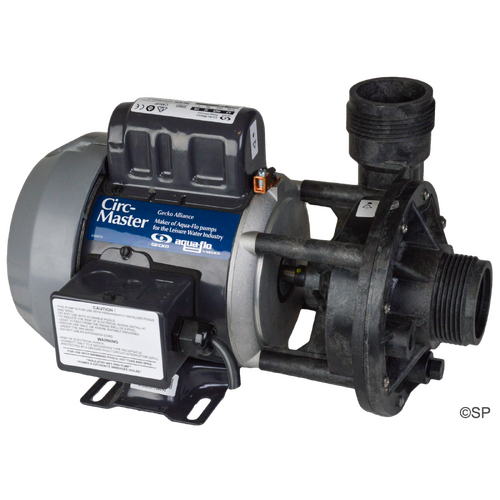

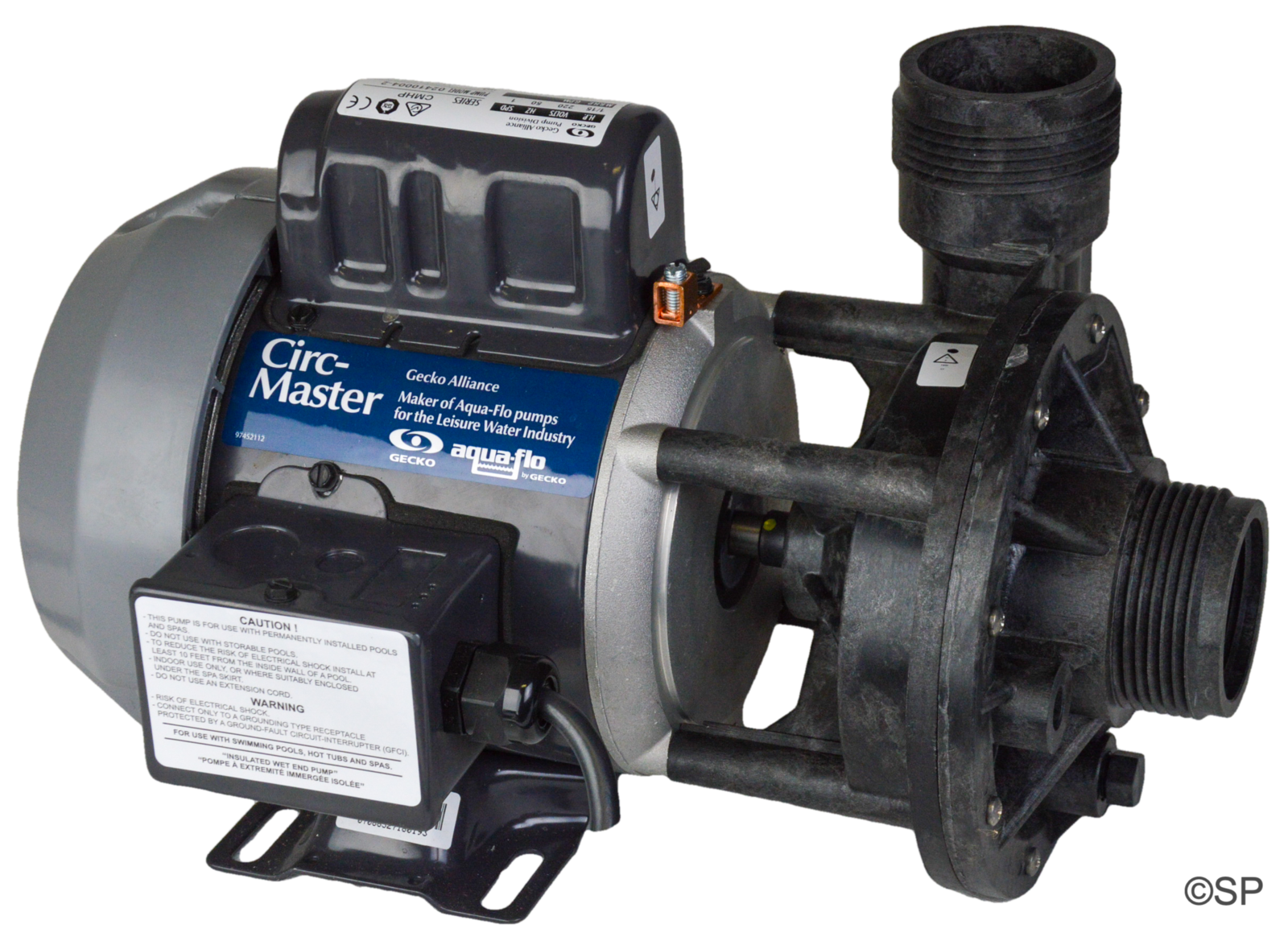

Image shows original Aquaflo pump for visual identification, and the replacement pump with fittings in subsequent images
