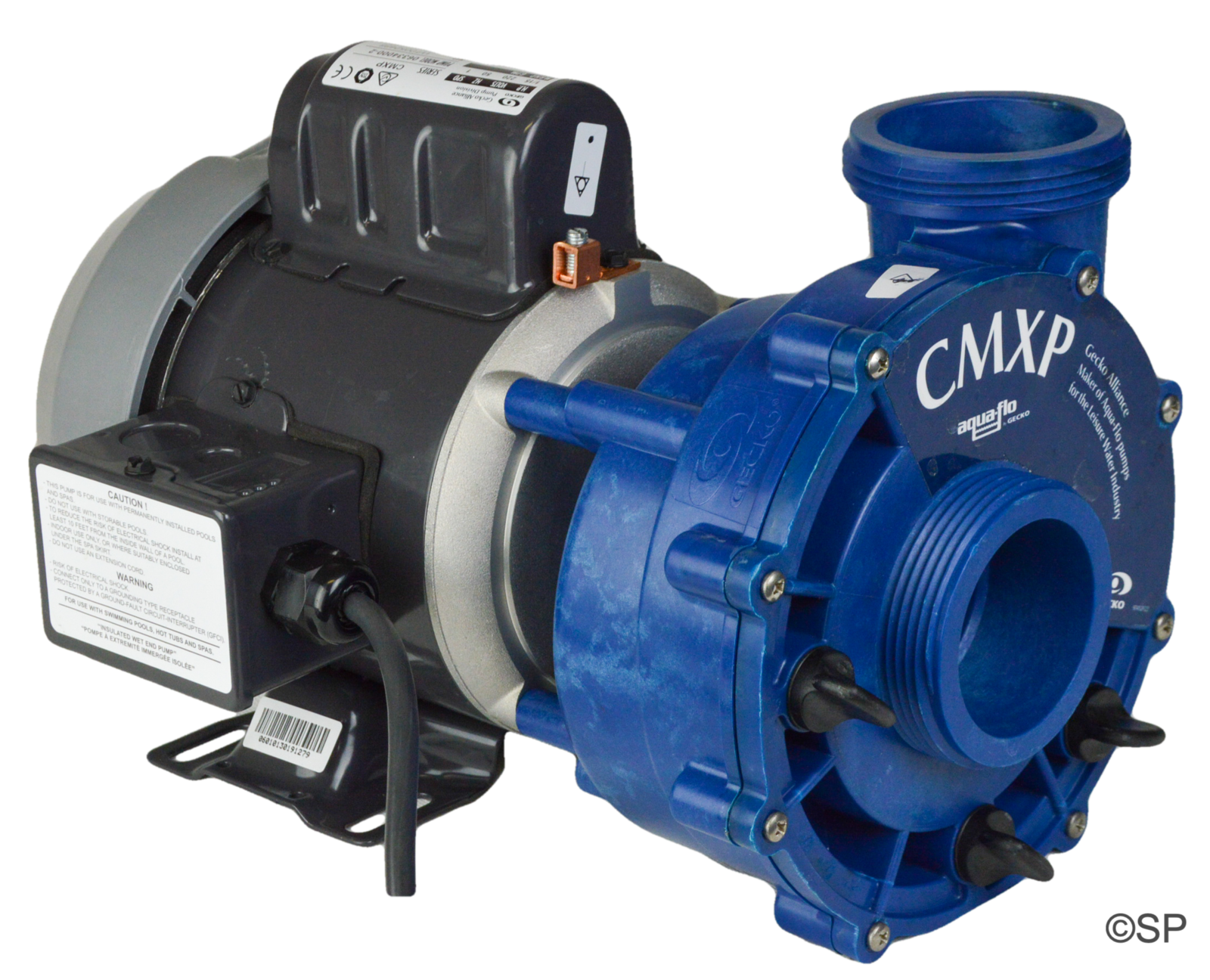

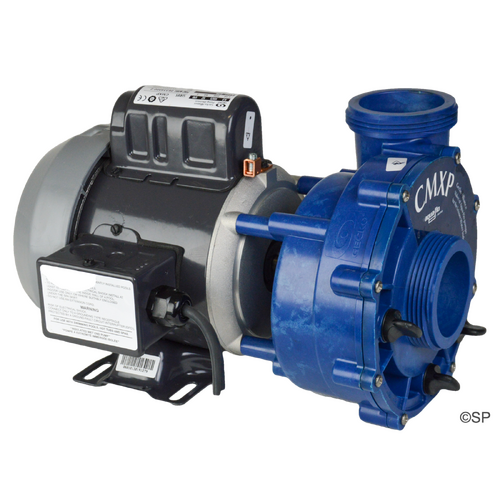

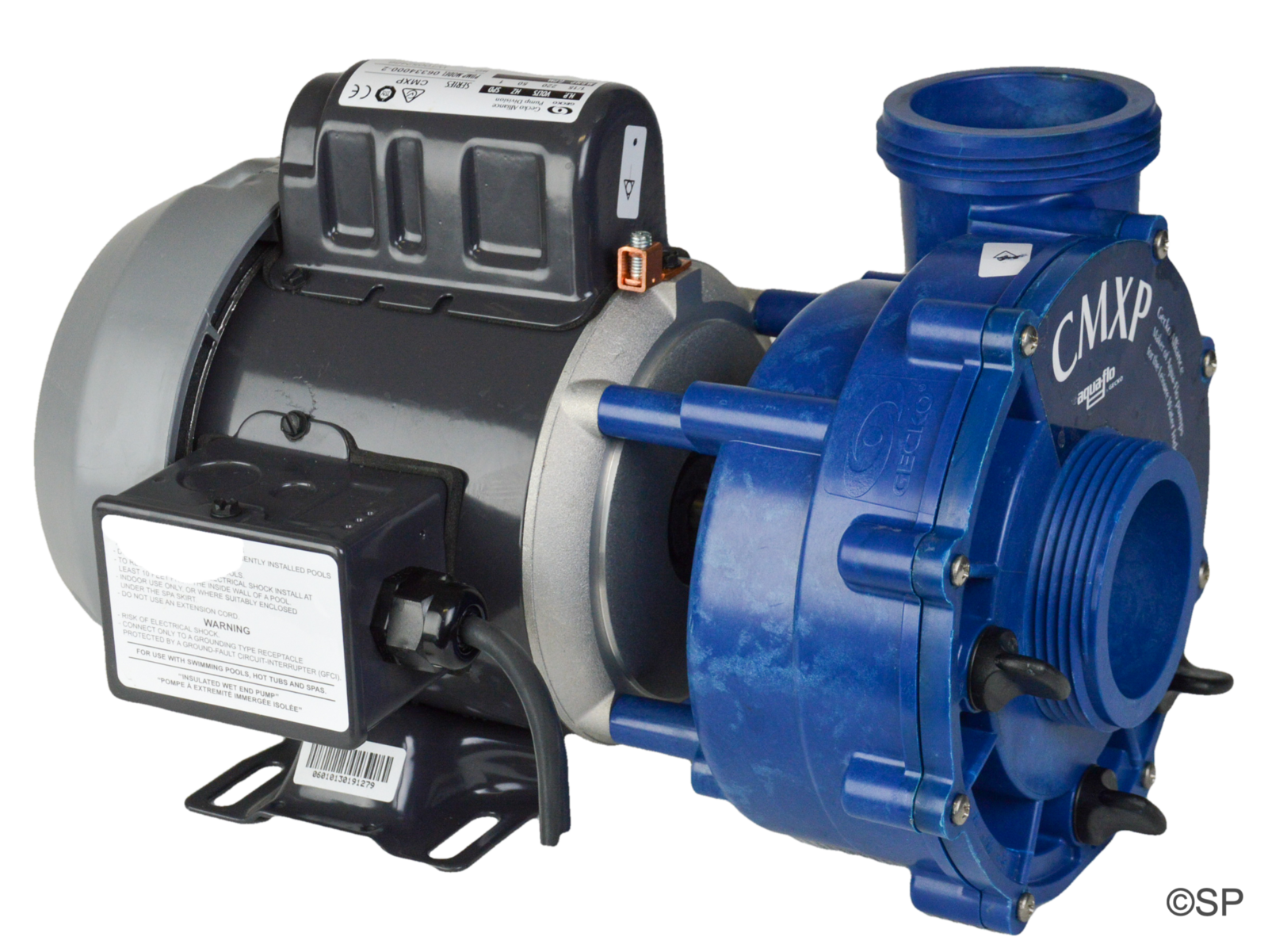

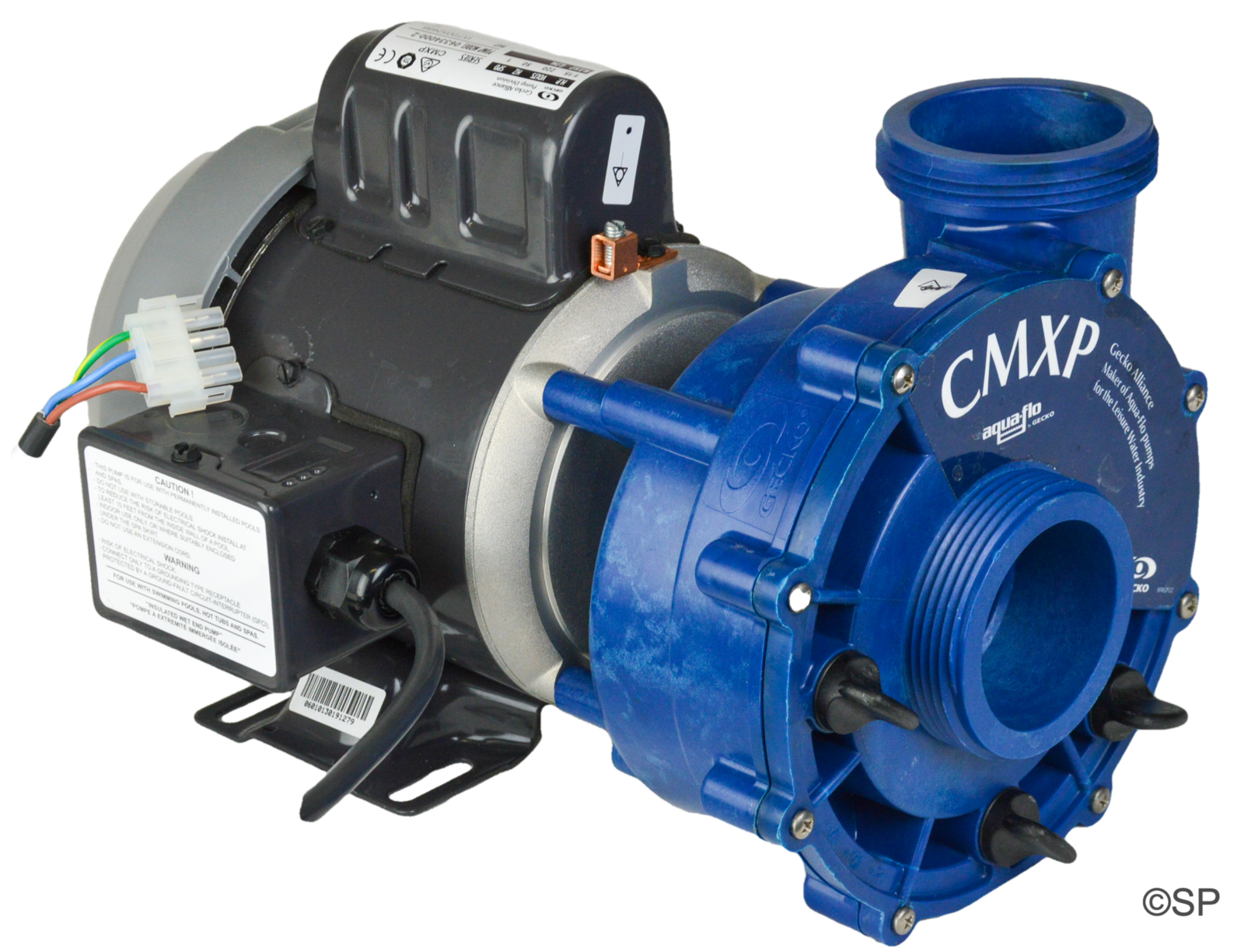

Aquaflo CMXP Circ Master 2" Circulation Pump 1/12th HP - 161w with AMP Balboa style plug - LARGER WET END SD6500-911

Aquaflo CMXP Circ Master 2" Circulation Pump 1/12th HP - 161w with AMP Balboa style plug - LARGER WET END SD6500-911

$880.00
Sold Out

SKU:
af06334000-2040
Brand:
Aquaflo
Shipping:
Calculated at checkout

Product Description

Aquaflo CMXP Circ-Master 4 pole high flow circulation pump
With large 2" XP2 wet end for superior flow rates whilst still running at lower power

SD6500-911
Sundance Spas and jacuzzi Hot Tub high flow circulation pump - side discharge. used on Sundance Spas - 2005+ 880 series.
Replaces Aquaflo XP2 06040000-2, 2" xp2 48 fr pump wet end with Emerson K55MYKHF-9557 motor.
Over 150 lpm
240v, 50Hz,
1/12hp, 0.7A,
1425 rpm

** this is an Aquaflo Circ-Master pump with 2" unions / XP2 wet end. Do not confuse with standard Aquaflo Circ-Master pump with 1.5" unions / FMCP wet end used on Spa Industries Spas such as Signature, Designer, Leisurerite, Cyclone and a number of other spas **

18 month warranty
