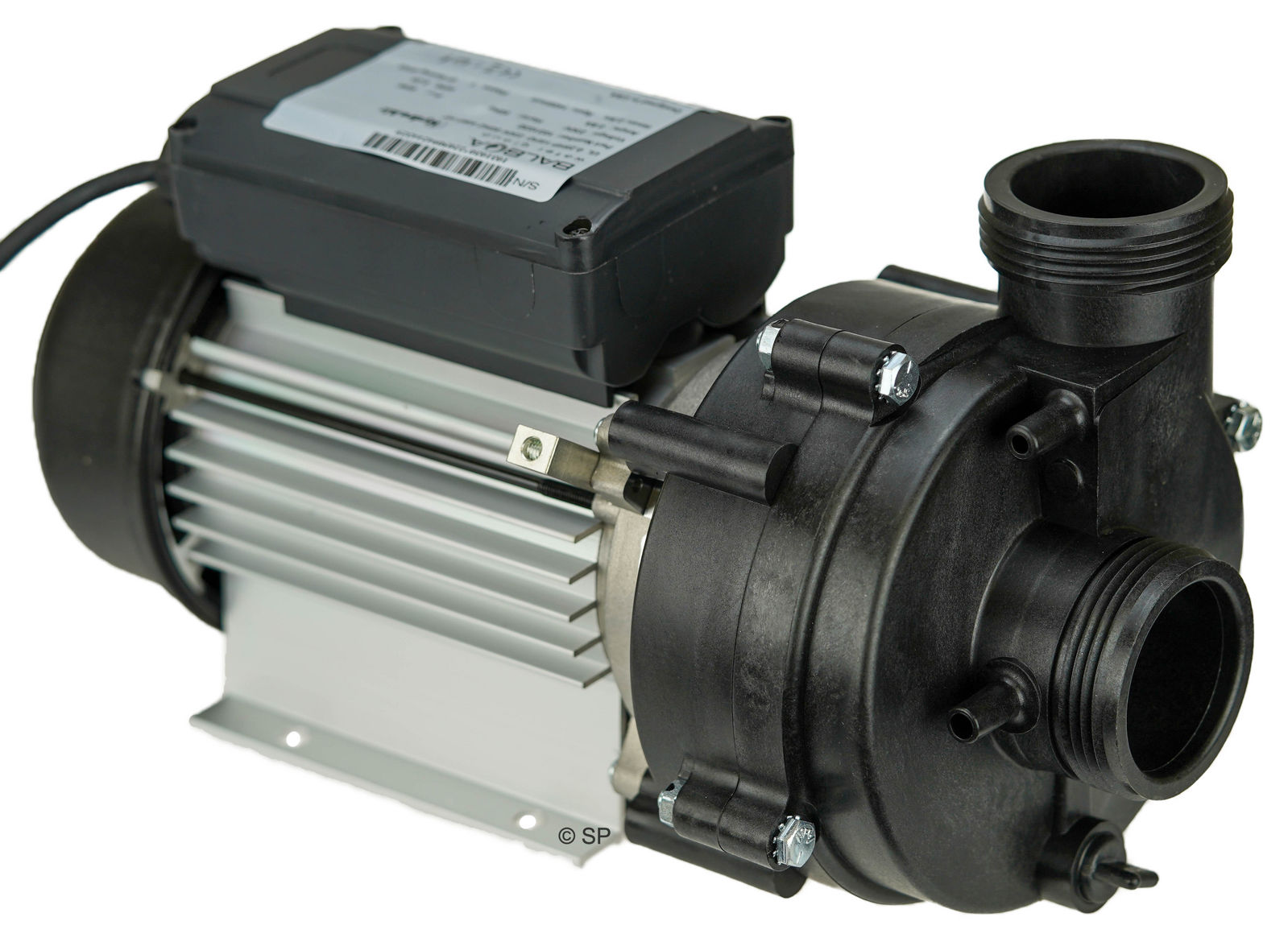

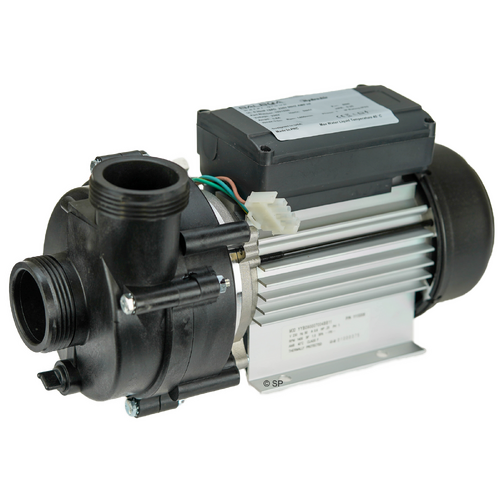

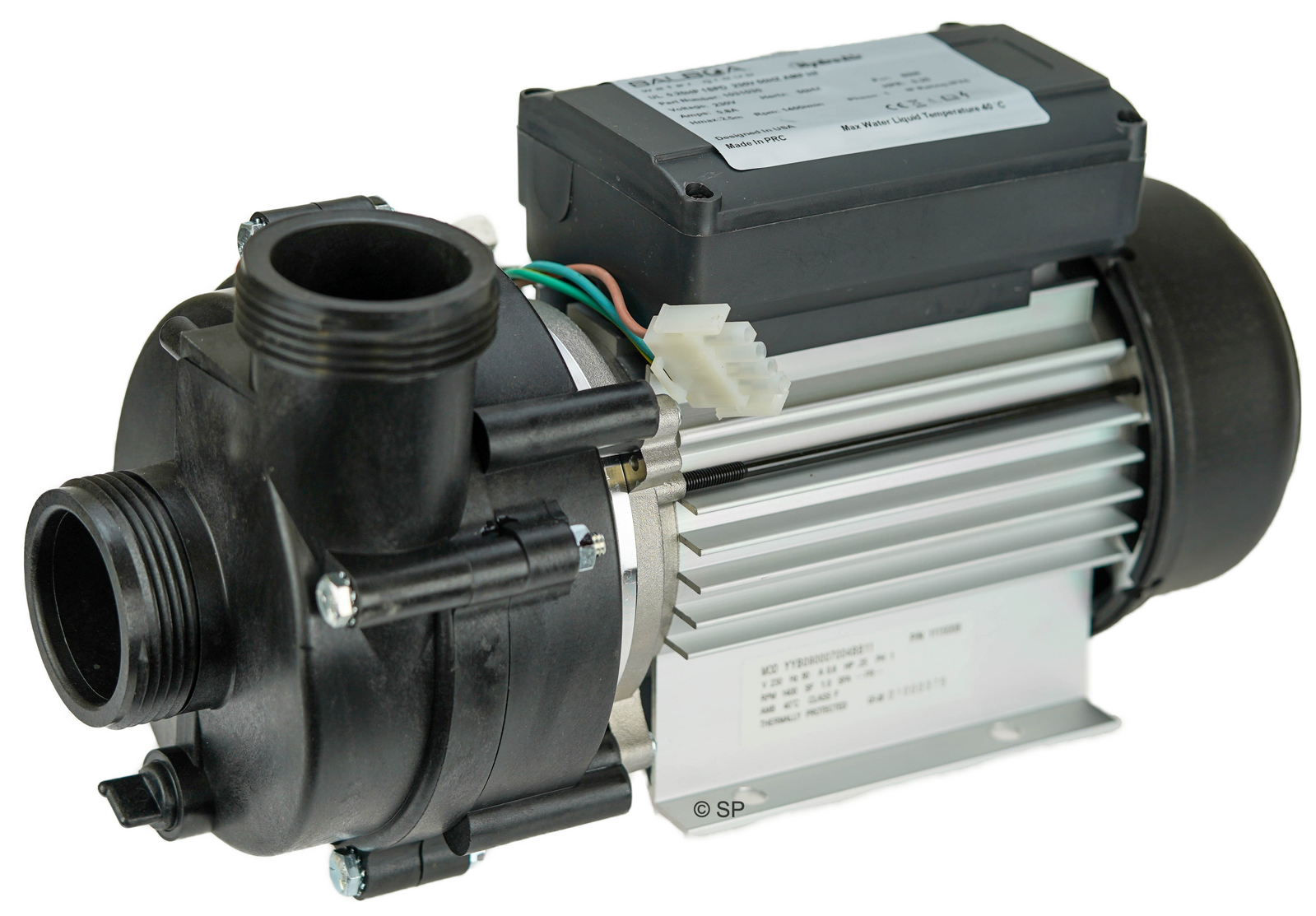

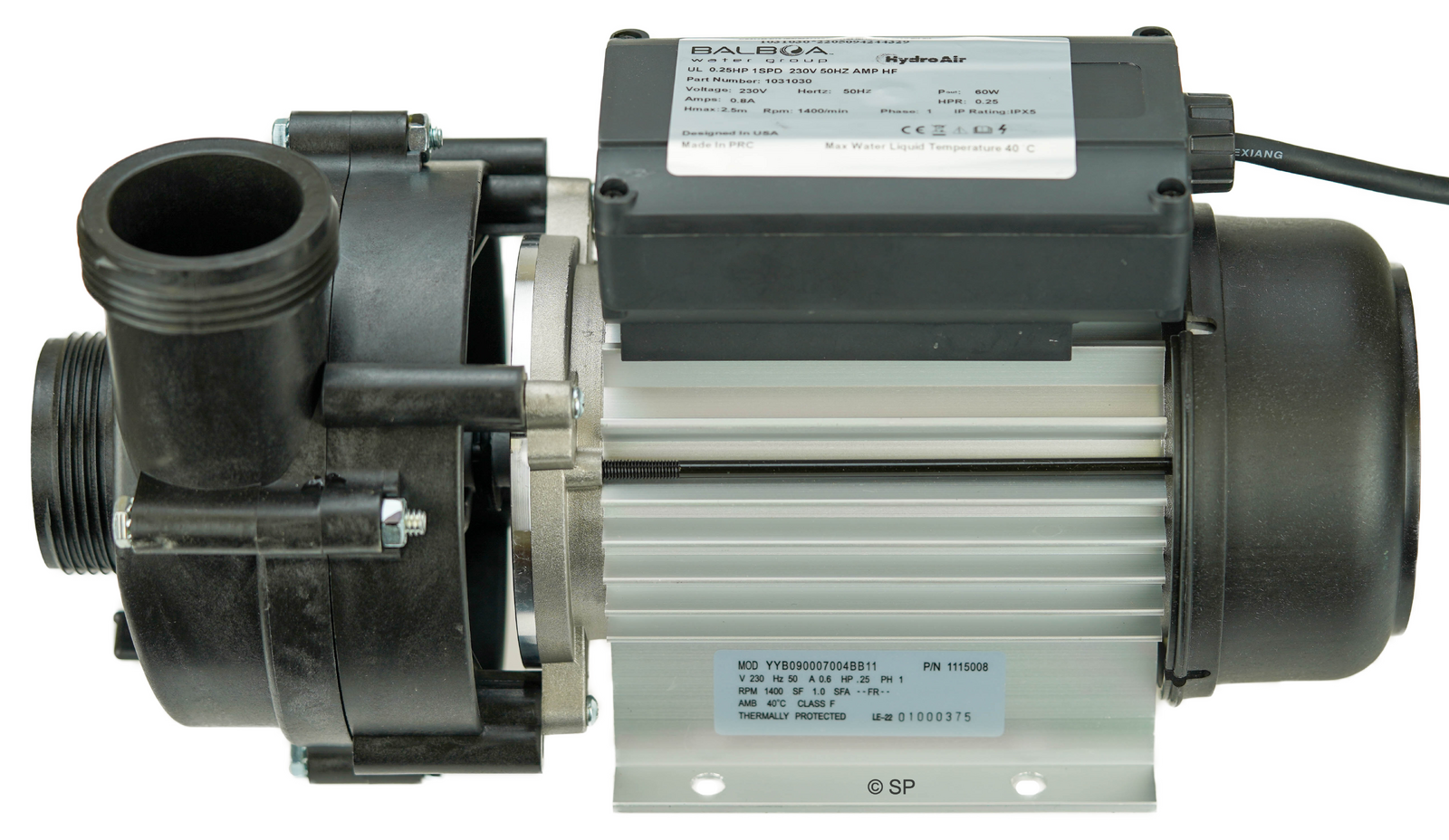

Balboa Ultima High Flow Circulation Pump with YYB motor

Balboa Water Group Ultima high flow circulation pump with AMP cord.

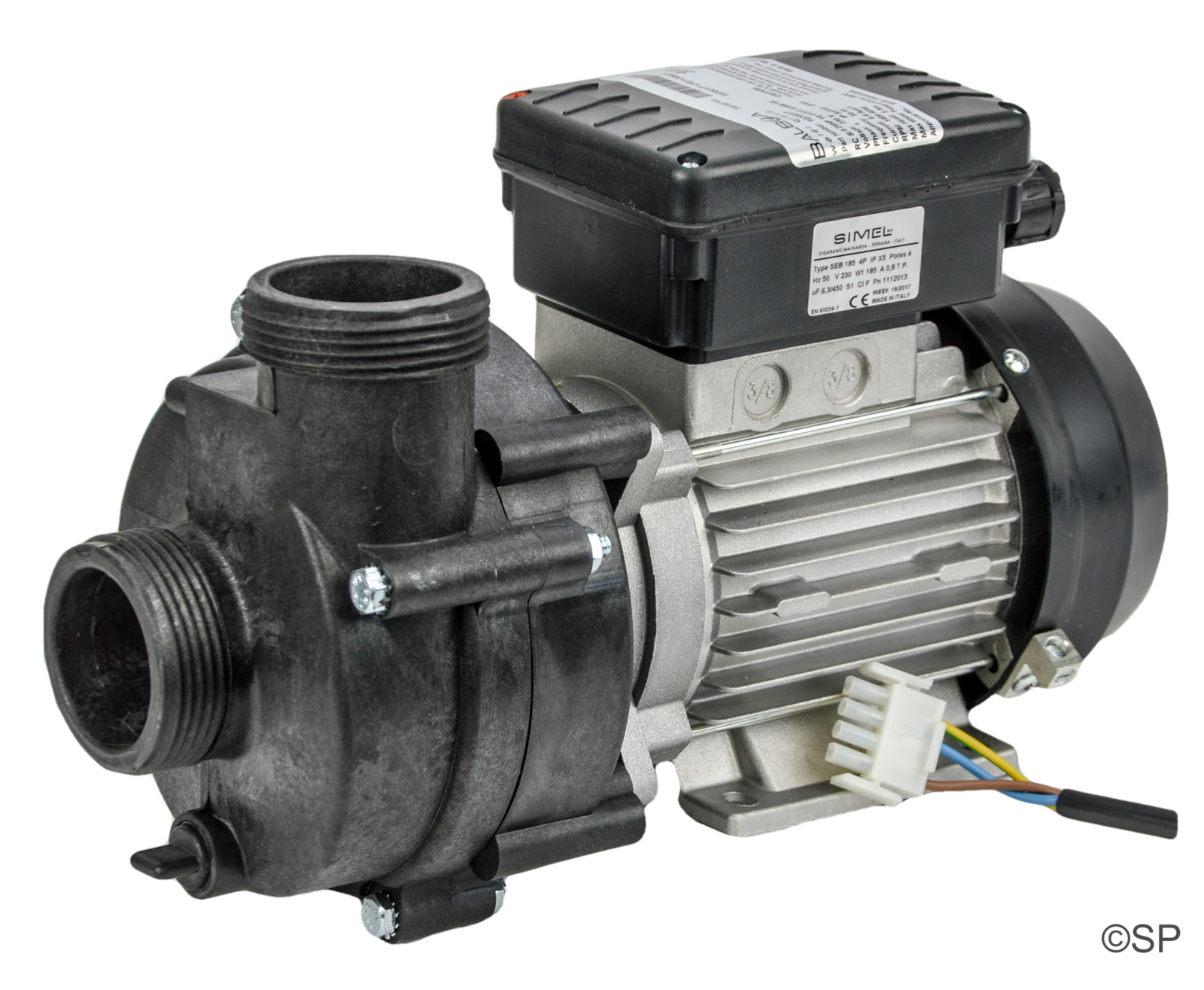

Previously sold under SKU b1030017 and b1070017 with a different motor (see 4th image which depicts the older design with Simel motor)
This new model is approx 30mm longer than the earlier models.

340mm long x 175mm high x 160mm wide
Standard with short 1.1m AMP lead.
Available with longer 2.0m AMP lead.

NB Unions not supplied - available separately

Motor rating: 0.25hp, 230v, 50Hz, 0.8A, 1400 rpm, 6uF cap
