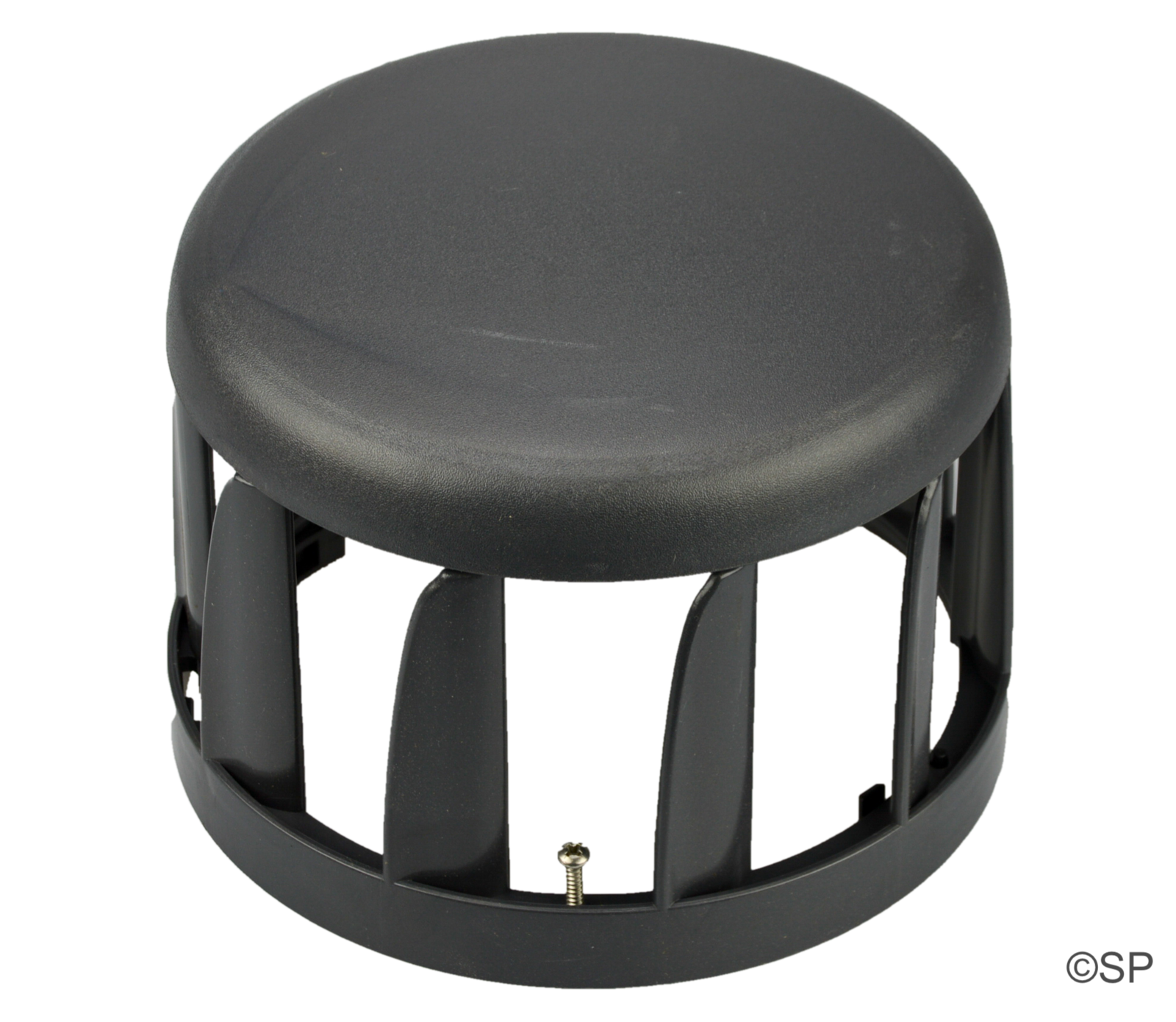

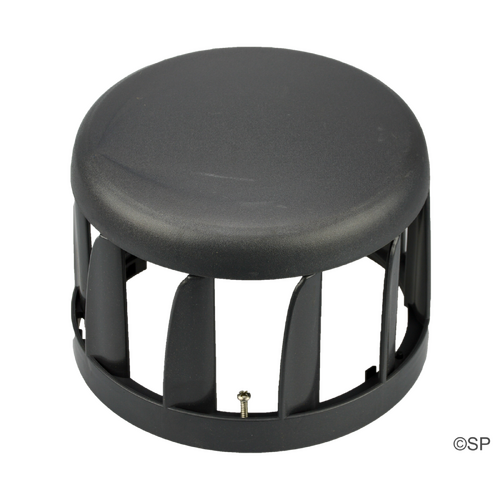

Telescoping Weir Top Mount Filter Vane Weir - Graphite Grey

CMP ( Custom Molded Plastics ) Elite telescoping weir top mount filter VANE WEIR - required to make standard Elite telescoping filters legal and safe for use in Australia.
Used in numerous spas that have used CMP filters.
Used in Maax Spas, and others
Suits top mount skim filters manufactured by:
CMP
Waterway Plastics
Rising Dragon

Lid clips off.
188mm diameter cap.
196mm outer diameter vane base secured with 2 x swing out tabs.
Also required to be screwed in place with a SS screw.
140mm high overall

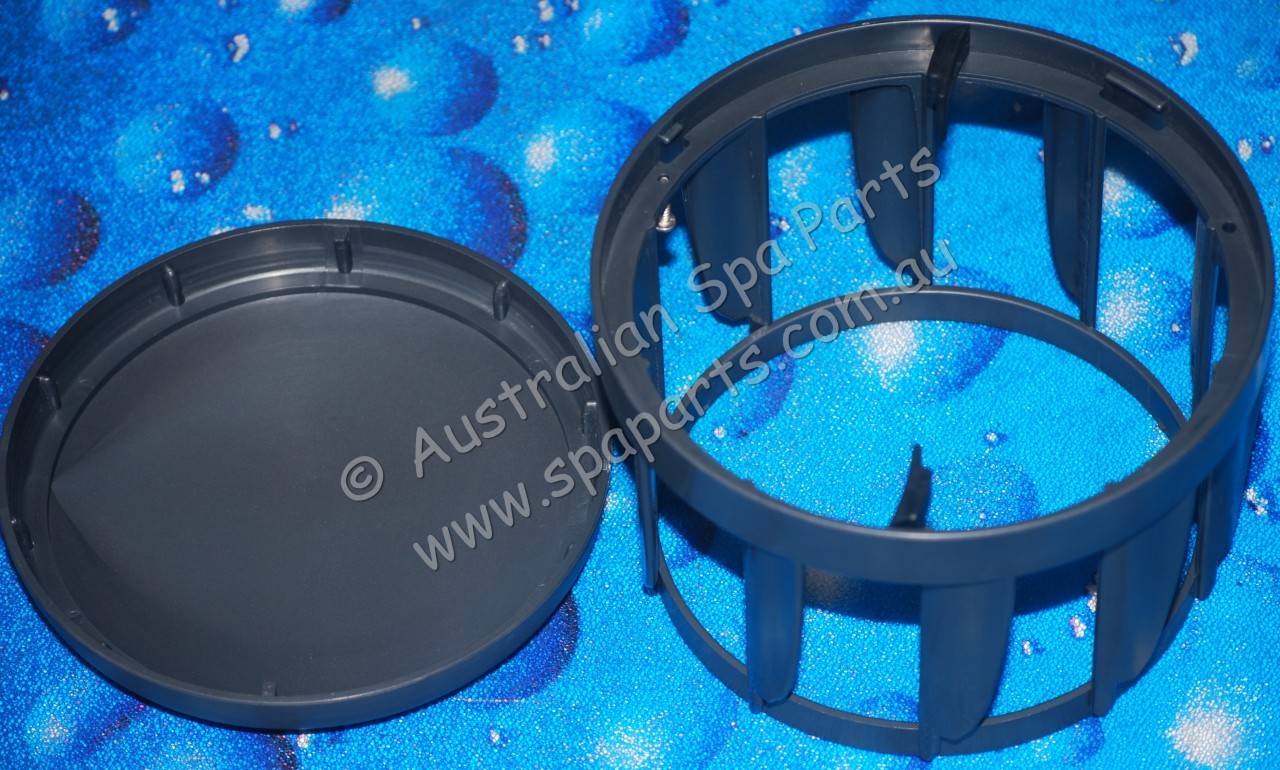

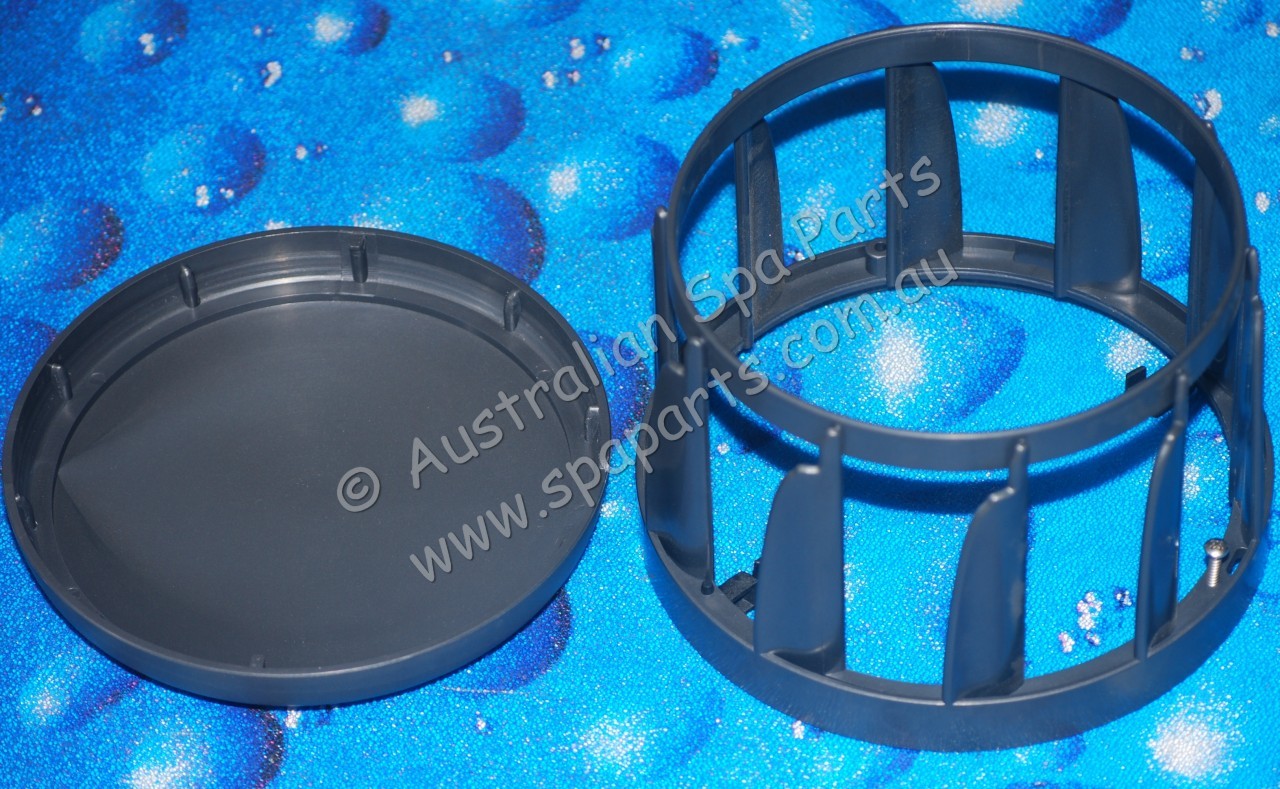

Once the Vane frame assy is secured to the filter housing, cartridge access for cleaning / replacement is gained by unclipping the cap to expose the cartridge.
