Hydroquip Mini J&J Cord - Pump 1 Two Speed 1.2m

$49.50
In Stock

39 In Stock

SKU:
hq30-0220-48
Shipping:
Calculated at checkout


Product Description

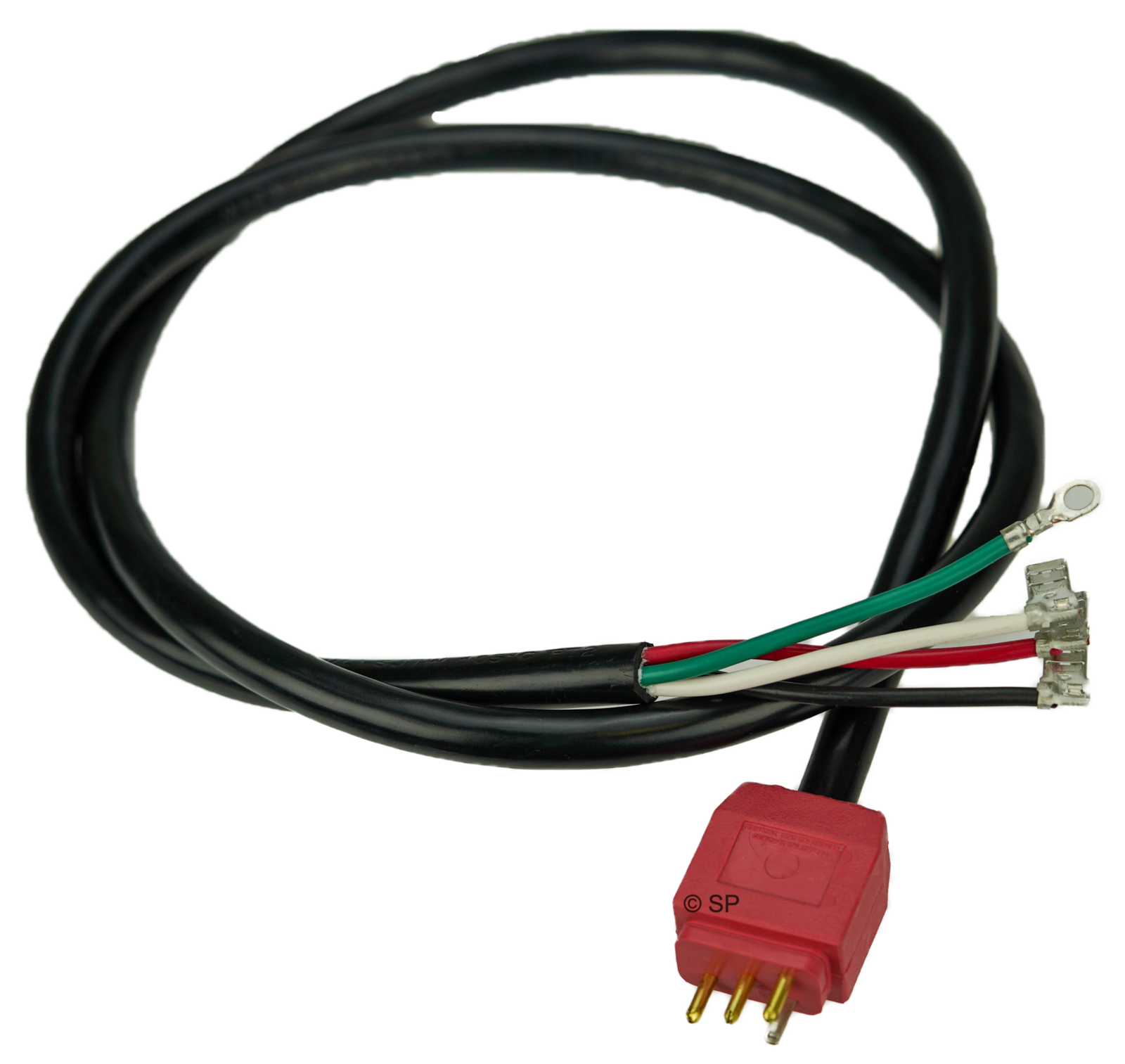

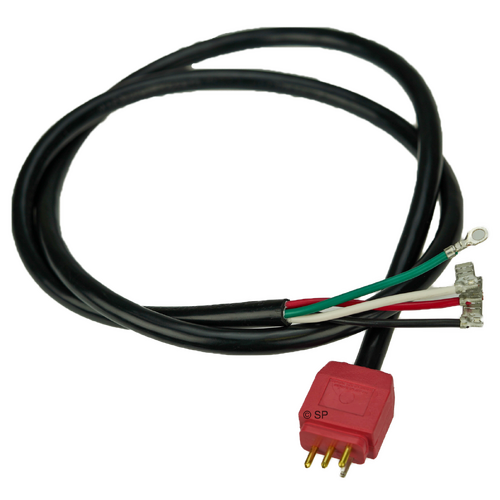

Mini J&J 2 speed pump 1, short 1.2m power cord

NOTE: this cord is 1.2m long - shorter than most original cords but usually still suits most applications.

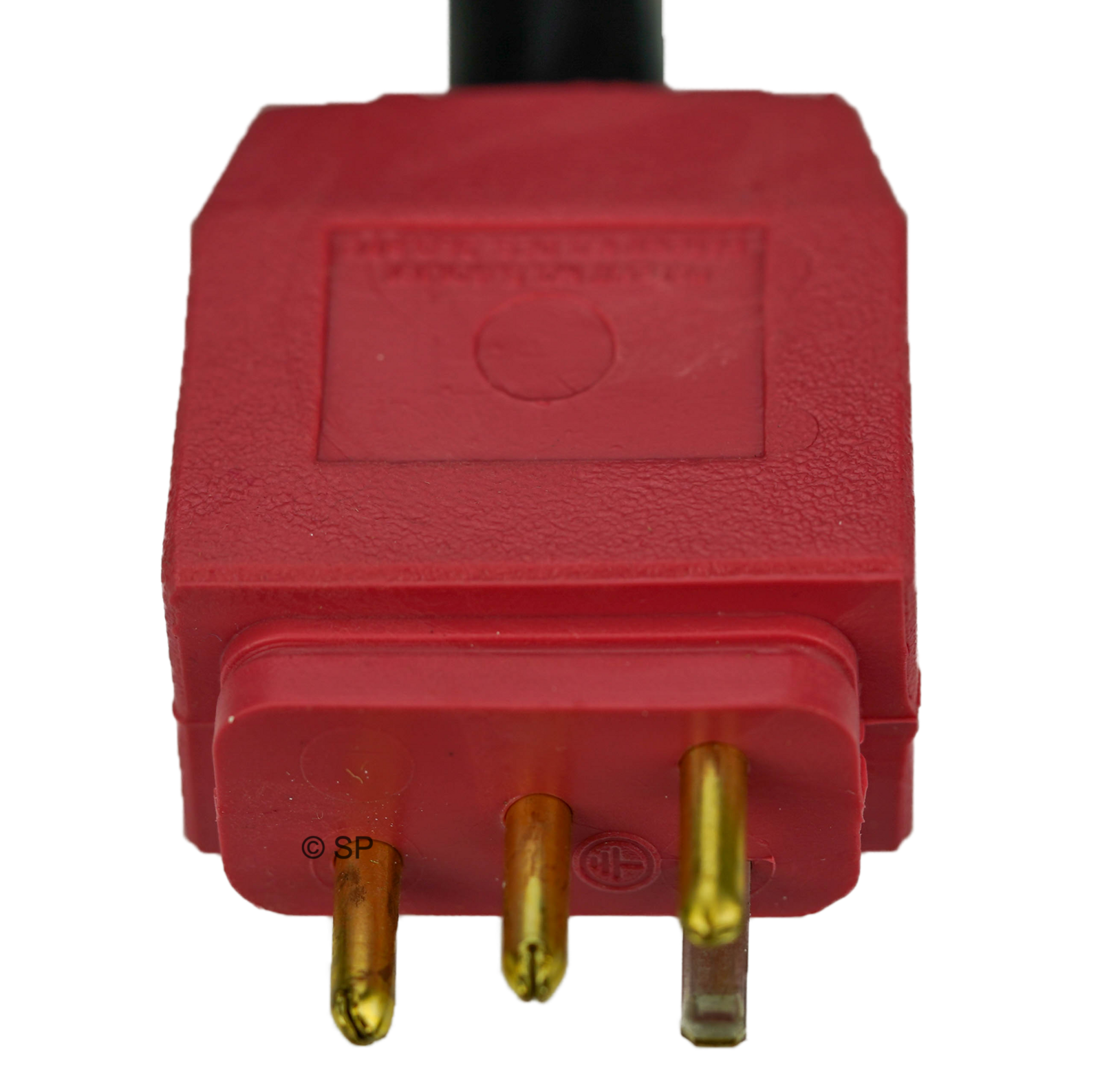

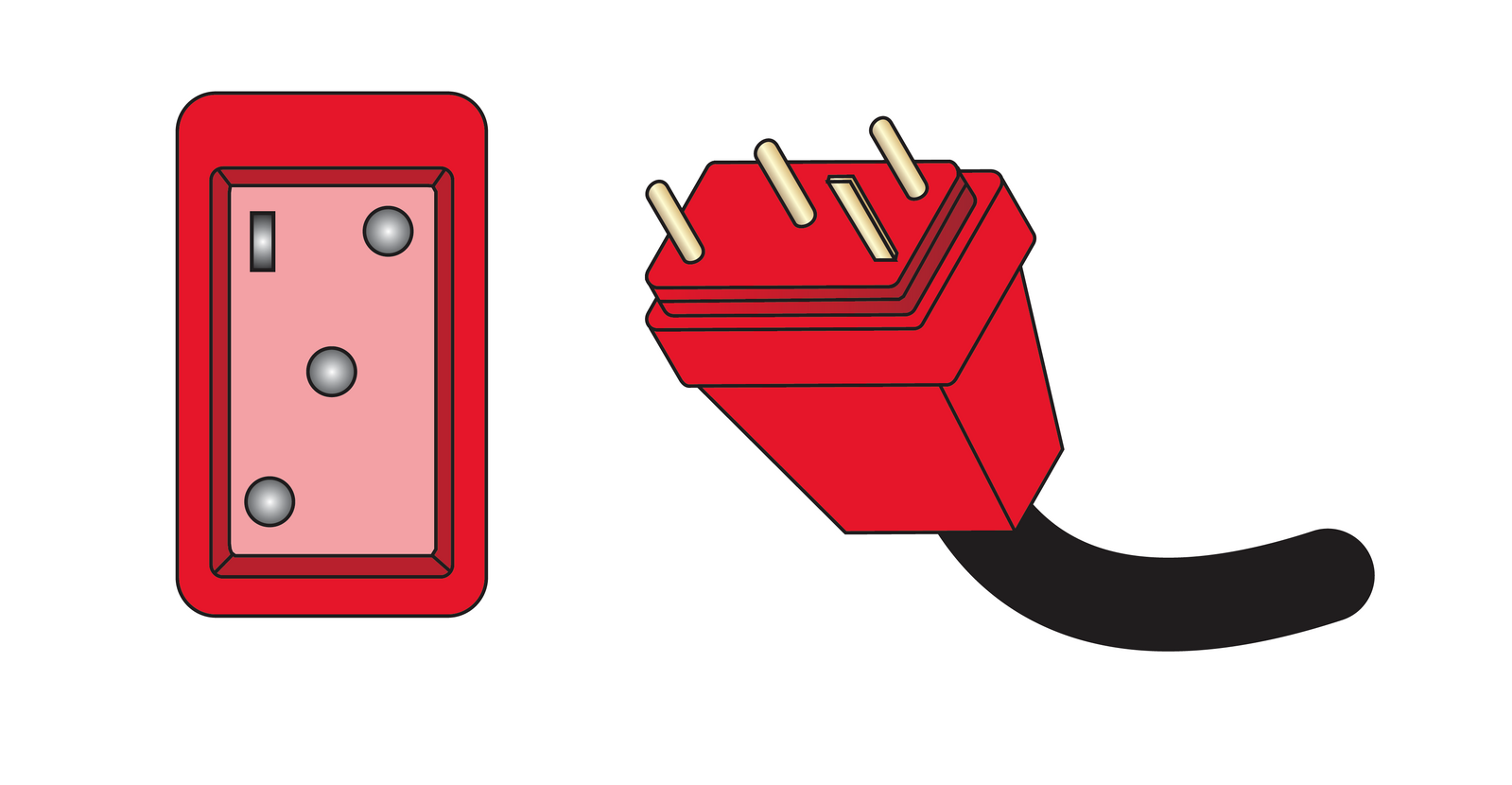

4 pin plug with 3 round pins on diagonal and 1 flat earth pin

Wire Colours - Cords of all Plug types can be supplied with different inner wire colour combinations. All are perfectly fine to use but can be confusing.

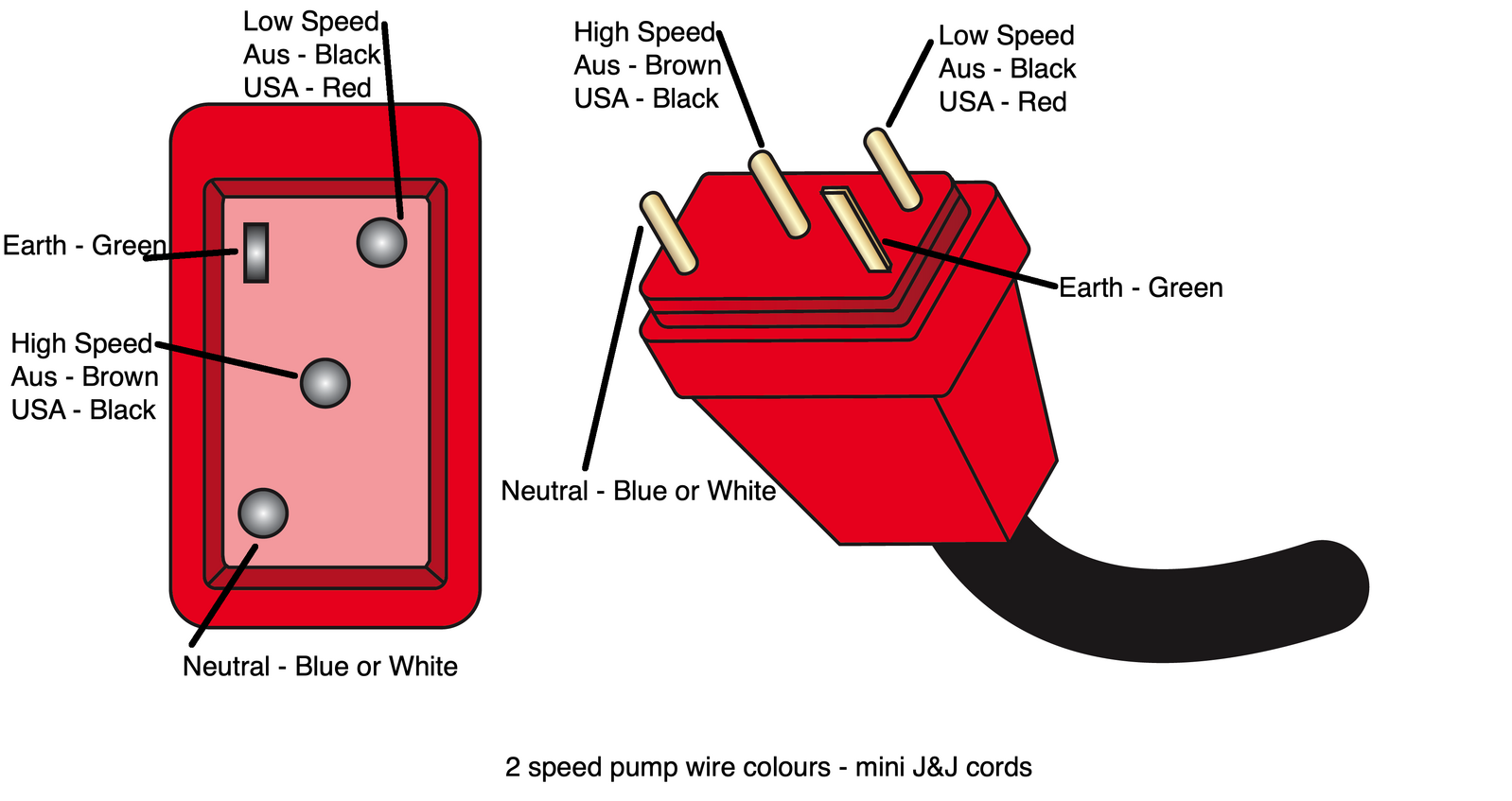

Correct colour coding
Earth - Green or Green/Yellow
Neutral - Blue or White
Low Speed of a 2 speed pump - Black
High Speed of a 2 speed pump - Brown or Red
Active - for 1 speed pump, air blower, ozone, etc - Brown or Black

For 2 speed pumps from LX and Davey/Spaquip - I'm not sure why, but these companies bucked the industry trend and reversed the factory supplied cord colours as follows:
Low Speed - Brown
High Speed - Black
Care must be taken when changing cords on these pumps to ensure the correct configuration (this may mean switching colours for low/high speed - Neutral and Earth always remain the same)


Use on 2 speed pumps for connection to numerous makes and models of spa control systems including:
Gecko Microspa, S-Class and M-Class
Spaquip Spa Power 750, Spa Power 1000, Digital 2000
Hydroquip CS7500, CS6207, CS6237, CS9707
Spa Builders LX10, LX15, LX25
Balboa pre M7 controllers - SIG10, SIG10L, SIG100, SIG200, SIG500, MAX100, MAX500
