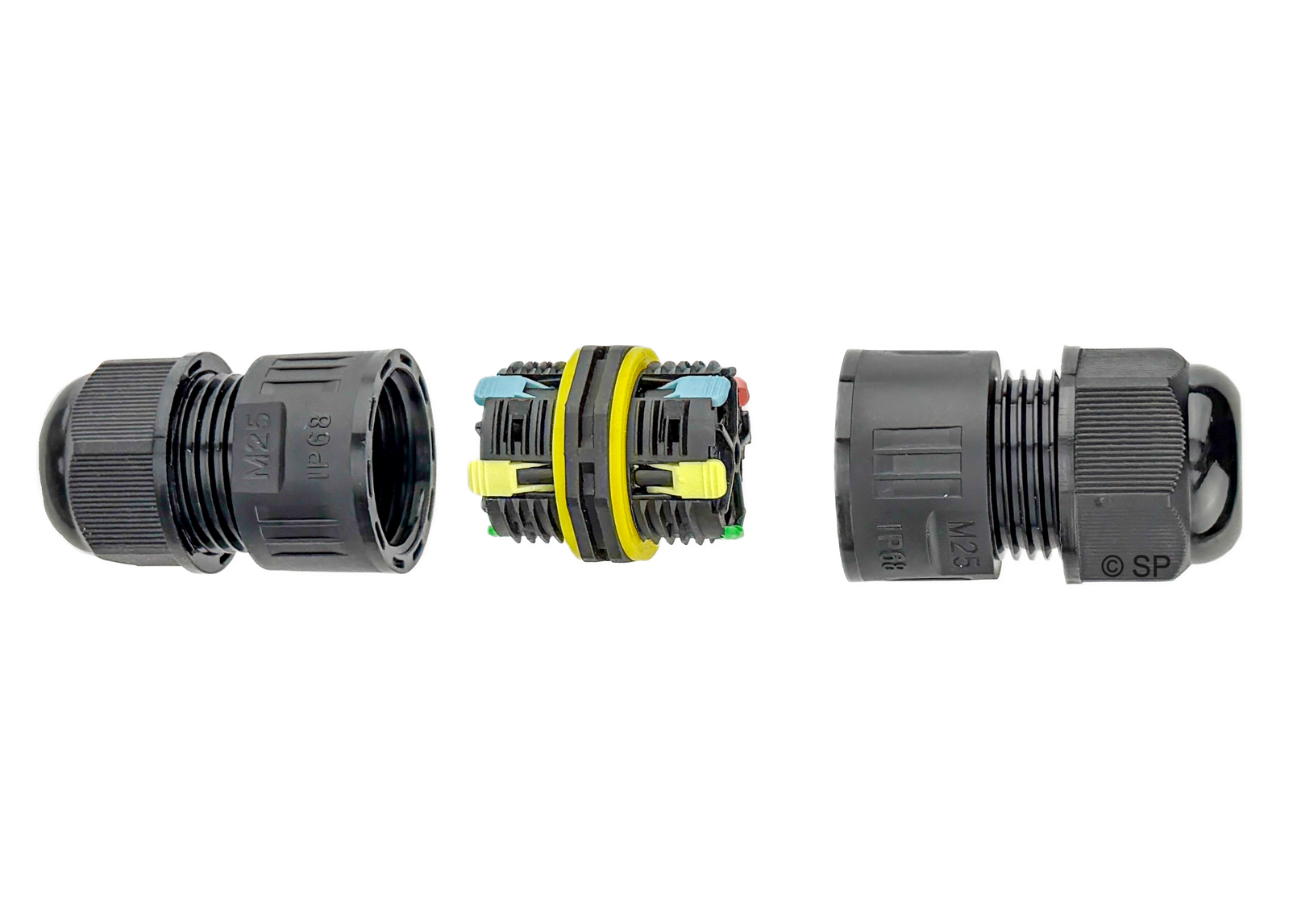

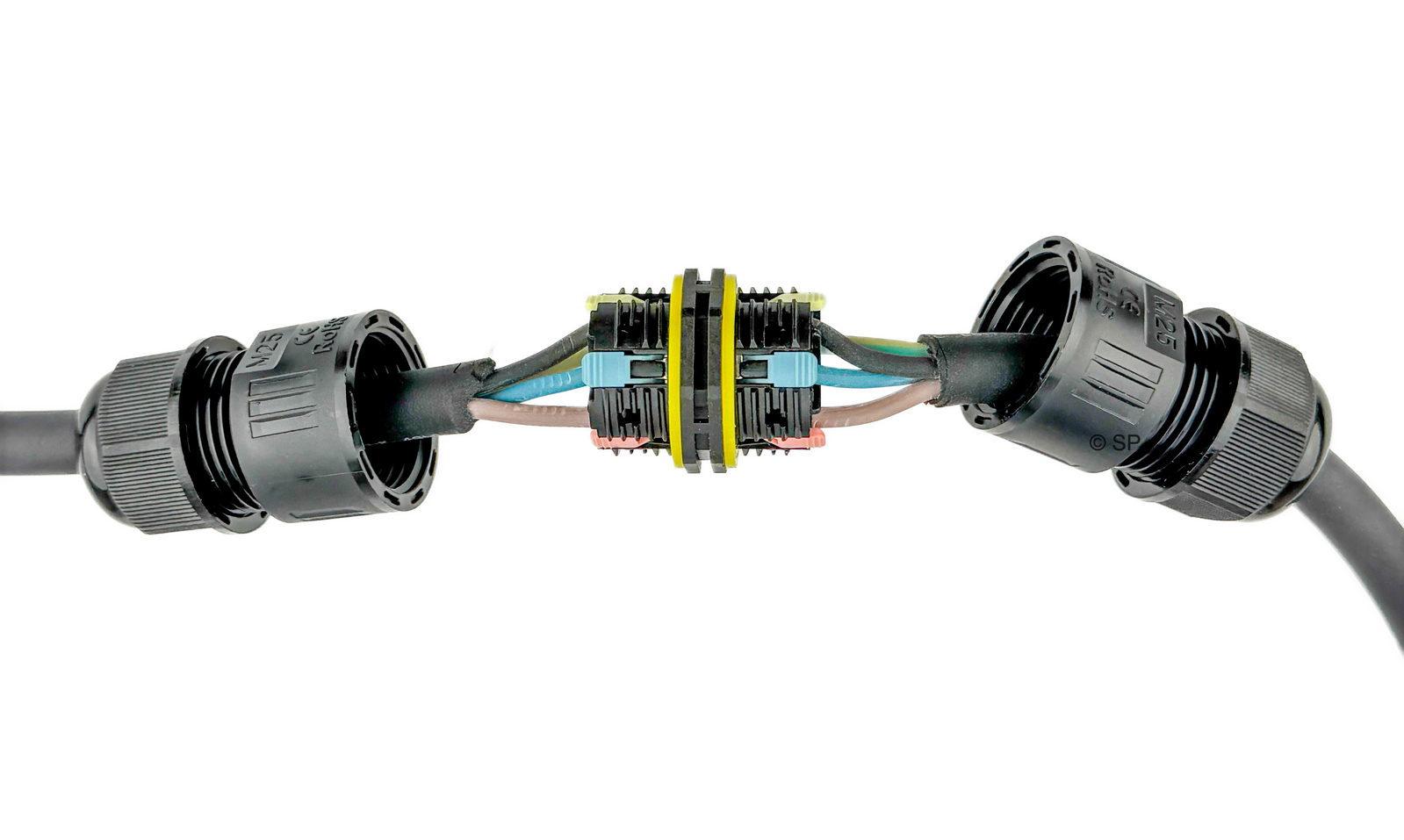

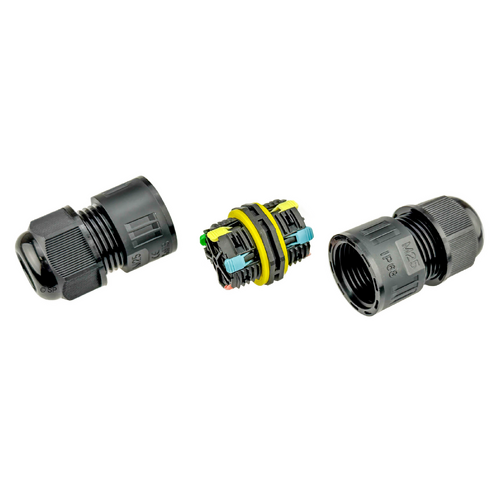

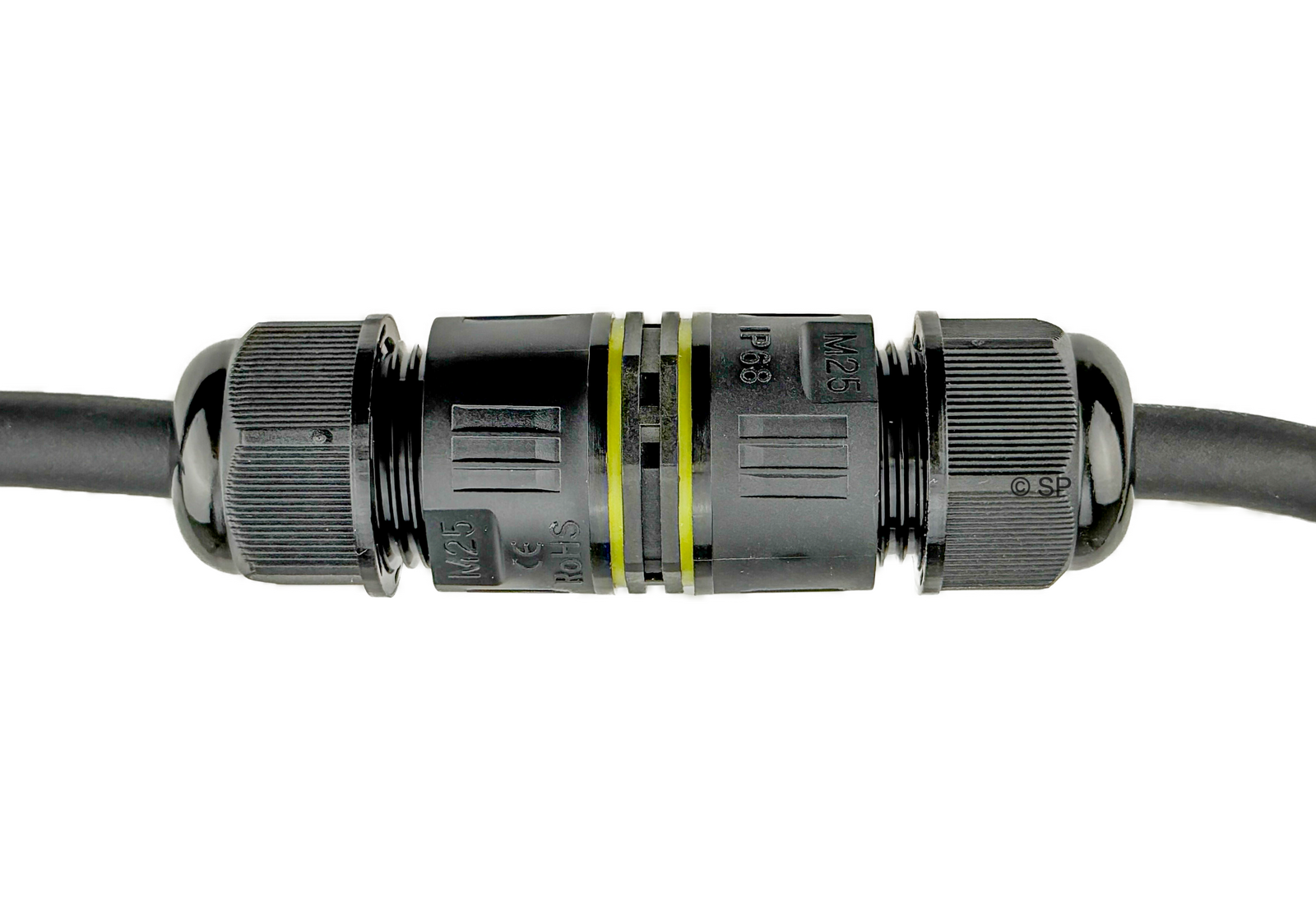

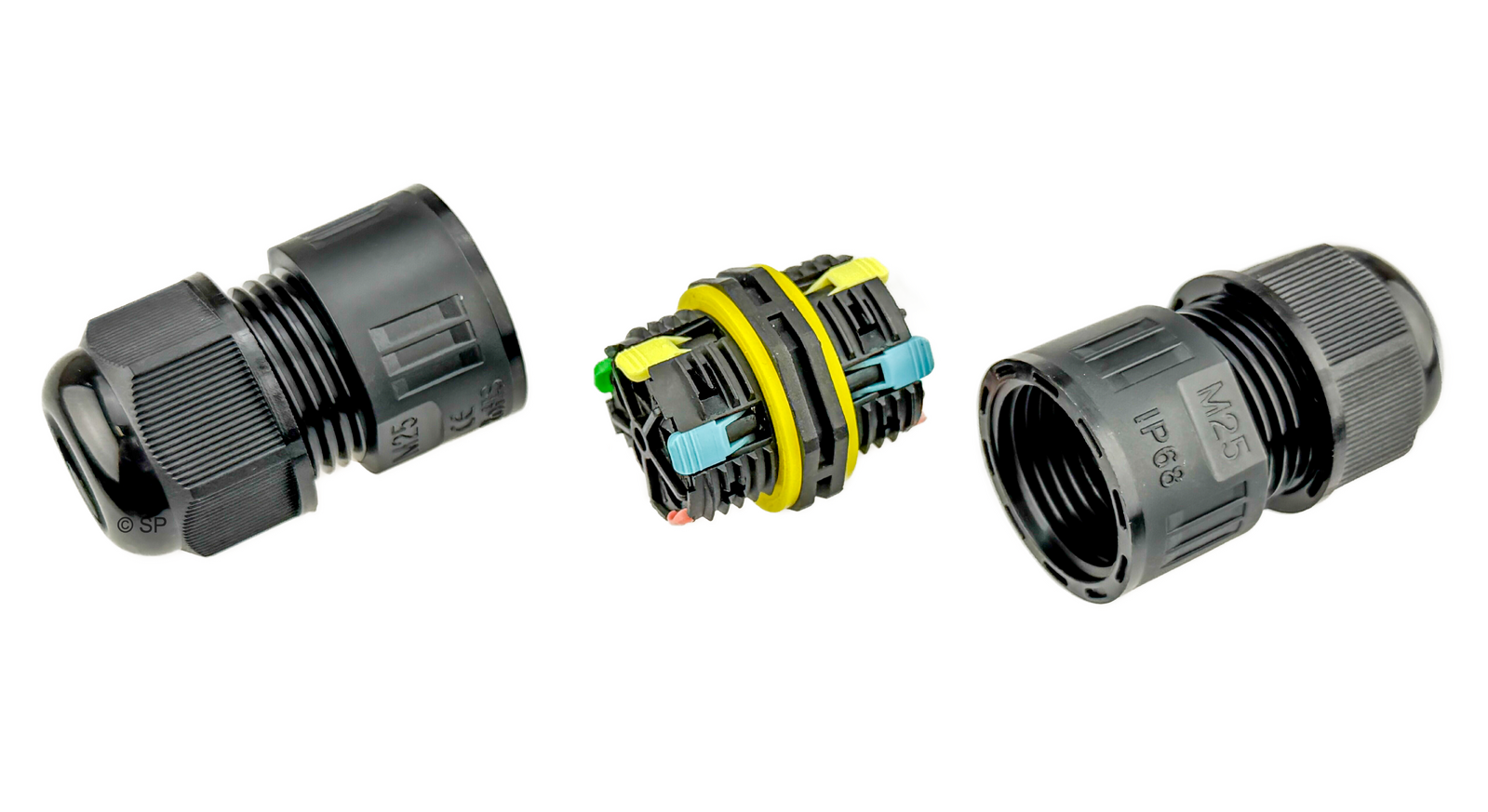

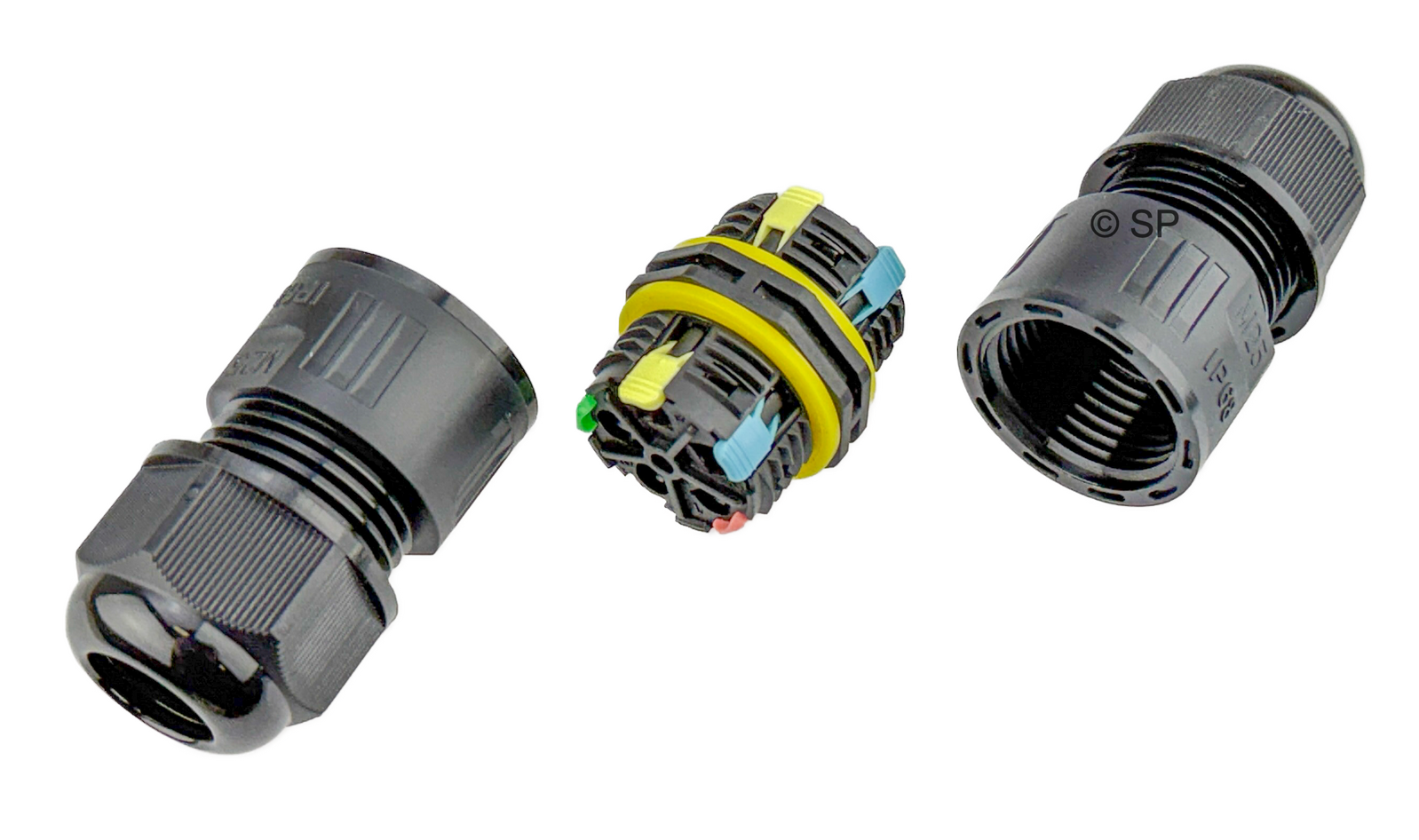

Weatherproof IP68 inline cable connector 25A rated 4 core for Two Speed Pump cables

Extend or join 4 core Two Speed Pumps, (or 3 core Single Speed Pumps with larger diameter outer sheath)

Waterproof IP68 power cable joiner
4x spring loaded terminals 1.0mm2 - 4mm2 wire 400V 25A max
Suits cable outside diameter 10-14mm Ø
Nylon glass fibre reinforced PA66
Can be silicone gell flooded

NB Do not assume the same colours match when using this connector.
2 speed pump wiring colours can vary and are often transposed. Incorrect connection may lead to damage to the motor, circuit board or blown fuse.
In particular low and high speed can be Black/Brown or Brown/Black. The wiring on the motor terminals needs to be checked and matched to corresponding colours on the extended plug.

Wire Colours - Cords of all Plug types can be supplied with different inner wire colour combinations. All are perfectly fine to use but can be confusing.
Correct colour coding depends on Aus/euro or North American colour coding

North American cords
Earth - Green
Neutral - White
Low Speed of a 2 speed pump - Black
High Speed of a 2 speed pump - Red

Australia/Europe cords
Earth - Green or Green/Yellow
Neutral - Blue
Low Speed of a 2 speed pump - Black (or Brown)
High Speed of a 2 speed pump - Brown (or Black)
Pumps from LX and Davey/Spaquip - reversed factory supplied cord colours as follows:
Low Speed - Brown
High Speed - Black
Care must be taken when changing cords on these pumps to ensure the correct configuration (this may mean switching colours for low/high speed - Neutral and Earth always remain the same)

*Tighten with spanners to ensure waterproofing, strain relief and prevent unscrewing by hand.
Ensure cables are stripped sufficiently and held tight with the terminal latches closed.
