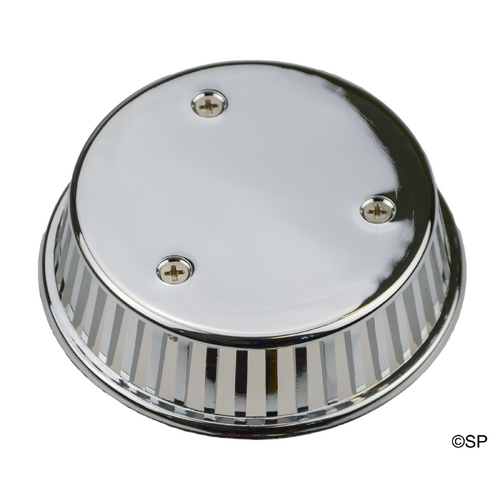

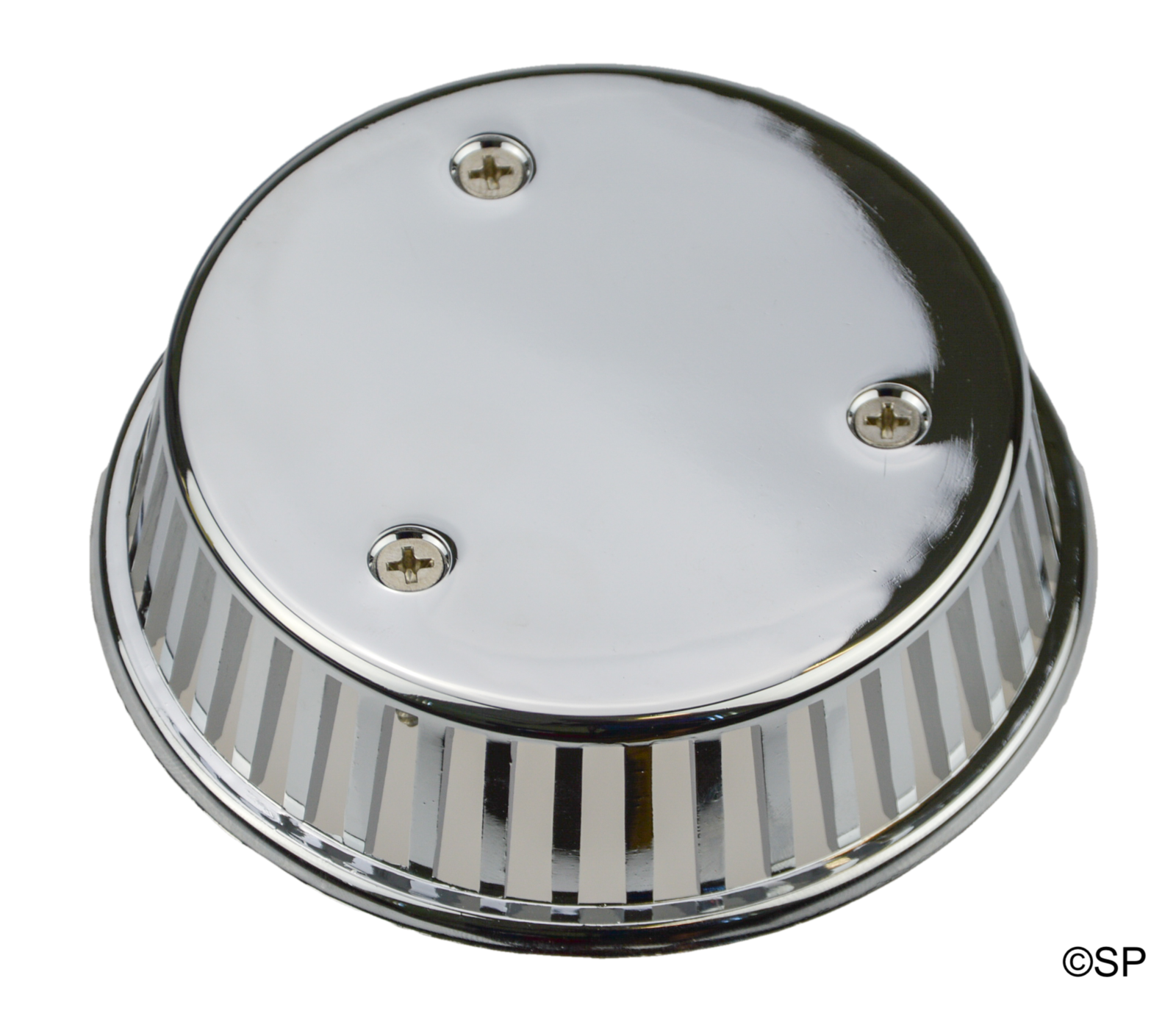

S&P Chrome plated ABS Plastic Spa Bath Suction Cover
S&P Chrome spa bath suction
Replaces many spa bath suctions for chrome upgrade - replaces both plastic and metal suction covers with 3 screws from S&P and Onga - 40mm thread (approx 48mm OD)

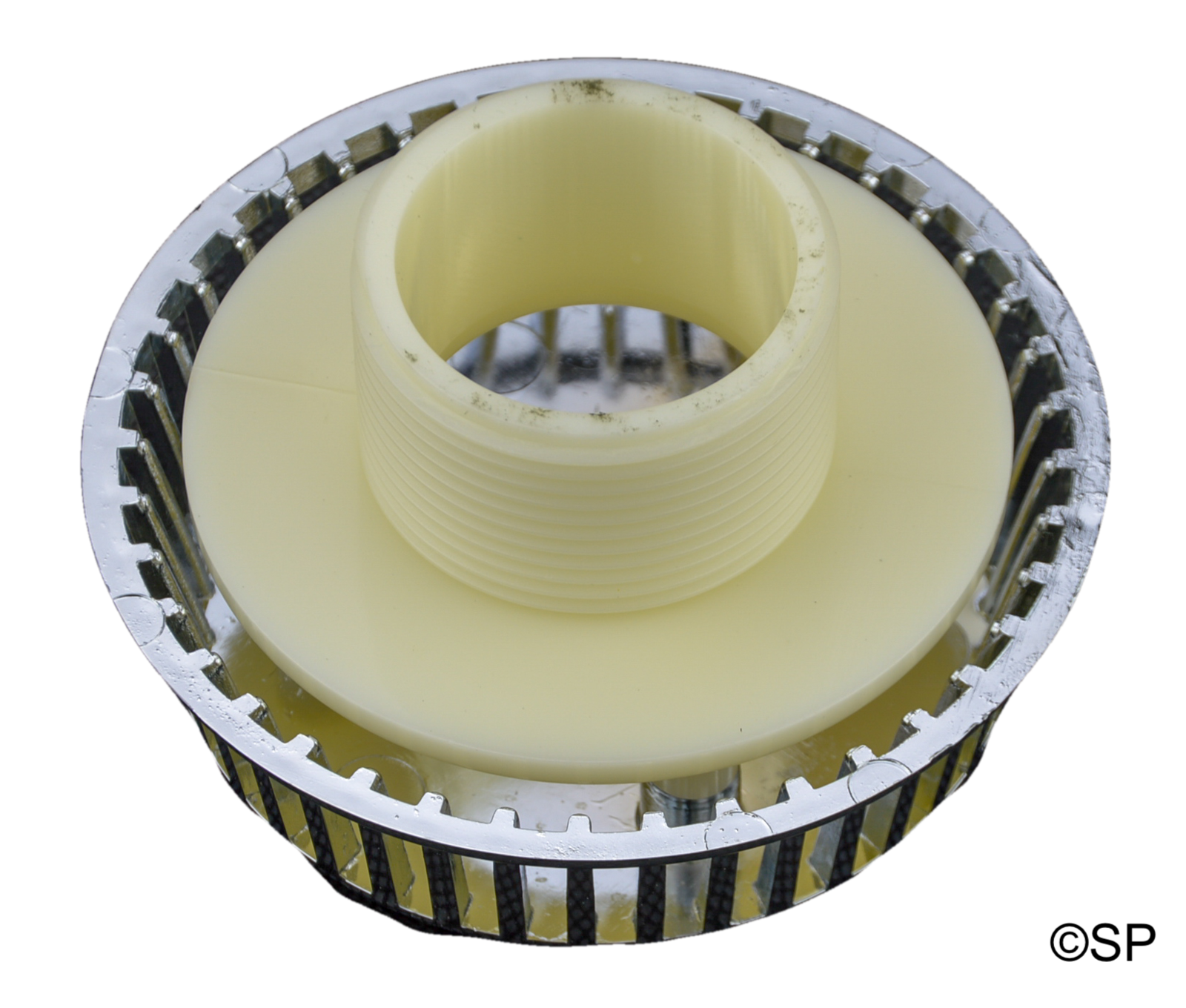

S&P Supa Suction - CHROME - 40mm BSP thread (47mm OD thread)
85mm x 100mm OD faceplate diameter,
cover screws are 50mm apart
Threads into 40mm BSP faucet adaptor or elbow fittings, or any other female 40mm BSP fitting
Hole size required - 50mm Australian Approved flow rate is 168 litres per minute.
CAUTION - Most pumps exceed this flow rate. You may need to fit multiple suctions of this type if chosen.

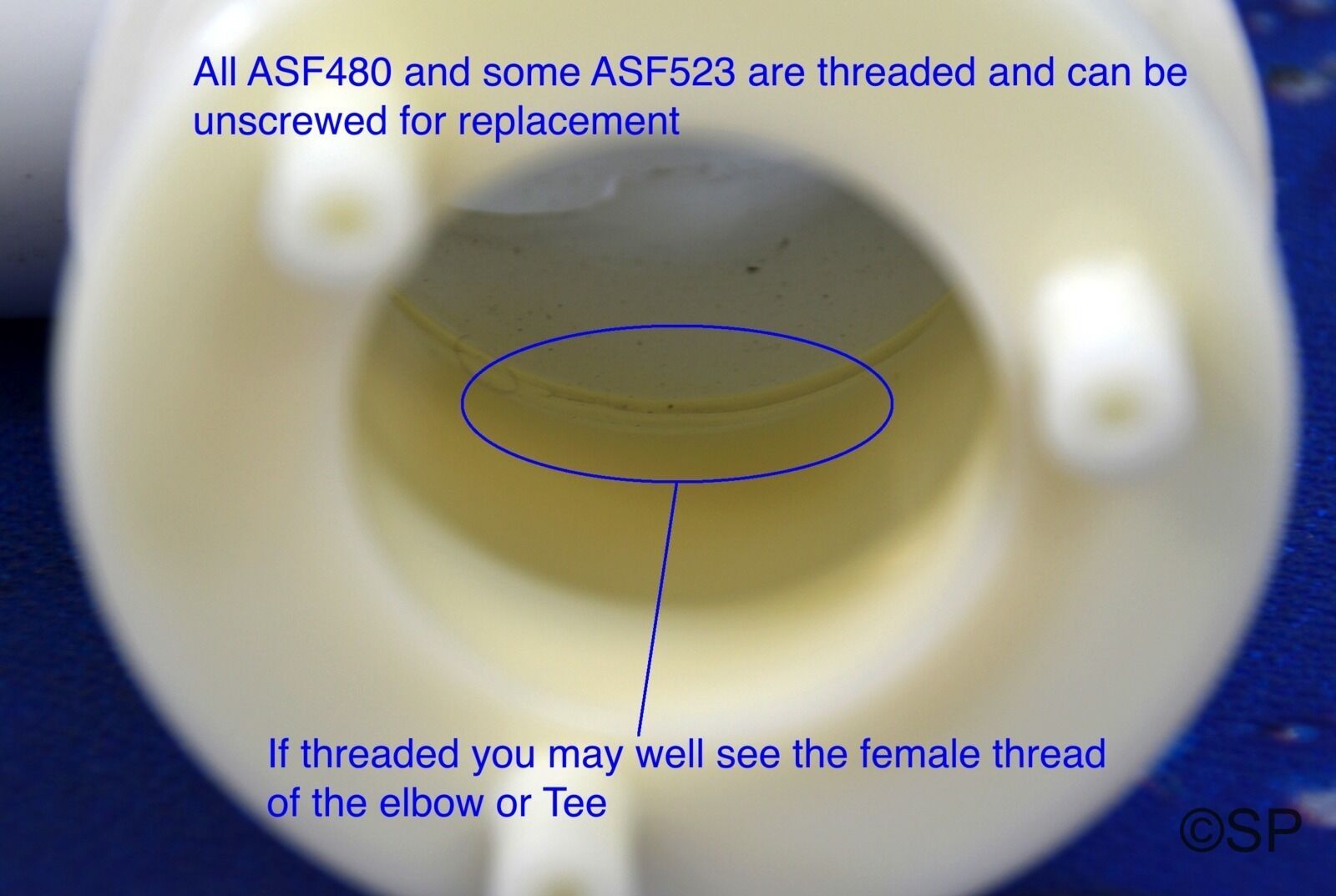

Please note - there are 2 different thread sizes originally used for this design suction cover.

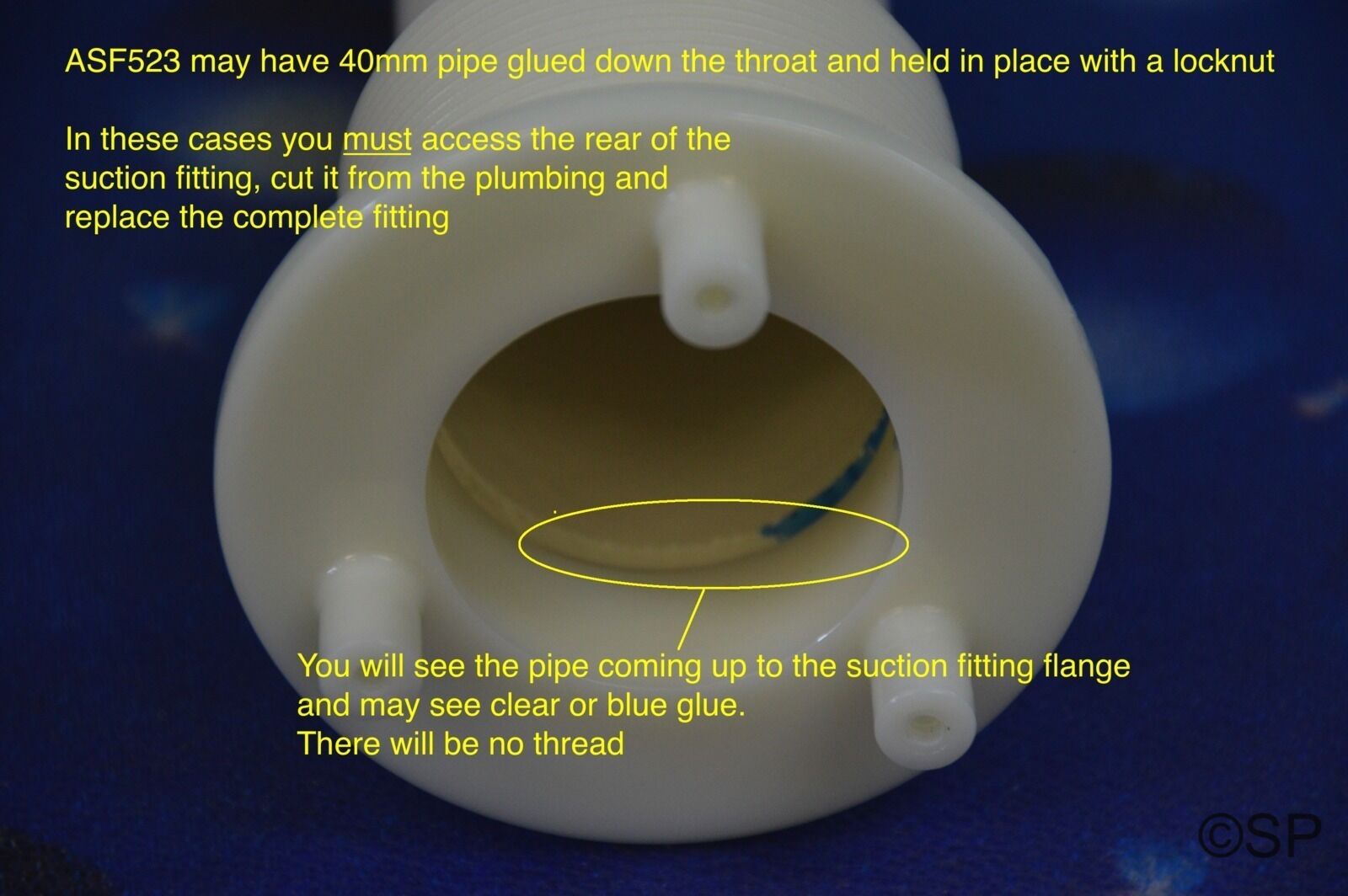

If yours has the larger 50mm thread (approx 60mm OD) you will also need to purchase asf523 if this part is required and not just the chrome cover.
The Chrome version of this suction is available exclusively from Australian Spa Parts as the manufacturer no longer offers these suctions with chrome finish.
Chrome is a coating applied through electrolysis to a base material such as brass or plastic.
These parts are chromed plastic
