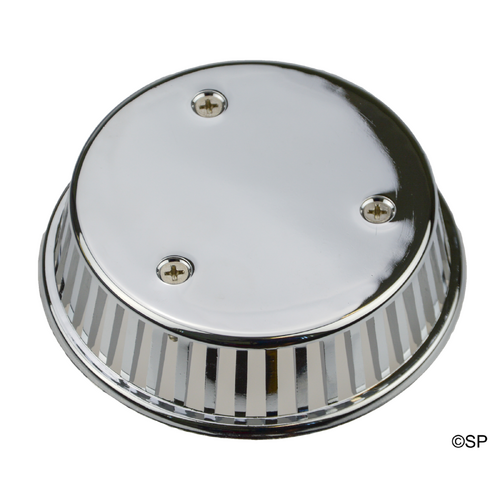

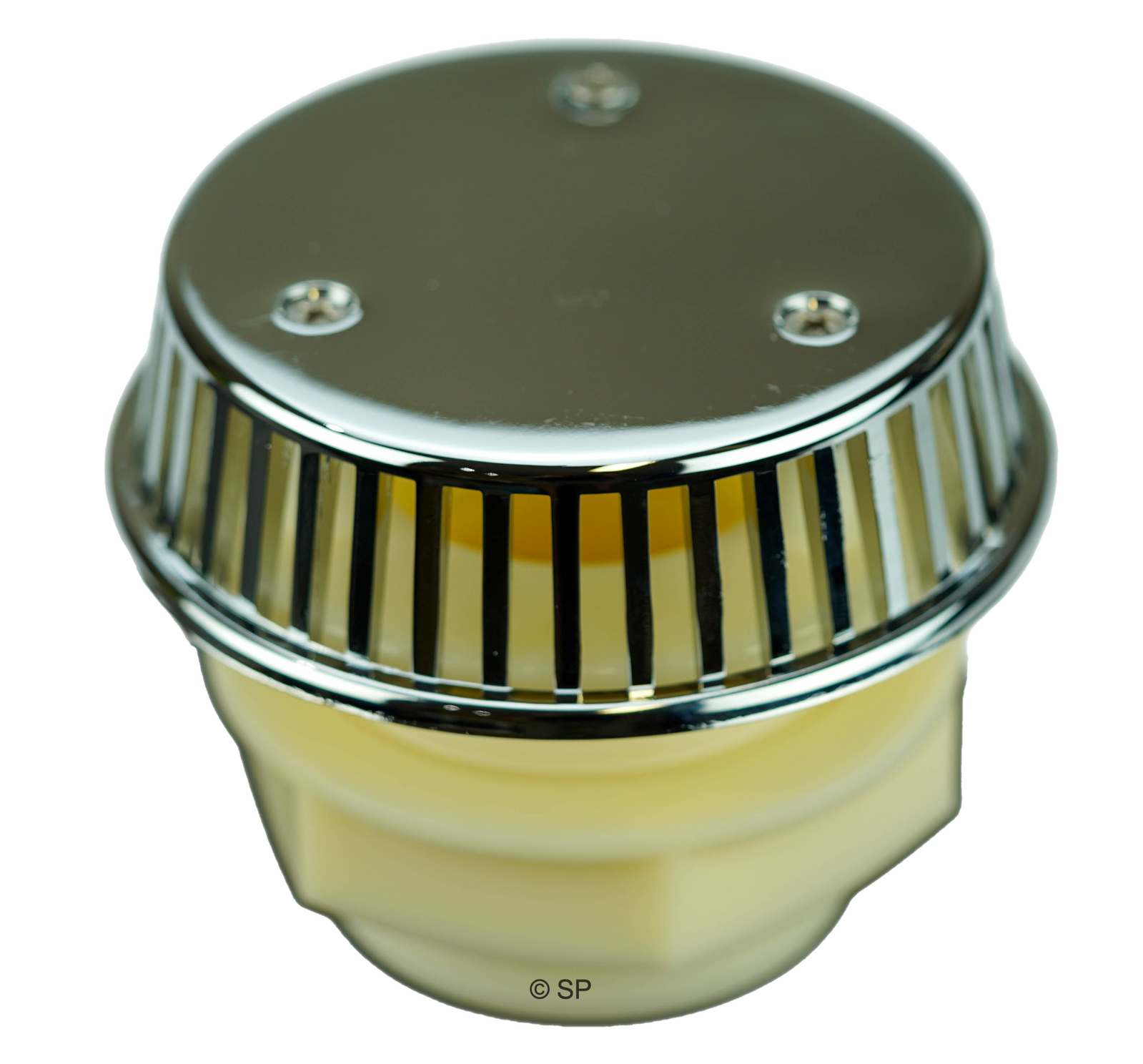

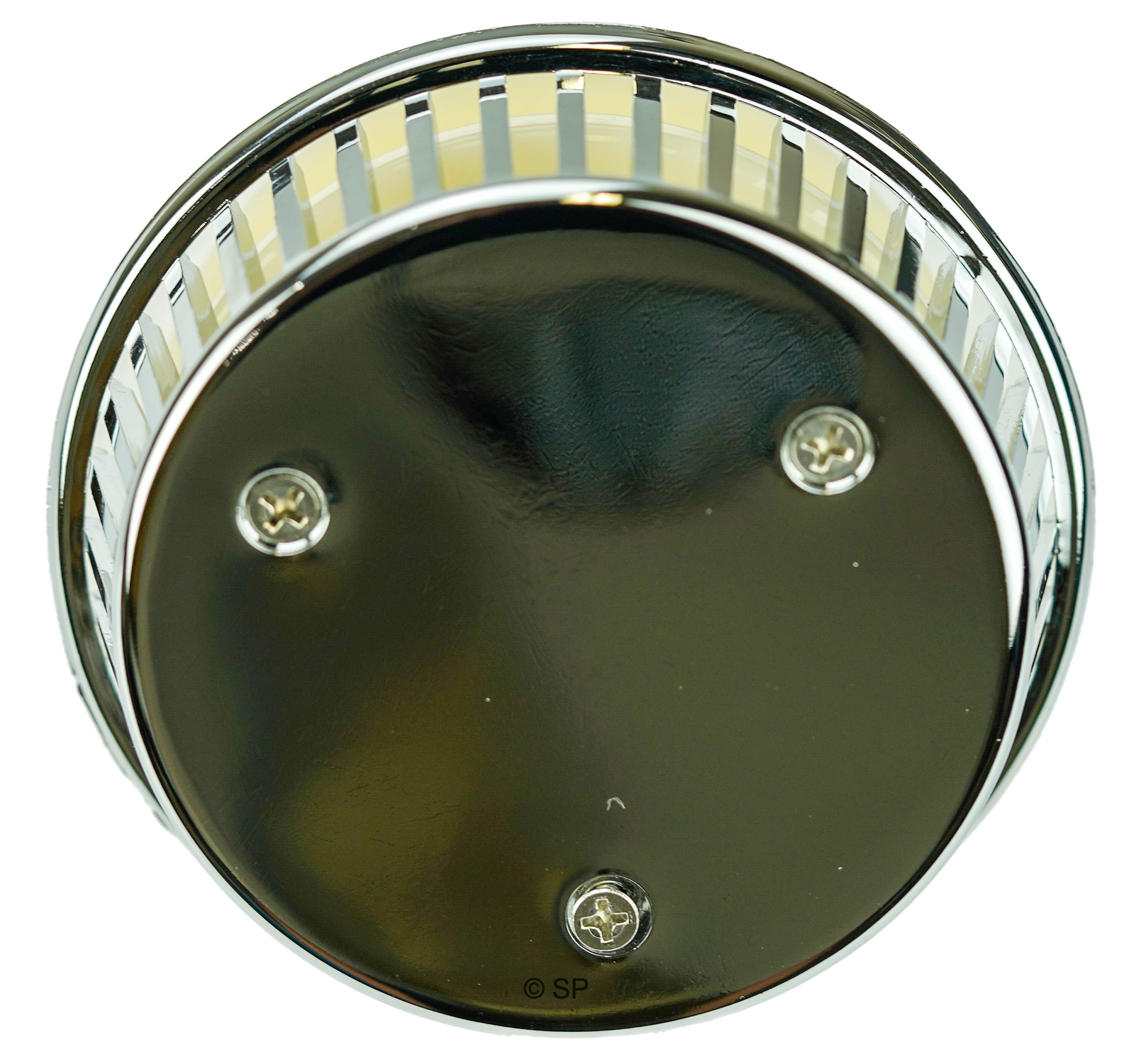

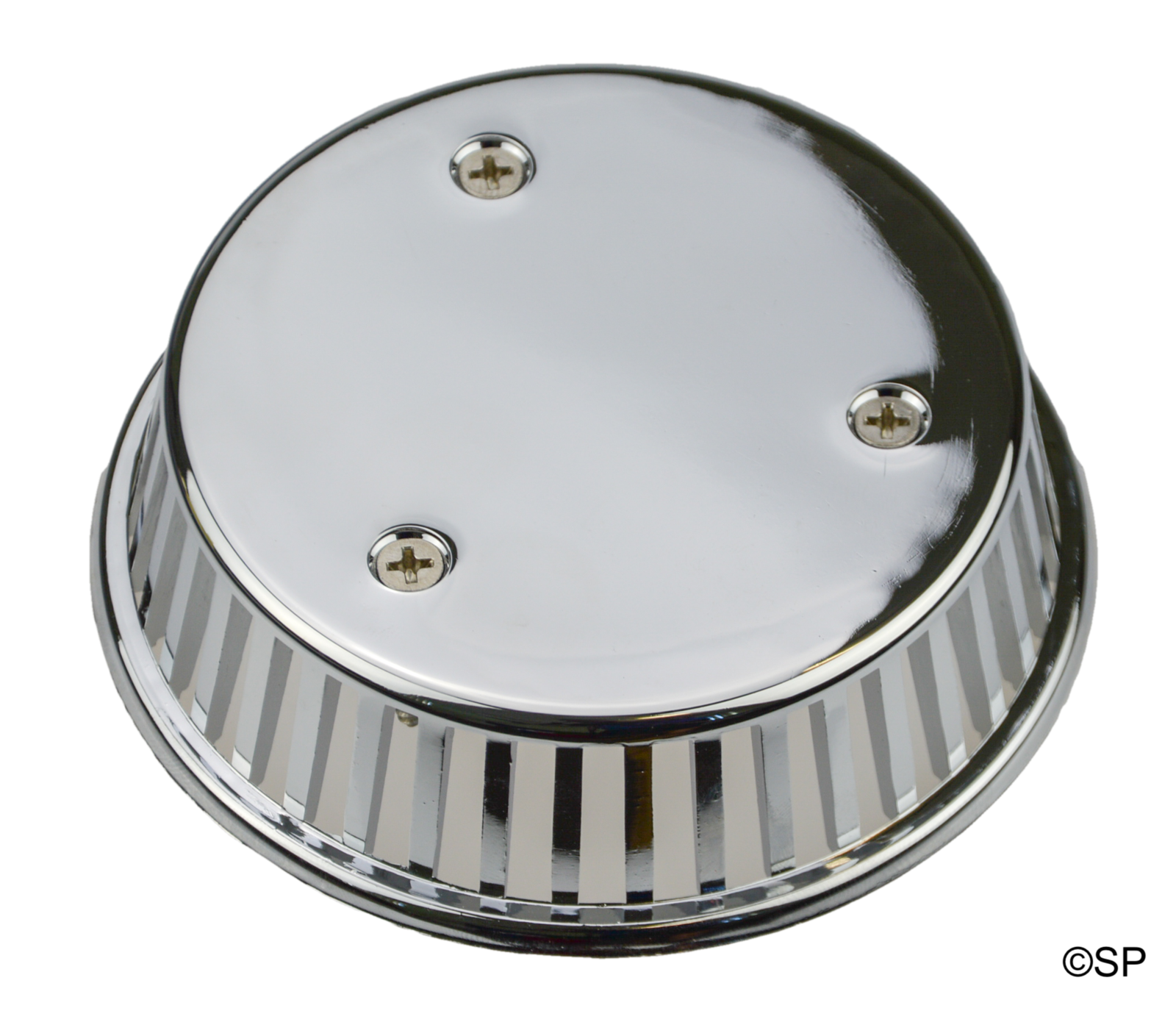

S&P Chrome plated ABS Plastic Spa Bath Suction Cover - 40mm socket

S&P Chrome spa bath suction
Replaces many spa bath suctions for chrome upgrade - replaces both plastic and metal suction covers with 3 screws from S&P and Onga - 60mm thread OD
S&P Supa Suction - CHROME - 50mm BSP thread (60mm OD thread)
85mm x 100mm OD faceplate diameter,
cover screws are 50mm apart

Threads into 50mm BSP faucet adaptor or elbow fittings, or any other female 50mm BSP fitting
Hole size required - 60mm Australian Approved flow rate is 192 litres per minute.
CAUTION - Most pumps exceed this flow rate. You may need to fit multiple suctions of this type if chosen.

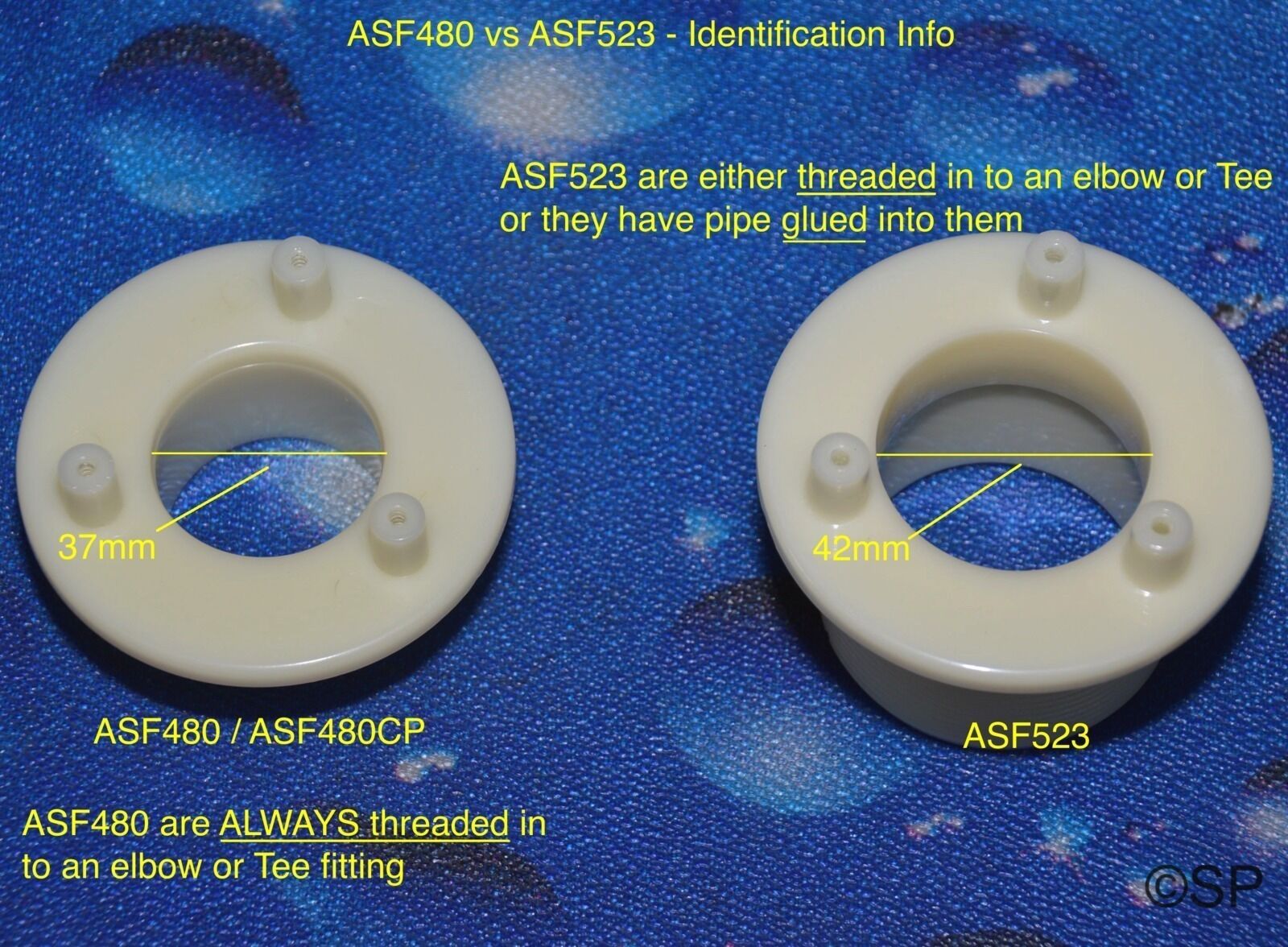

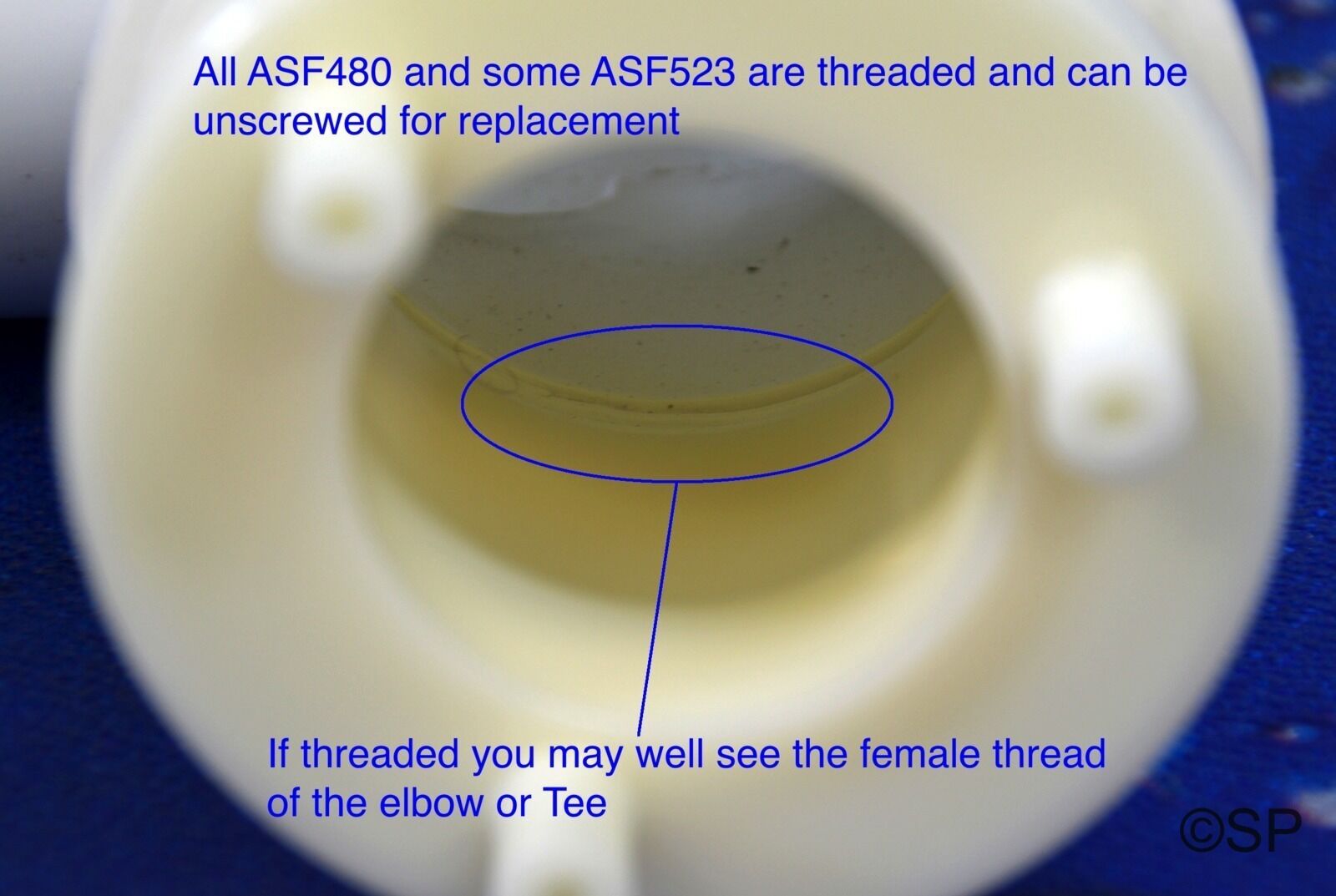

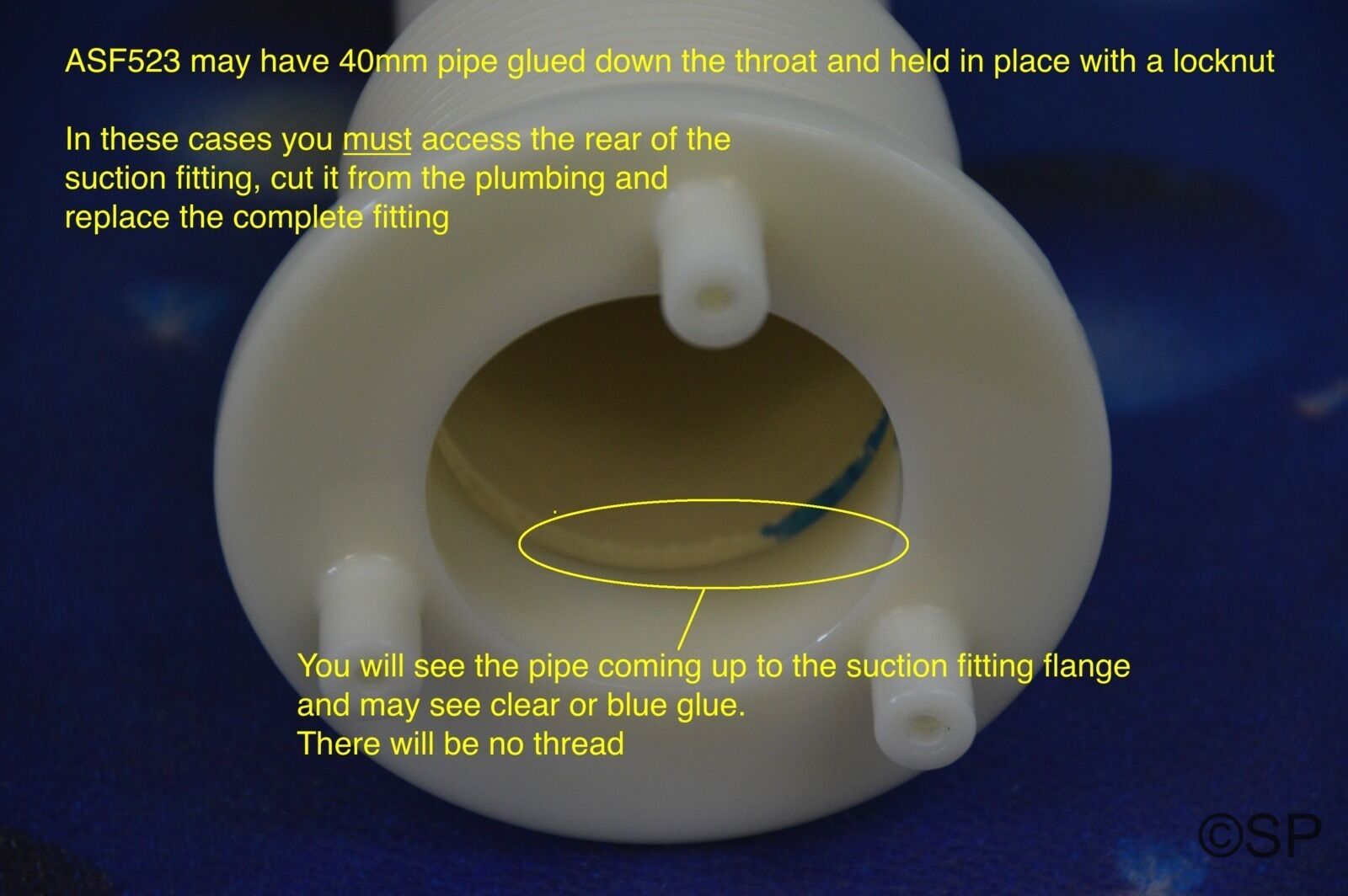

Please note - there are 2 different thread sizes originally used for this design suction cover.

If yours has the smaller 40mm thread (approx 47mm OD) you will need to purchase asf480cp

The Chrome version of this suction is available exclusively from Australian Spa Parts as the manufacturer no longer offers these suctions with chrome finish.
Chrome is a coating applied through electrolysis to a base material such as brass or plastic.
These parts are chromed plastic
