Australian Spa Parts - LX JA35 and LX JA50 spa circulation pump spare parts


LX JA series spa circulation pump parts including:

mechanical seal, impeller, wet end are listed here

Chinese manufactured LX pumps are sold in Australia under brand names of LX, Spanet XS series and Spaquip QB series. Also on imported Sundance Spas and Jacuzzi Spas. Not all parts are cross compatable. LX parts listed here suit LX pumps we sell.

Listed below are LX parts that may have been used. Check part numbers stamped on parts AND dimensions / descriptions to compare.
MANY LX PARTS HAVE THE SAME PART NUMBER BUT ARE COMPLETELY DIFFERENT - ENSURE YOU ORDER CORRECTLY

ie at least 3 different impeller designs / sizes have an identical part number - not cross compatable. The same goes for other components.

LX pump wetend parts are NOT interchangeable with the very similar parts from the Aquaflo XP2 range and Waterway Executive range - tolerances, bolt threads, motor shaft thread and designs differ.

All parts listed below suit the LX range of pumps that Australian Spa Parts imports & sells.

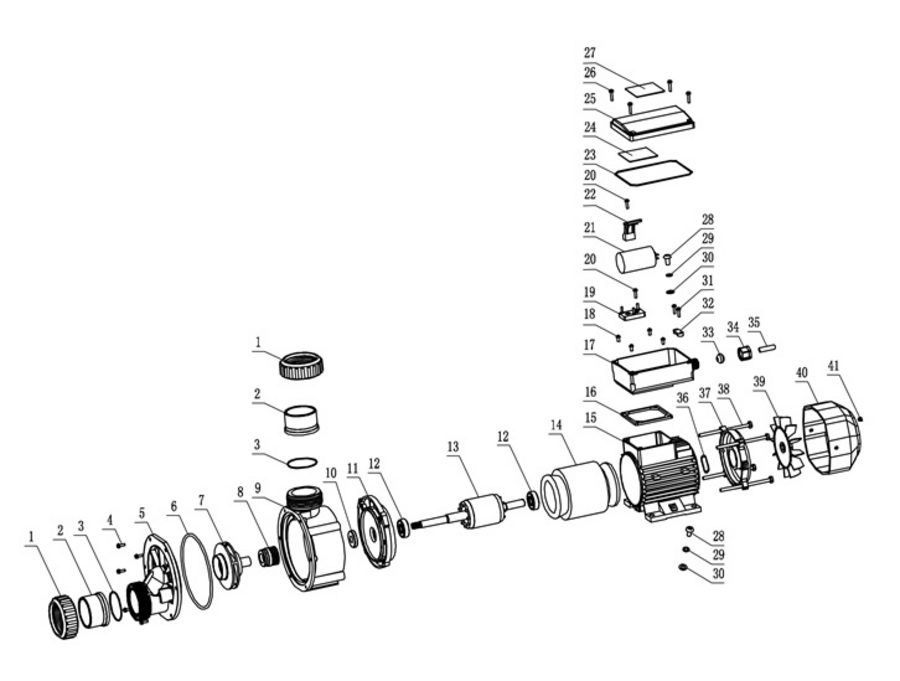

LX JA35 and JA50 spa pump exploded diagram
Parts 1-9, & 21 are carried as spare parts



LX Whirlpool & Hydromassage Carbon / Ceramic Mechanical Seal Assembly

SKU: lxlp-002

LX Whirlpool LP, WP, EA, TDA, JA series pump mechanical seal assembly - Suits all generic post 2007 LX Whirlpool & Hydromassage pumps except: DH1.0 pumps pre 2017 Sundance/Jacuzzi LP or WP series pumps that ...

540 In Stock

$39.60

LX Whirlpool & Hydromassage Carbon / Ceramic Mechanical Seal Assembly - 10 PACK

SKU: lxlp-002-10

LX Whirlpool LP, WP, EA, TDA, JA series pump mechanical seal assembly Suits post 2007: LX LP200, LP250, LP300 LX WP200, WP250, WP300 LX TDA100, TDA150, TDA200 LX JA35, JA50, JA200 LX EA390, EA450 Post 20...

54 In Stock

$352.00

LX Whirlpool Hydromassage JA/LP/WP/TDA/EA Series Silicon Carbide Mechanical Seal Assembly

SKU: lxscscv

Premium Silicon Carbide LX Whirlpool Hydromassage JA, LP, WP, EA, TDA series pump mechanical seal assembly Suits LX JA35, JA50, LP200, WP300, TDA100, EA450Y etc. Also suits: Spaquip QB series pumps and ...

22 In Stock

$66.00

LX Whirlpool JA series JA35 & JA50 spa circulation pump body o-ring

SKU: lxja50-004

LX Whirlpool JA series circulation pump replacement body o-ring. Suits models JA35, JA50, JA75, JA100 ...

99 In Stock

$10.00

LX Whirlpool JA series spa pump complete wetend - 2.0hp

SKU: lxja200-003

LX Whirlpool JA200 single speed pump replacement complete wetend...

11 In Stock

$143.00

LX Whirlpool JA200 spa pump Impeller - 2.0hp

SKU: lxja200-001

LX Whirlpool JA200 2.0hp single speed pump replacement impeller 114mm diameter, 15mm internal vane width, 4 vanes...

37 In Stock

$33.00

LX Whirlpool JA35 / JA50 pump Capacitor - 7uF

SKU: lxcap7

LX pump motor capacitor - 7 uF for JA35 and JA50 pumps (and others) 34mm diameter x 55mm long CBB60 7uF 5% 50/60Hz, 450v...

12 In Stock

$17.00

LX Whirlpool JA35 spa circulation pump Impeller

SKU: lxja35-001

LX Whirlpool JA35 circulation pump replacement impeller 82mm OD x 7.5mm vane width x 5 vanes...

58 In Stock

$33.00

LX Whirlpool JA35 spa circulation pump Wet End Complete

SKU: lxja35-003

LX Whirlpool JA35 circulation pump replacement complete wetend. Includes pump body, faceplate, impeller, mechanical seal, body o-ring and faceplate bolts Ready to screw onto motor....

19 In Stock

$125.00

LX Whirlpool JA50 spa circulation pump Impeller

SKU: lxja50-001

LX Whirlpool JA50 circulation pump replacement impeller 95mm OD x 6mm vane width x 5 vanes...

1 In Stock

$30.00

LX Whirlpool JA50 spa circulation pump PPO Premium Impeller

SKU: lxja50-001-ppo

LX Whirlpool JA50 circulation pump replacement impeller - PPO 95mm OD x 6mm vane width x 5 vanes This impeller is manufactured from premium PPO material for better wear / longer life...

211 In Stock

$44.00

LX Whirlpool JA50 spa circulation pump Wet End Complete

SKU: lxja50-003

LX Whirlpool JA50 circulation pump replacement complete wetend. Includes pump body, faceplate, impeller, mechanical seal, body o-ring and faceplate bolts Ready to screw onto motor....

18 In Stock

$125.00

LX Whirlpool Pump / Blower Union Assembly 1.5"

SKU: lx15union

LX Whirlpool pump union assembly - suits all LX pump wetends except LP & WP series (which use 2" unions) USA 1.5" thread type. Suits LX APR air blowers. Will also suit Spanet XS-3C circ pumps. Suits LX mod...

42 In Stock

$12.00

LX Whirlpool Series Mechanical Seal Assembly - Pre 2017 DH1.0 and Pre 2007 JA, LP, WP series pumps - ceramic / carbon

SKU: lxja-003

LX Whirlpool pump mechanical seal assembly - suits: pre 2017 DH1.0 pumps and pre-2007 JA series, LP series and WP series pumps These seals are physically VERY different to those currently used - please ...

32 In Stock

$44.00

LX Whirlpool TDA200 / JA200 pump Capacitor - 25uF

SKU: lxcap25

LX pump motor capacitor - 25 uF for TDA200, JA200 pumps (and others) 44mm diameter x 75mm long CBB60 25uF 5% 50/60Hz, 450v...

19 In Stock

$30.00
