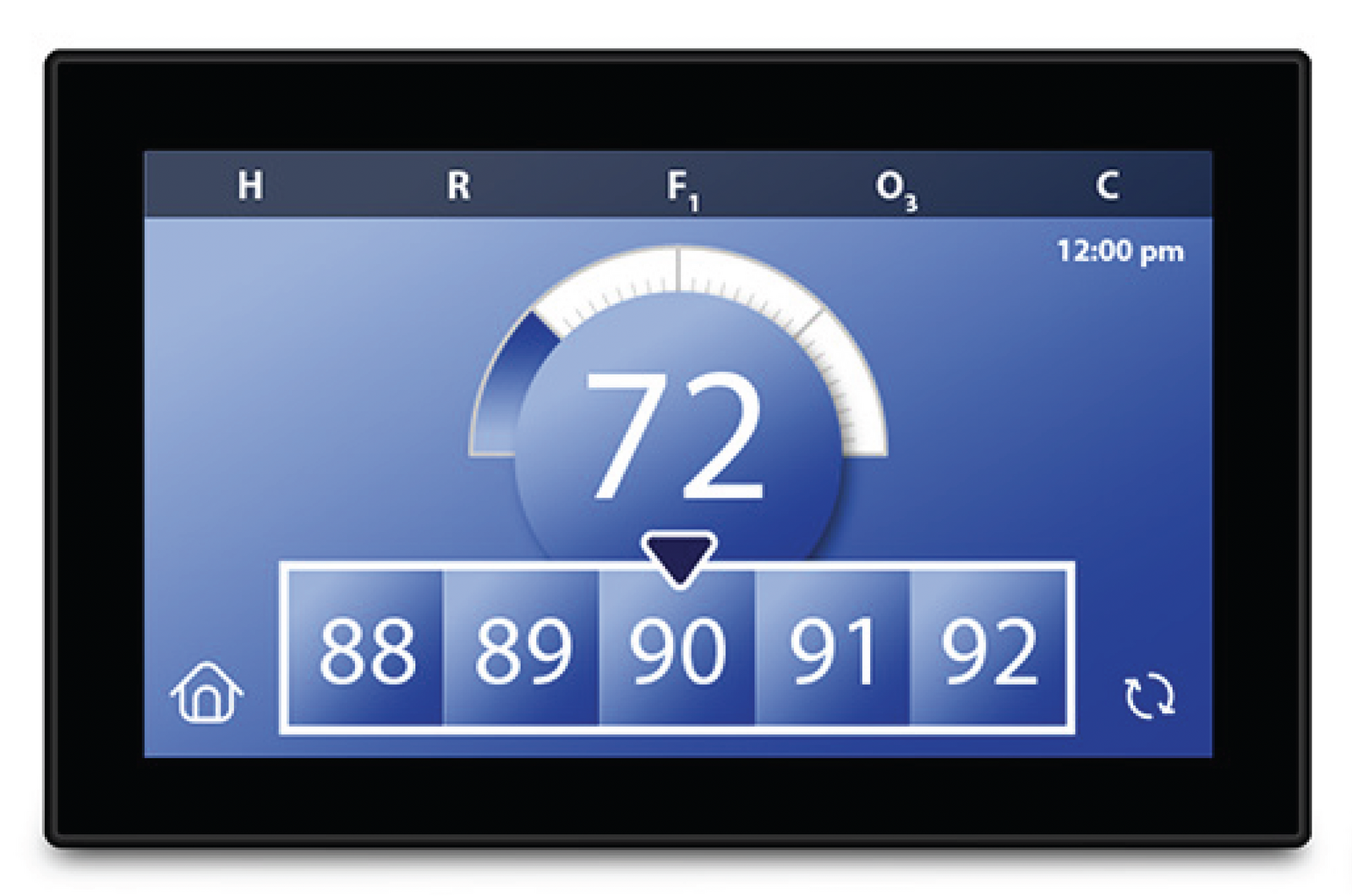

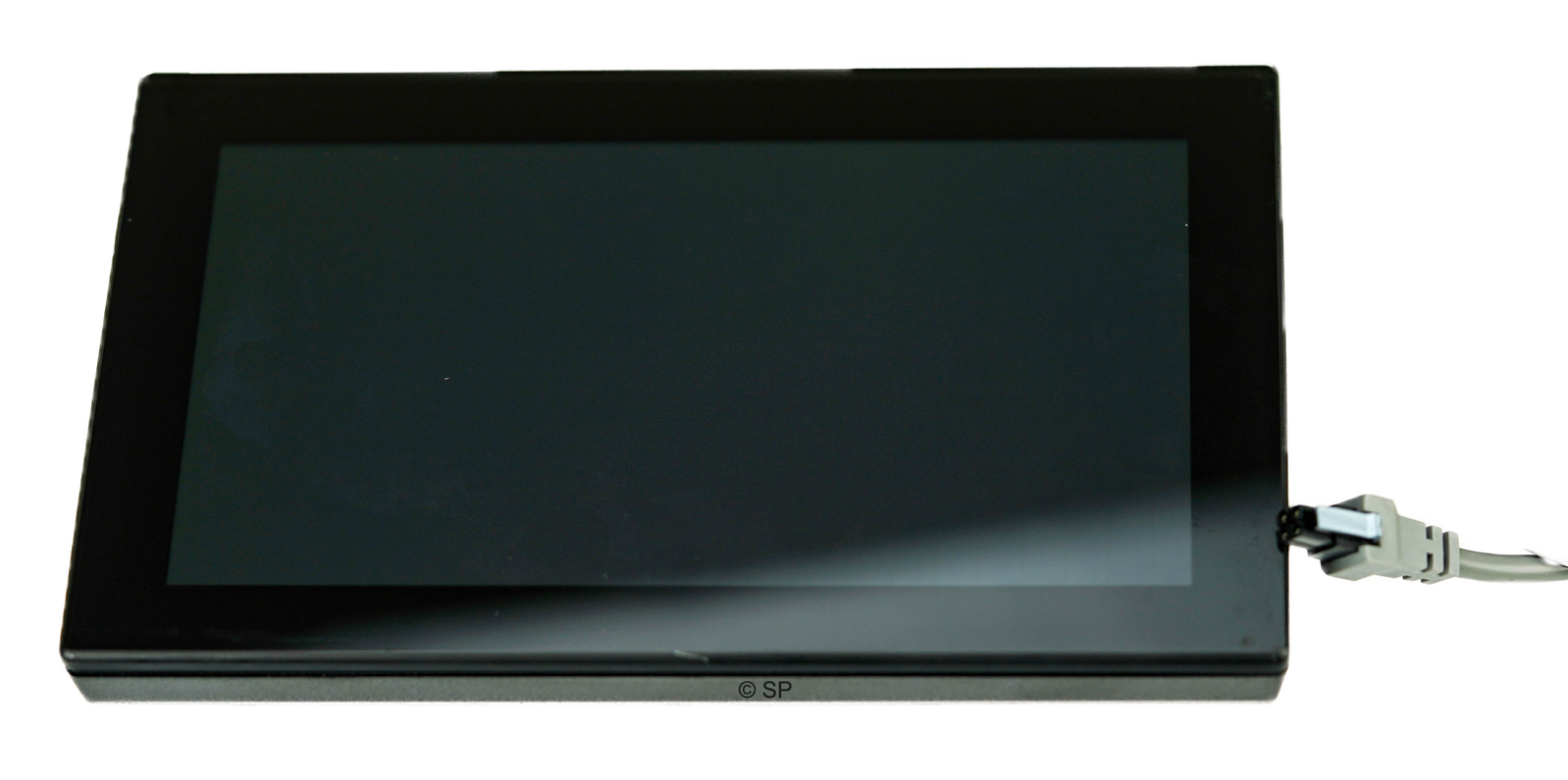

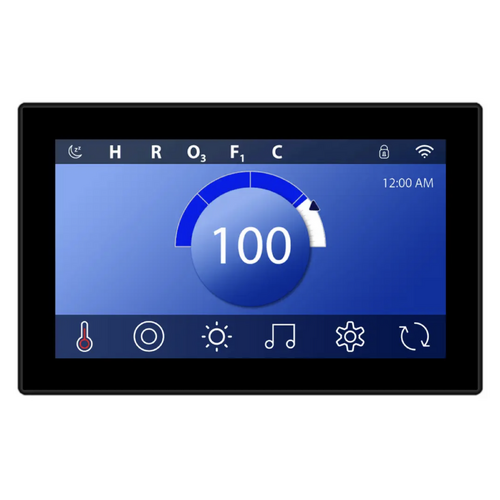

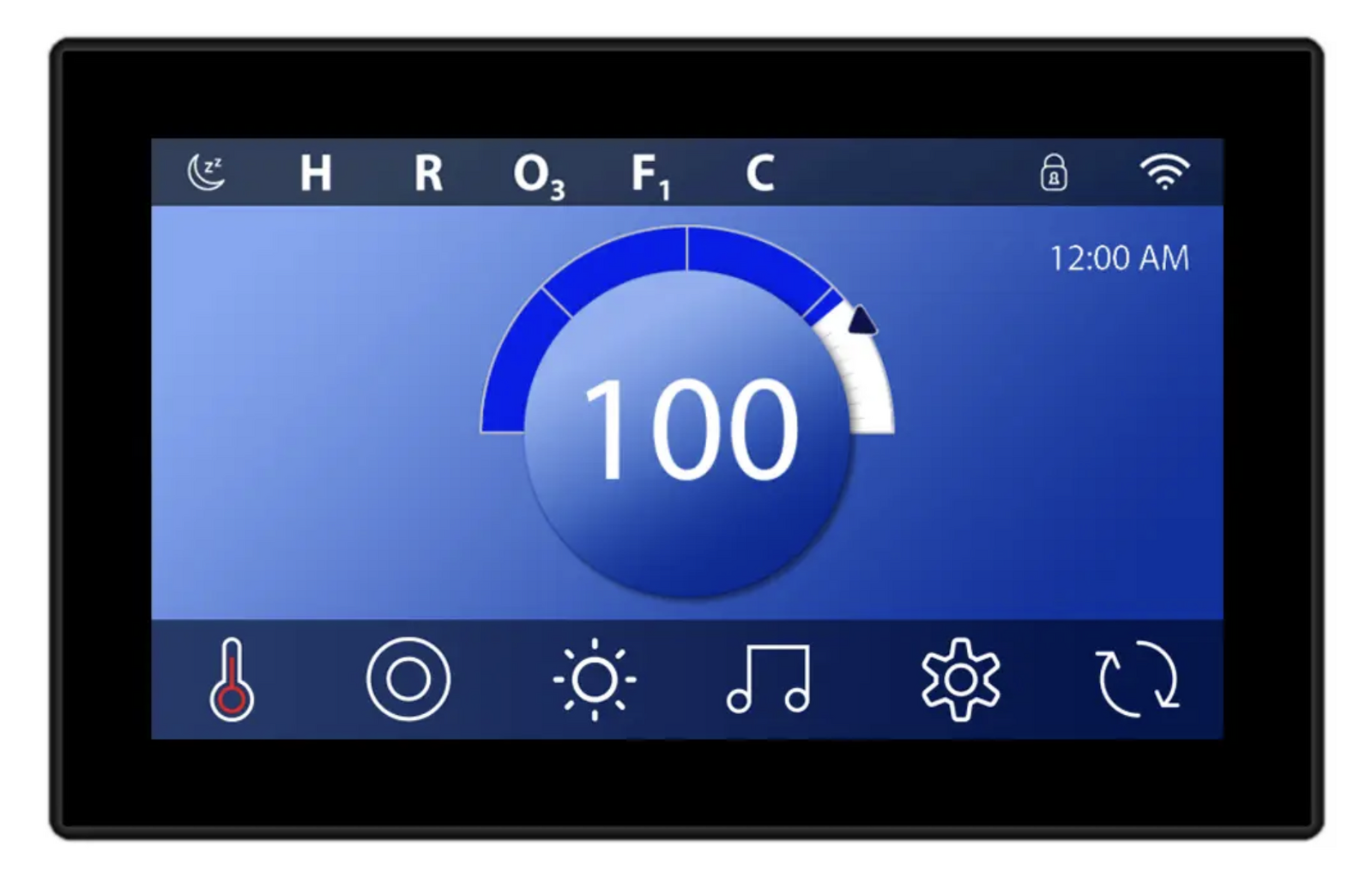

Balboa SpaTouch 3+ Touchscreen Spa Touchpad

Balboa SpaTouch 3+ spa touchpad - touch screen

7" Screen size - diagonal (154mm wide x 85mm high)

For use with Balboa BP series spa packs

184mm x 115mm
hole required 128mm x 83mm

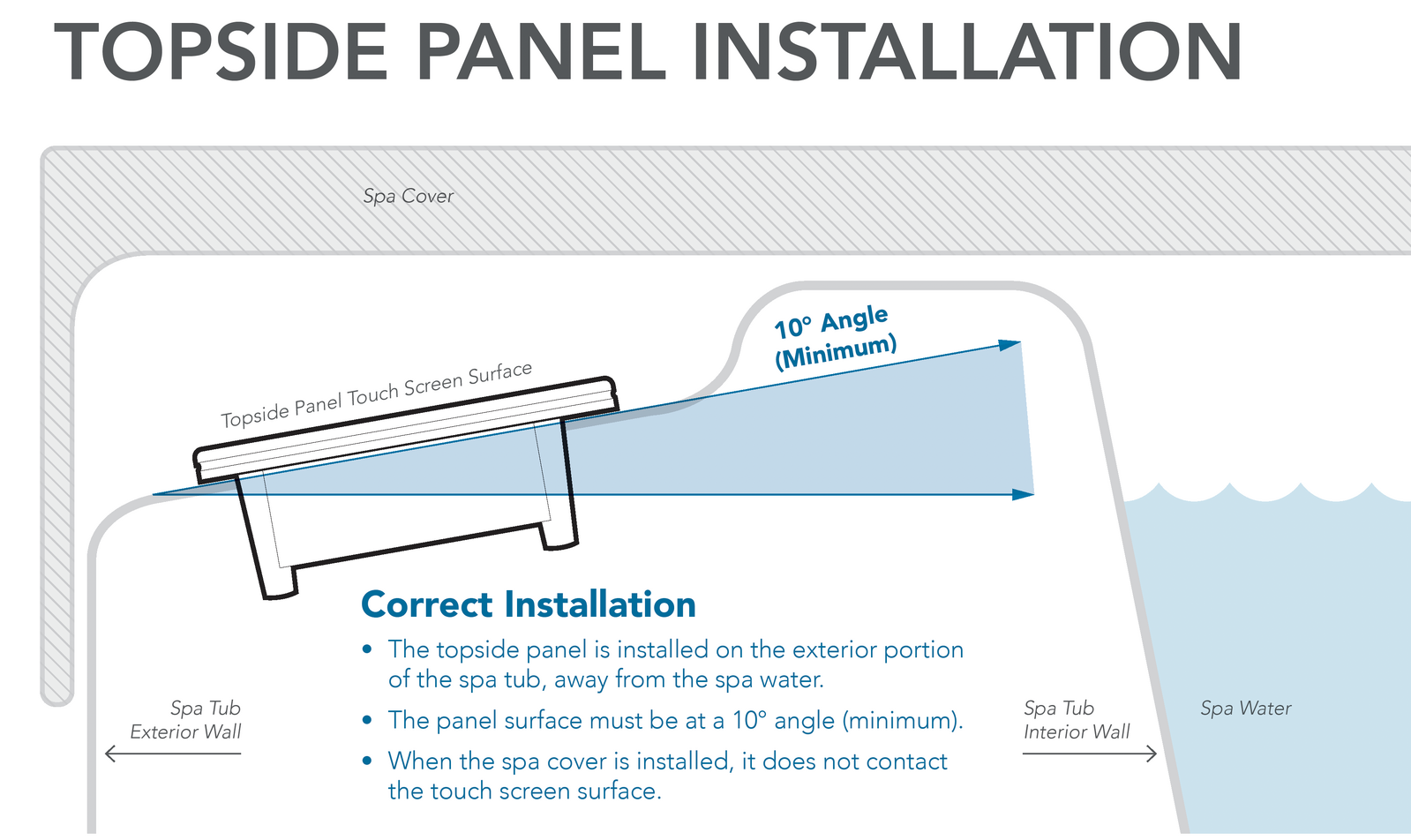

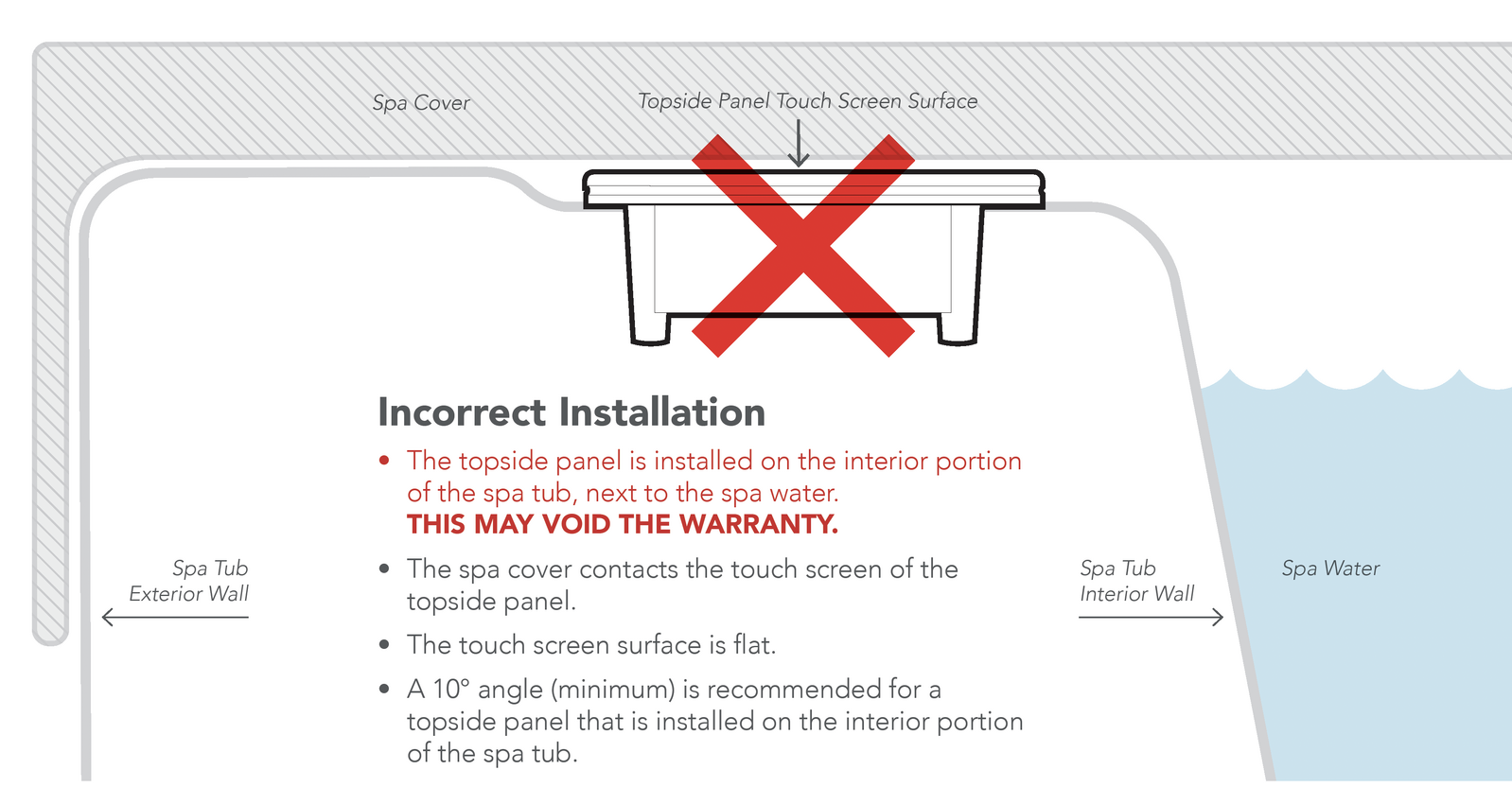

3mm thick glass top - overall height above the spa shell is 16mm - ensure its positioned so it is not in contact with the spa cover
Do not install in spa moisture zone

Do not install/fit where there is a risk of excess pressure applied to the screen - ie do not place spa steps near the touchpad, to prevent a user standing or falling onto it, to minimise risk of damage.
