LX Whirlpool TDA 200 spa pump - 2.0hp

$506.00
Sold Out

SKU:
lxtda200
Brand:
LX
Shipping:
Calculated at checkout

Plug & Lead Type


Product Description

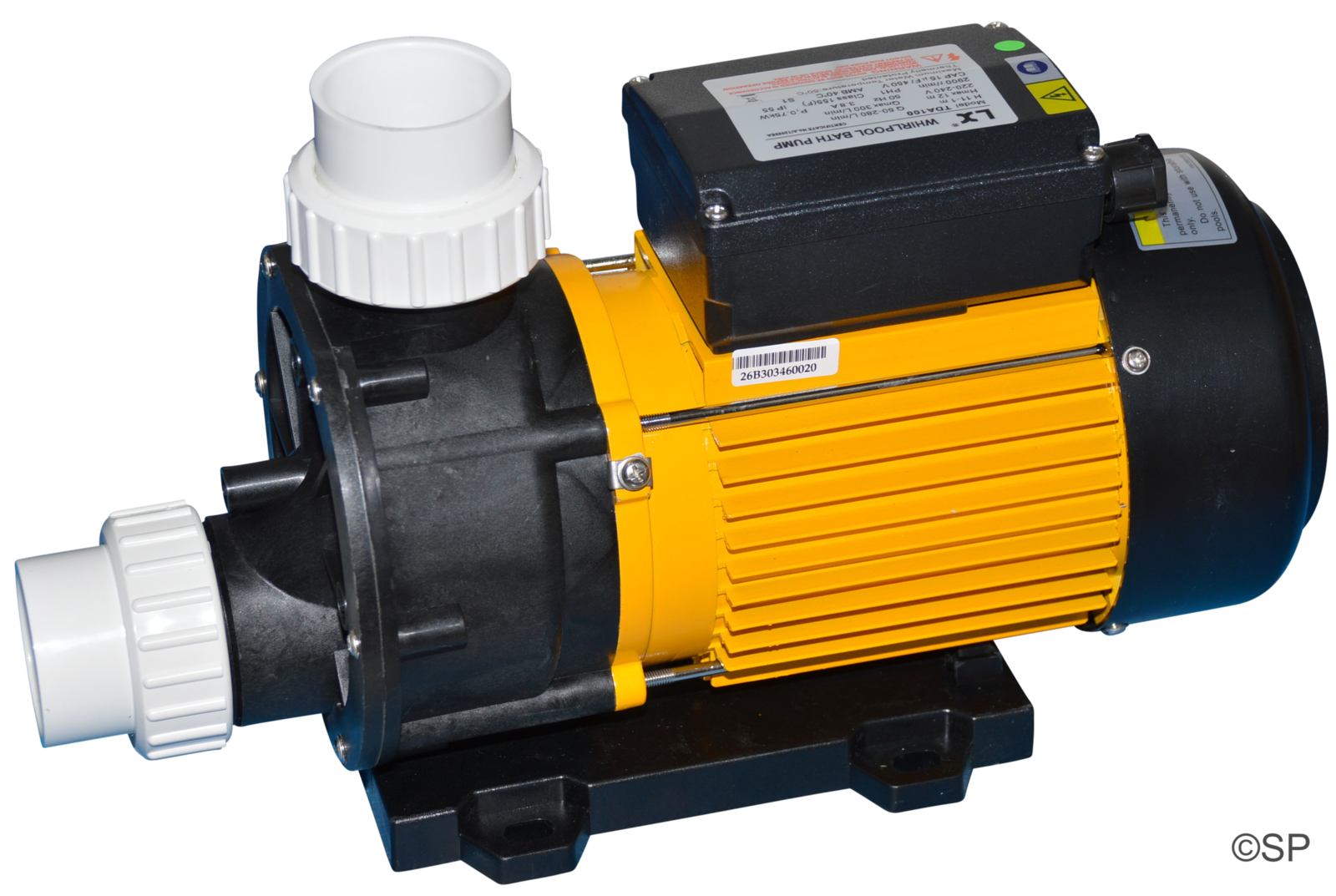

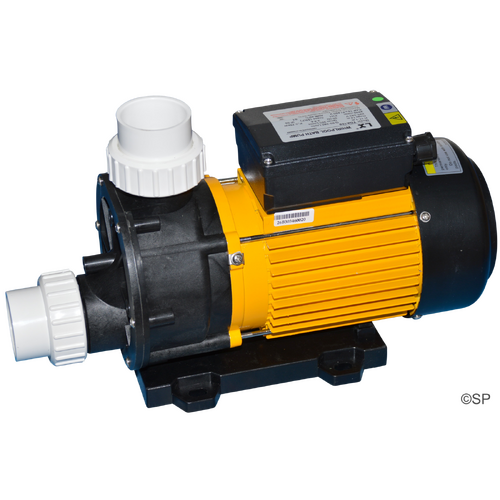

LX Whirlpool TDA-200 spa jet pump with top centre discharge -

PLUG & LEAD TYPE - See here to Identify the type required

Perfect replacement for selected 2.0hp spa pumps that have become obsolete over the years - this pump can be used to replace the following 2.0hp spa pumps:
Existing TDA200 on Chinese imported spas Spaquip Monster plus others
*Note - most 2hp pumps used in Australia are 2" / 50mm plumbed with side discharge designed wetends such as Spaquip Maxiflow, Spaquip QB, Waterway Executive, Aquaflo XP2 - the TDA 2.0hp pump is NOT suitable to replace these as performance is not equivalent.
2.0 hp pumps are suited to spas fitted with 8-10 water jets requiring a total flow rate max. of 300 lpm
Also used on numerous Chinese manufactured / imported spas
The pre-fitted with AMP cord to suit Aeware in.ye and Balboa, AMP plug on the pump does NOT suit Spanet and Spaquip controllers. An alternative cord with overmoulded plug is required at additional cost or re-use the original cord.
Supplied with 40mm / 1.5" unions.
This is a self draining pump so is also suitable for use as a spa 'bath' pump
230v, 50Hz, 2.0hp, 1500w
2 year parts only warranty on LX pumps
