spatex Auto Off Timer Switch with White electronic 4 button touchpad - electronic - 1 x 10A output

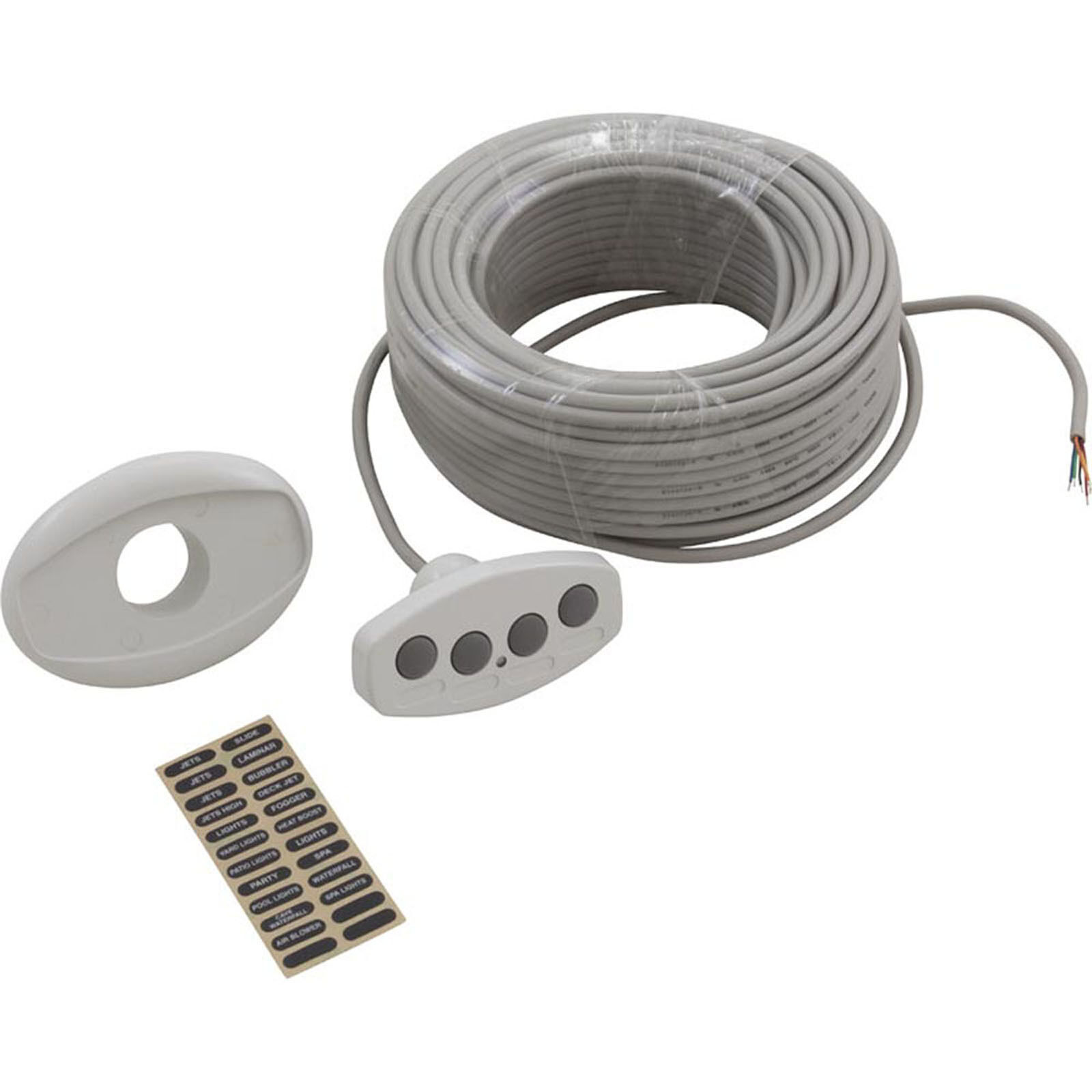

White 1 - 4 button universal touchpad with momentary switch buttons - Can be utilised for 1, 2, 3 or 4 functions (seperate additional sx-AOT - Auto Off Timer control box required for each additional output)
LED lamp provides positive feedback when button is pressed.

Electronic airswitch alternative 1-4 output

Supplied with stickers to mark button function.

Can be used on in-ground or above ground spas, installed directly into the ground/pavers etc, or acrylic shell.
Resin filled rear of touchpad for water proofing from below.

Touchpad Dimensions
Without bezel 82mm x 42mm x 13mm high - 25mm hole required. (Can self align slip fit 25mm pressure pipe.)
With bezel 90mm x 63mm x 17mm high - 30mm hole required. (silicon touchpad to bezel)
45m / 150' cable length supports extremely long runs

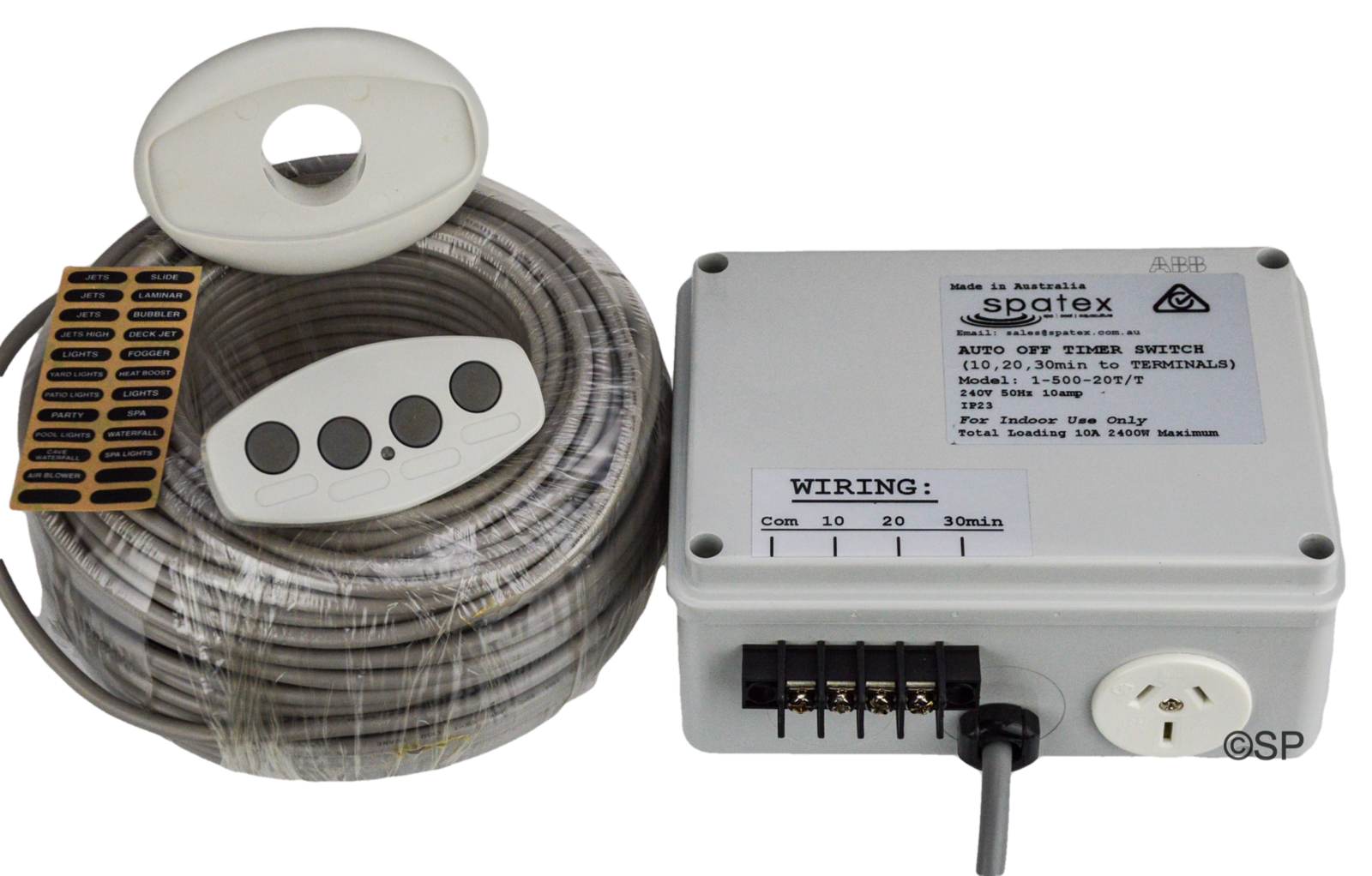

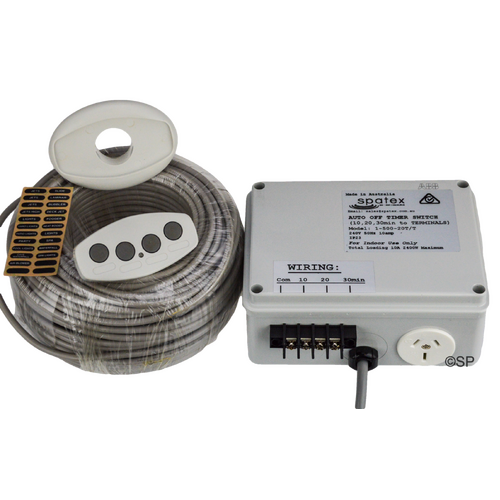

spatex electronic auto off timer control box.
Supplied with time off delay function. Select the time required wiht the internal logic jumper - supplied set to 10 mins.

Wiring connections:
Com - Common / ORANGE wire
10, 20 or 30 - RED wire - Button 1

For a second, third and fourth AOT control box the connections are:
Com - ORANGE wire looped from AOT control box 1 to each subsequent AOT control box
10, 20, 30 - YELLOW wire - Button 2
10, 20, 30 - GREEN wire - Button 3
10, 20, 30 - BLUE wire - Button 4

Recommended time off delays:
Air blowers - 10 min
Water pumps 20 or 30 min

If using additional outputs/AOT control boxes (sold separately) the common wire needs to link/loop between the Com terminals on each AOT control box.
The 2nd, 3rd and 4th button switch wires connect to the switch terminal of each successive AOT box.
