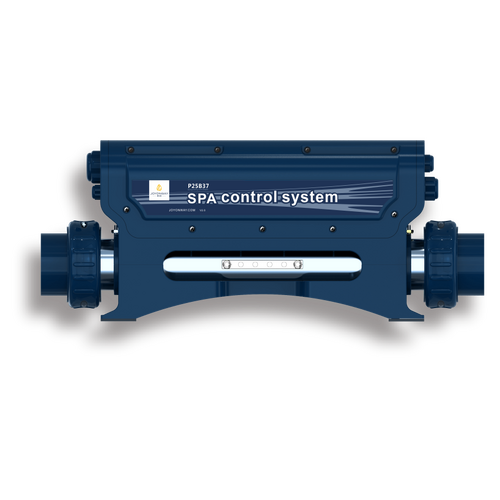

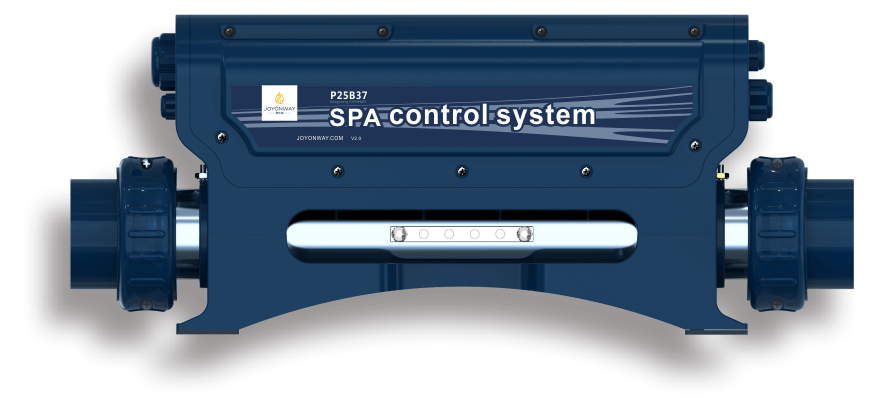

Joyonway P25B37 Spa Control System Pack with 3kw heater

Joyonway P25B37 spa control pack
3kw heater

Can control:
2 speed pump 1 or 1 speed pump 1 with circulation pump,
Air blower,
Ozone,
Light.

Jet pump - 10A max load
Circ pump 2.5A max load
Blower 5A max load
Light 12v, 15w max load

220-240v, 50/60Hz, 32A max single phase
400-415v, 50/60Hz, 16A max three phase

Works with colour display touchpad - these have inline 4 pin plugs (sold separately):
PB554,
PB555,
PB20B29 (program B).
NB - touchpad used may limit output capability.

See pdf for installation instructions for your electrician.
If pump 1 is 2 speed, low speed is connected to the circulation pump terminal as indicated

Used on the following spa brands and others:
Jazzi
Sunspa
Direct Spas
NB. 2 speed pump wiring - Low speed wires to Circ Pump CN3 L, high speed to Pump CN1 L. Neutral and earth to Pump CN1 terminals.

Programming must be set PRIOR to connection any 2 speed pump.
