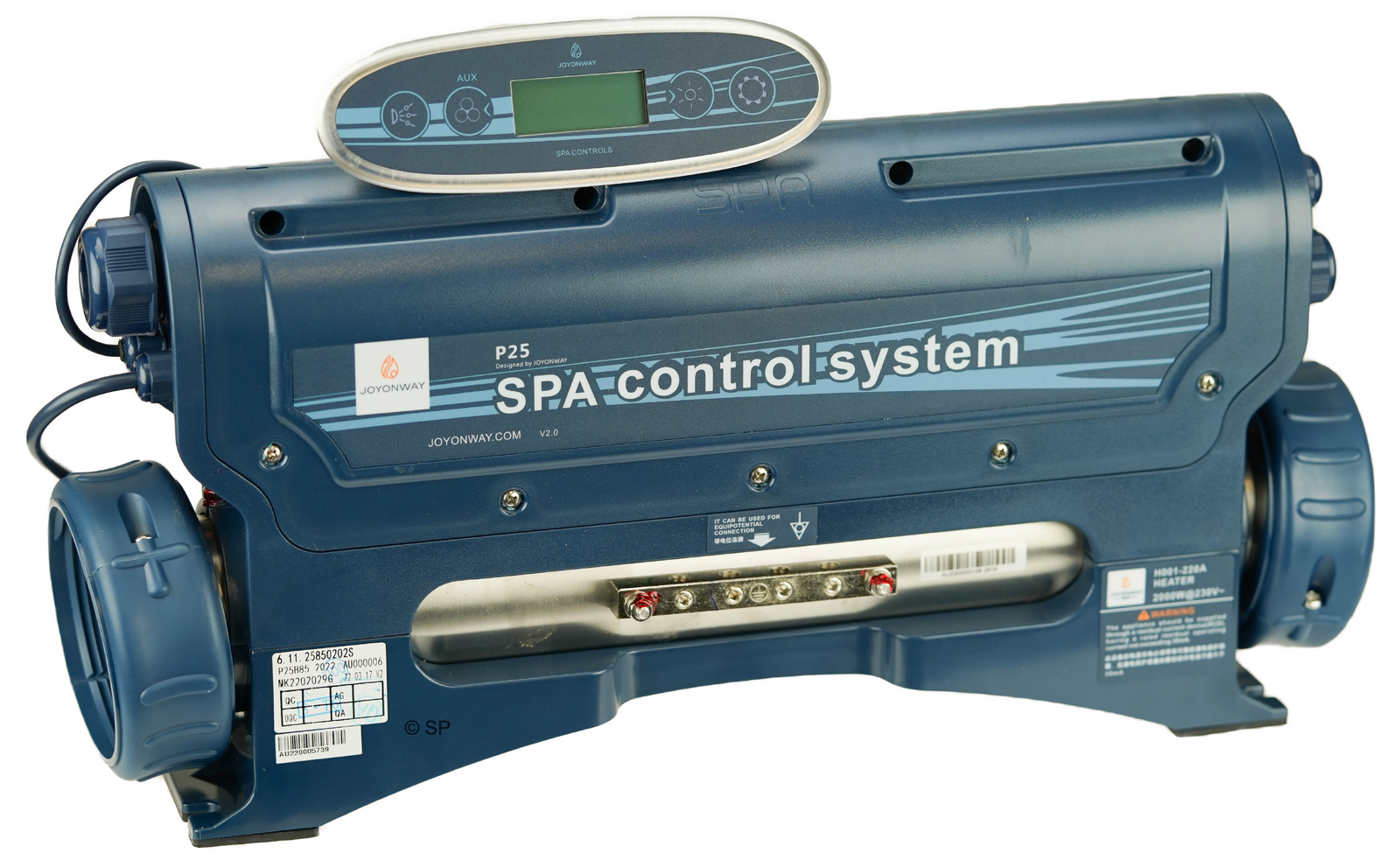

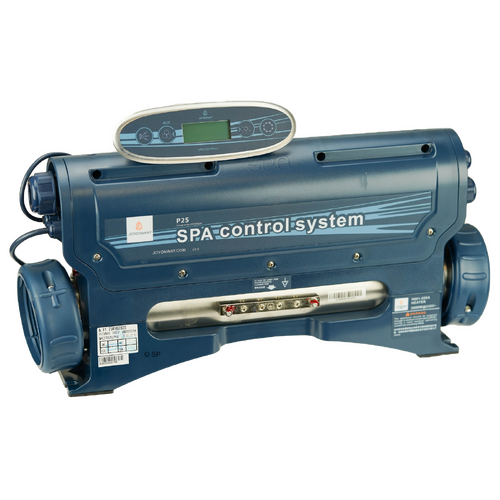

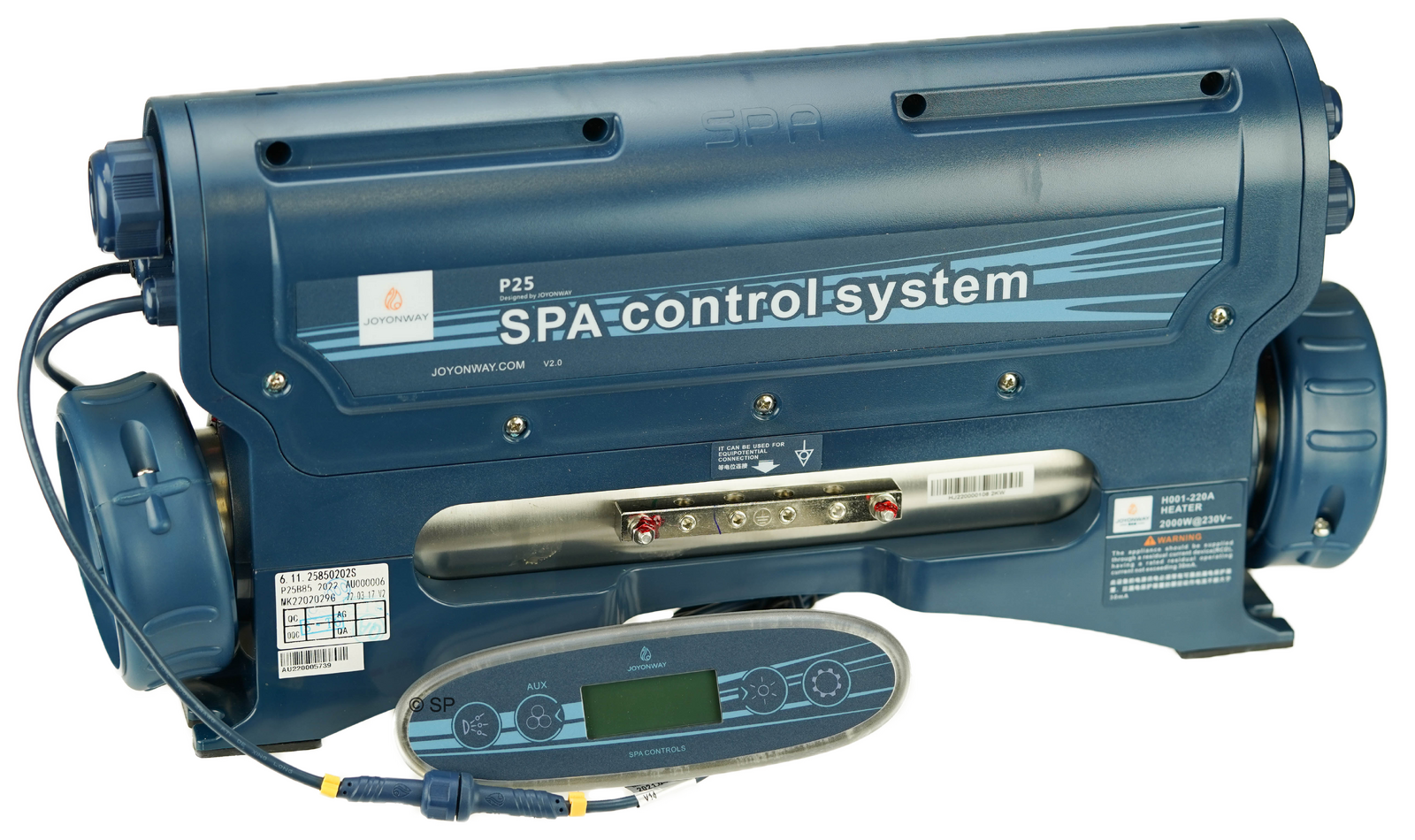

Joyonway P25B85-2022 Spa Control System Pack with 2kw heater AND PB557 touchpad

Joyonway P25B85-2022 spa control pack with PB557 oval touchpad.
2kw heater

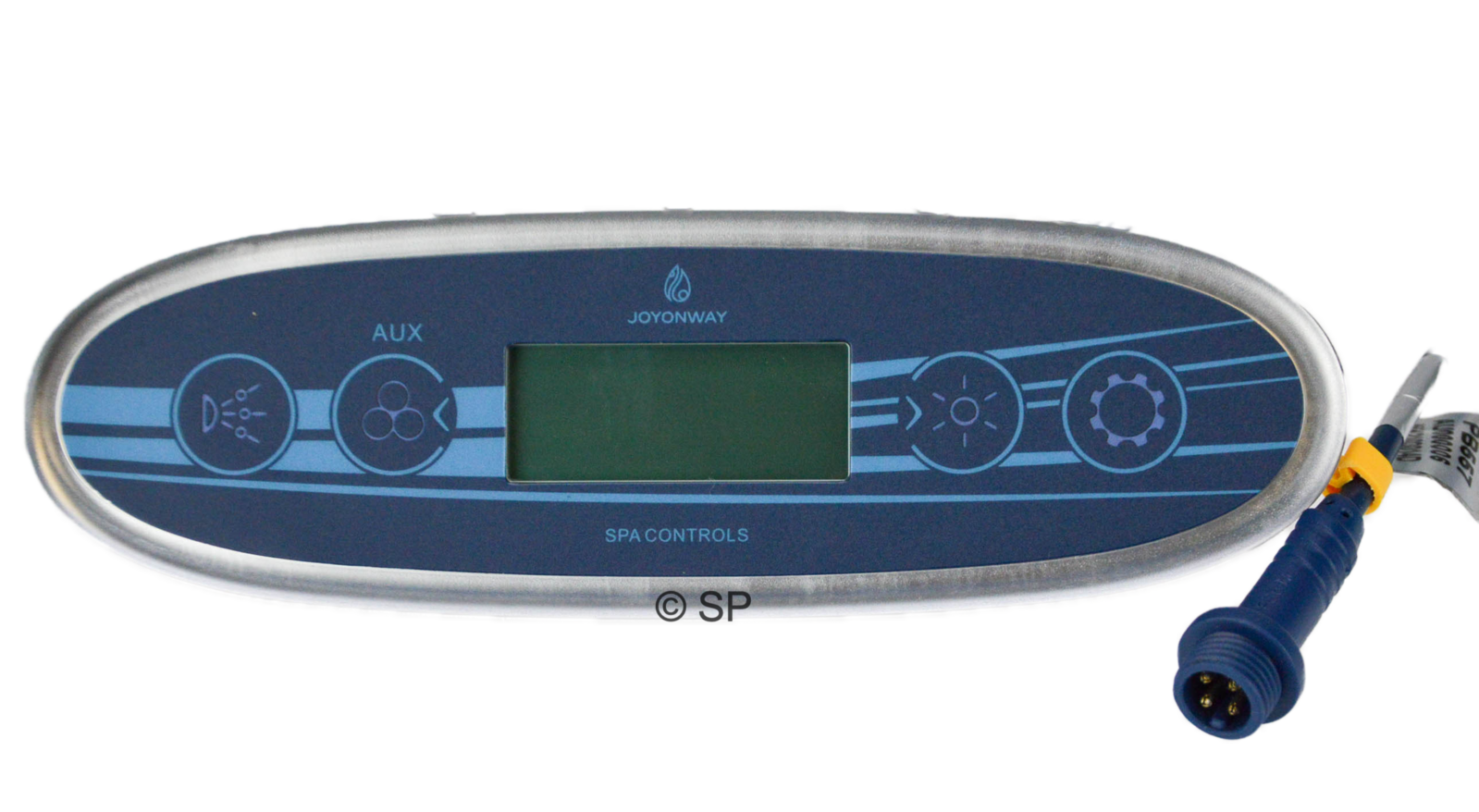

Supplied with oval PB557 LCD touchpad - the only touchpad version that will work with this pack
This pack does not support the Wifi Smartphone module

Can control:
1 speed pump 1 with circulation pump, or a 2 speed pump,
Air blower OR additional single speed jet pump,
Ozone,
Light.

Jet pump - 10A max load
Circ pump 2.5A max load
Blower/Pump 2 10A max load
Light 12v, 15w max load - 2 wire or 4 wire 12v DC

220-240v, 50/60Hz, 32A max single phase

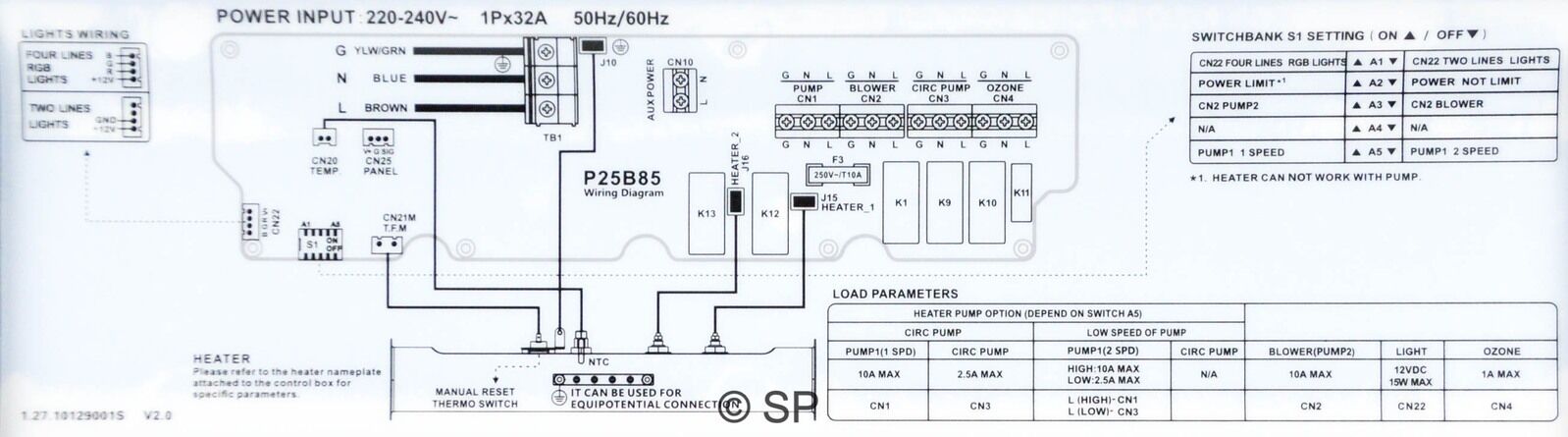

Dip switch settings as indicated on the inside of the box cover must be set correctly.

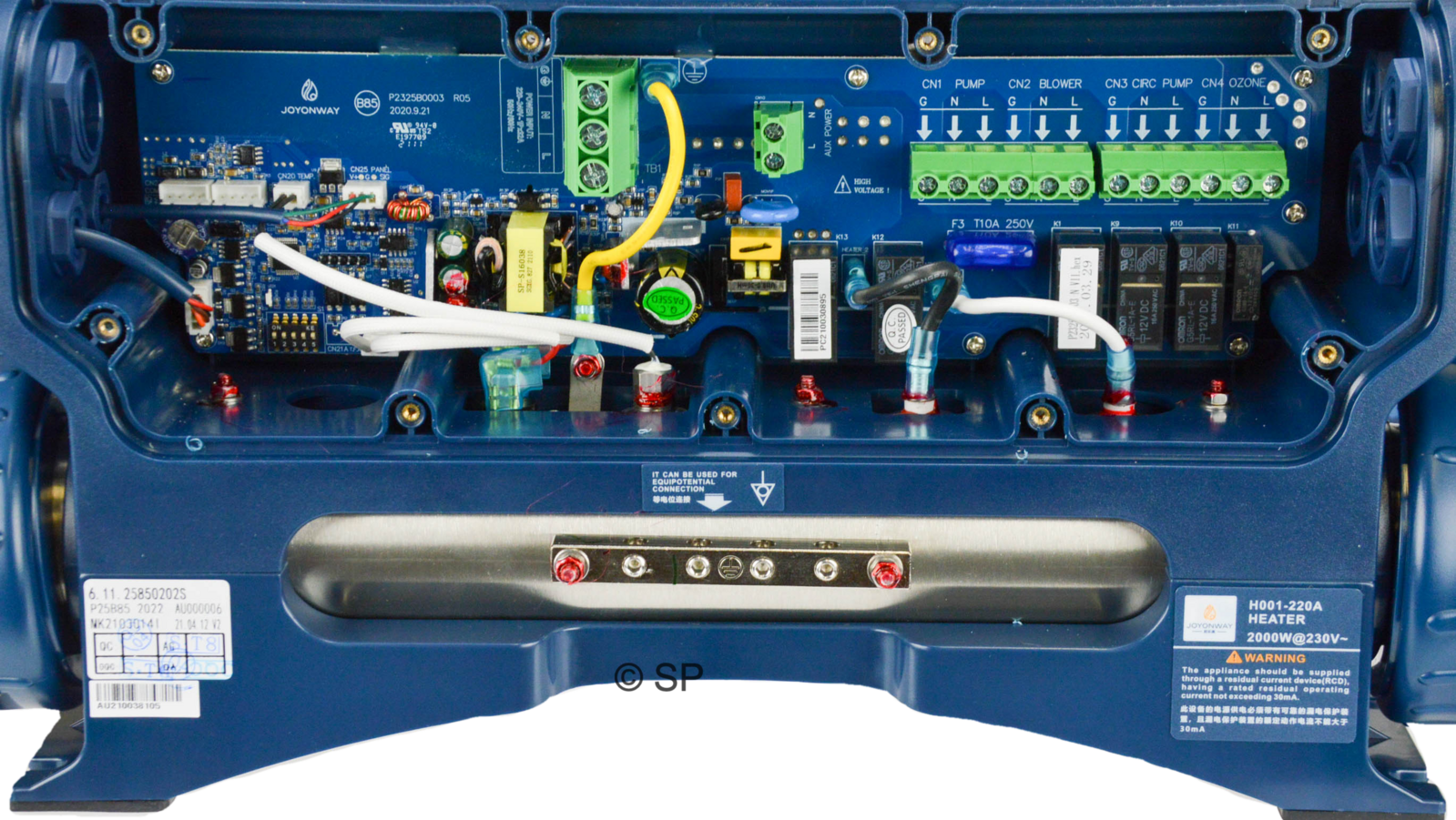

NB. 2 speed pump wiring - Low speed wires to Circ Pump CN3 L, high speed to Pump CN1 L. Neutral and earth to Pump CN1 terminals.

Programming must be set PRIOR to connection any 2 speed pump.
